ISD4004 Series
8 Voice Solutions in Silicon ™
1. Stresses above those listed may cause permanent
damage to the device. Exposure to the absolute
maximum ratings may affect device reliability.
Functional operation is not implied at these
conditions.
1. Case temperature.
2. V
CC
= V
CCA
= V
CCD.
3. V
SS
= V
SSA
= V
SSD
.
Table 4: Absolute Maximum Ratings
(Packaged Parts)
(1)
Condition Value
Junction temperature 150°C
Storage temperature range –65°C to +150°C
Voltage applied to any pin (V
SS
– 0.3 V) to
(V
CC
+ 0.3 V)
Voltage applied to MOSI, SCLK,
INT, RAC and SS pins (input current
limited to ± 20mA
(V
SS
– 1.0 V) to
5.5V
Lead temperature
(soldering – 10 seconds)
300°C
V
CC
– V
SS
–0.3 V to +7.0 V
Table 5: Operating Conditions
(Packaged Parts)
Condition Value
Commercial operating
temperature range
(1)
0°C to +70°C
Extended operating
temperature
(1)
–20°C to +70°C
Industrial operating
temperature
(1)
–40°C to +85°C
Supply voltage (V
CC
)
(2)
+2.7 V to +3.3 V
Ground voltage (V
SS
)
(3)
0 V

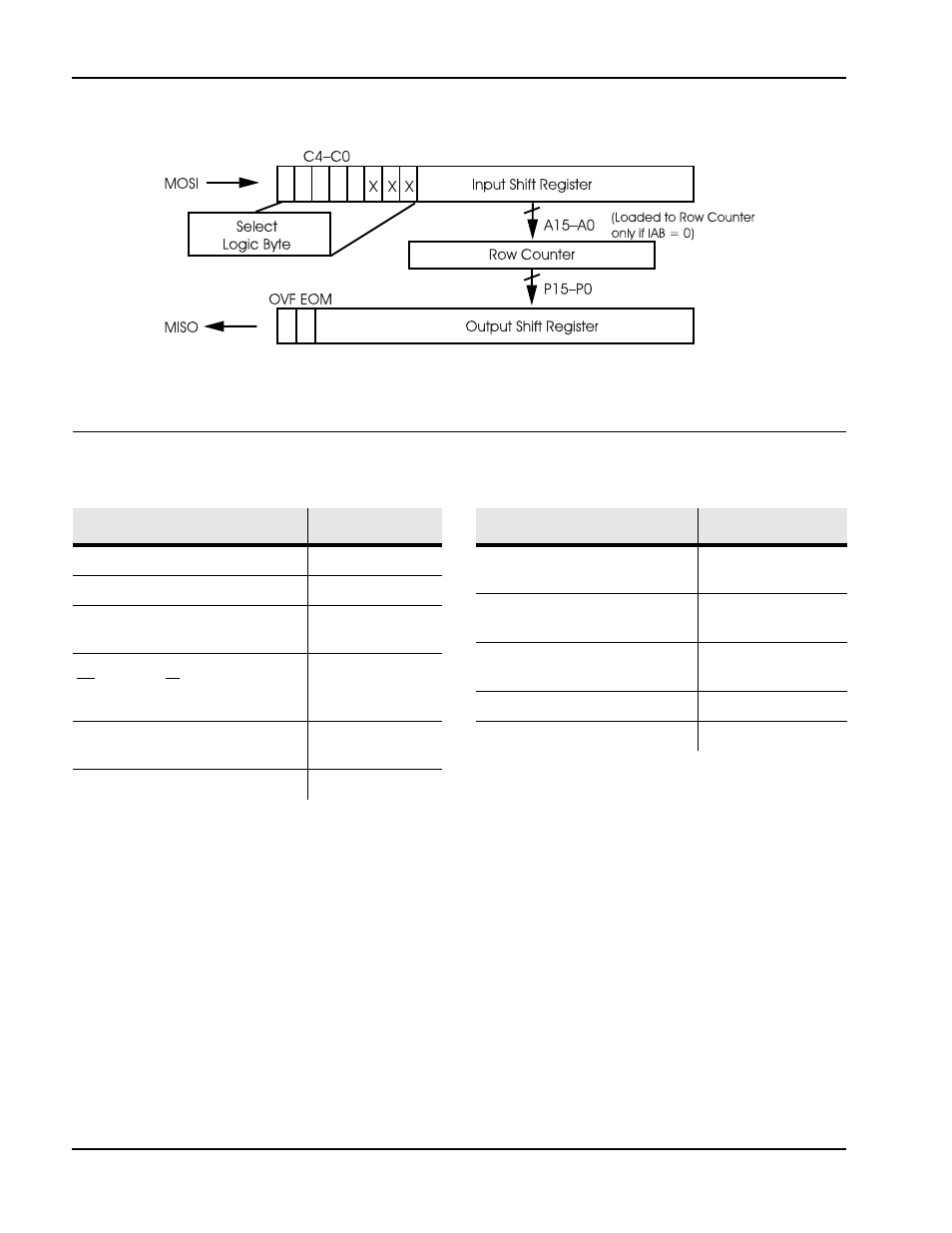

Figure 4: SPI Interface Simplified Block Diagram
