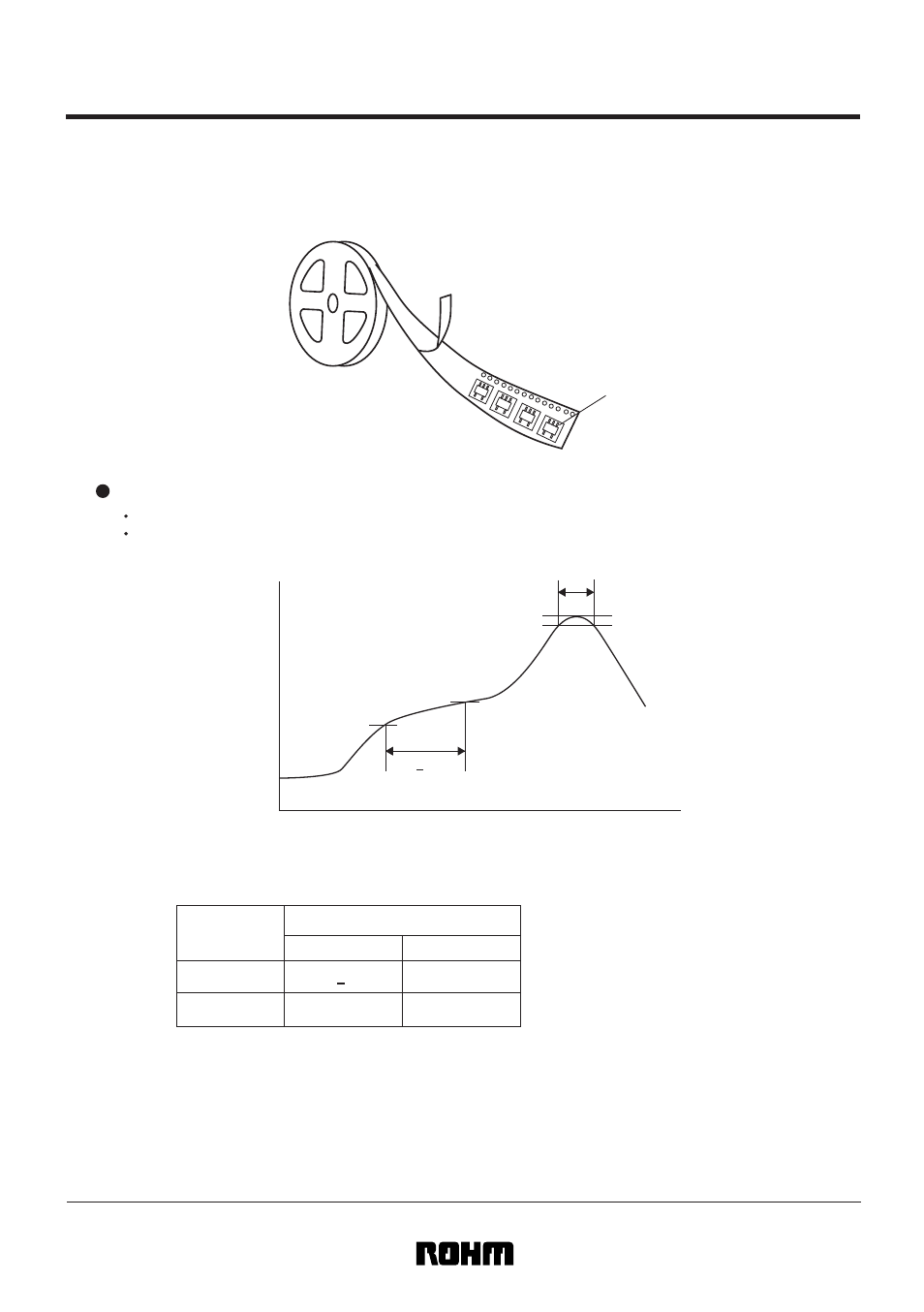

3)Standard packaged quantity and IC direction
The standard packaged quantity is 3,000 pcs/reel. Orders should be in multiples of the standard packaged
quantity. The ICs are TR oriented (as shown below).
First pin
(Leader side)
Recommended mounting conditions
SSOP5 (SMP5C2) allows either reflow or flow soldering mounting.
VSOF5 (EMP5) allows reflow mounting. The mounting conditions are shown below.
140°C
90+30s
Max. 10s
160°C
Max.240°C
235°C
Fig.41
Up to two reflows are allowed.
1)Reflow
2)Flow soldering
Preheating
section
Solder bath
Temperature
150+10°C
Max. 260°C
Time
60 to 120s
Max. 10s
Condition
Treatment
process
3)Product storage conditions
Store the products in an environment of 5 to 30°C in temperature and 70% RH or lower in humidity.
Fig.40
13/15
Voltage detectors
BD52XXG/FVE
BD53XXG/FVE
Rev.A
