14
4866A–GPS–08/05
ATR0601 [Preliminary]

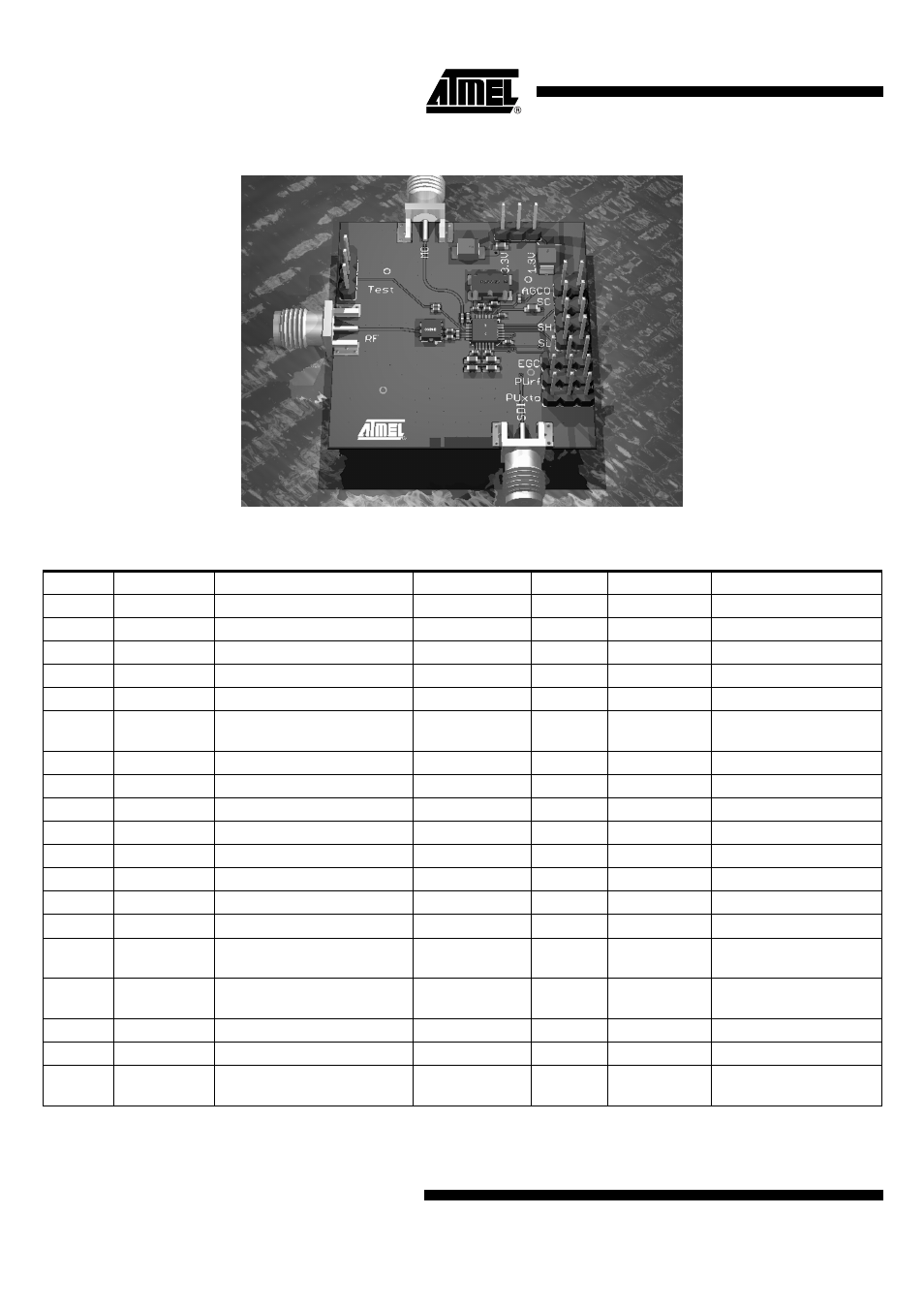

Figure 10-2. Illustration of Demonstration Board
Table 10-1. BOM of Demonstration Board
Qty Value Device Parts Tolerance Manufacturer Mfr. Order Code
4 JP2E J3, J4, J5, J6 Molex 90120-0762
5 JP3E J1, J2, J7, J8, J9 Molex 90120-0763
1 0 RESISTOR-0402 R1 Vishay CRCW0402000Z
1 2n2 CAPACITOR-0402 C3 5% Vishay VJ0402Y222JXJA
2 1p3 CAPACITOR-0402 C15, C17 0,1 pF Tayo Yuden EVK105CH1R3BW
1
5n6 2%
Multilayer
INDUCTOR-0402 L2 2%
Würth
Elektronik
744784056G
2 5p0 ±0p1 CAPACITOR-0402 C21, C22 ±0p1 Yageo America 0402CG509C9B200
2 10µ ELKO-B C1, C2 20% Vishay 293D106X0016B2
1 27 RESISTOR-0402 R7 5% Vishay CRCW040227RJ
2 47p CAPACITOR-0402 C5, C6 5% Vishay VJ0402A470JXXA.
1 82p CAPACITOR-0402 C4 Vishay VJ0402A820JXXA
4 100n CAPACITOR-0402 C7, C8, C9, C19 5% Vishay VJ0402V104JXJ
1 100p CAPACITOR-0402 C10 5% Vishay VJ0402A101JXXA.
3 142-0711-841 COAX-SMA P1, P2, P4 Johnson Comp. 142-0711-841
4 220n 2%
INDUCTOR_WIRE-
WOUND-0603
L3, L4, L5, L6 2%
Würth
Elektronik
744761222G
2 74279266 FERRITE_BEAD-0603 FB1, FB2
Würth
Elektronik
74279266
1 ATR0601-1 ATR0601-1 IC1 Atmel ATR0601
1 B4060 FILTER-BALANCED FI1 Epcos B4060
1
RSX-5
23.104 MHz
XTAL-4PIN-6035 X1 Rakon
XZC736 IEC19RSX-5
23.104 MHz
