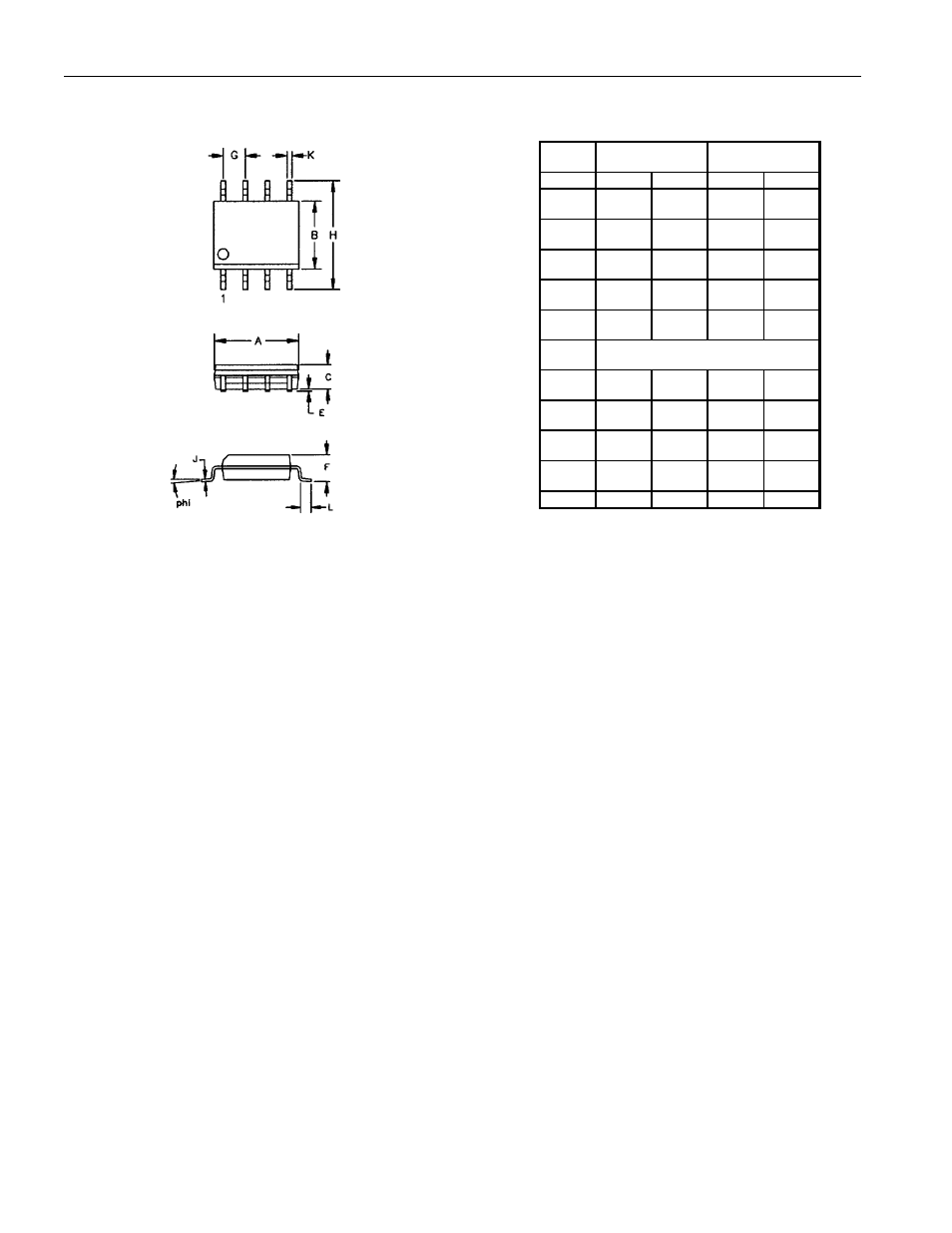

DS1302S SERIAL TIMEKEEPER 8-PIN SOIC (150-MIL AND 200-MIL)
PKG 8-PIN
(150-MIL)
8-PIN
(200-MIL)
DIM MIN MAX MIN MAX
A IN.
MM
0.188
4.78
0.196
4.98
0.203
5.16
0.213
5.41
B IN.
MM
0.150
3.81
0.158
4.01
0.203
5.16
0.213
5.41
C IN.
MM
0.048
1.22
0.062
1.57
0.070
1.78
0.074
1.88
E IN.
MM
0.004
0.10
0.010
0.25
0.004
0.10
0.010
0.25
F IN.
MM
0.053
1.35
0.069
1.75
0.074
1.88
0.084
2.13
G IN.
MM
0.050 BSC
1.27 BSC
H IN.
MM
0.230
5.84
0.244
6.20
0.302
7.67
0.318
8.08
J IN.
MM
0.007
0.18
0.011
0.28
0.006
0.15
0.010
0.25
K IN.
MM
0.012
0.30
0.020
0.51
0.013
0.33
0.020
0.51
L IN.
MM
0.016
0.41
0.050
1.27
0.019
0.48
0.030
0.76
phi 0 ° 8 ° 0 ° 8 °
