3 Mechanical Specifications
Parameter Specification
A 22.4 +0.6/-0.1mm [882 +24/-4mil]
B 17.0 ±0.1mm [669 ±4mil]
C 3.0 ±0.3mm [118 ±12mil]
D 2.55 +0.3/-0.1mm [100 +18/-4mil]
E 1.1 ±0.1mm [43 ±4mil]
F 3.80 ±0.1mm [150 ±4mil]
G 1.10 ±0.1mm [75 ±4mil]
H 2.85 +0.3/-.01mm [112 +18/-4mil]
Weight 2.1 g
Table 7: Dimensions
C
B
1
A
Side View
SDA2
SCL2
TxD1
RxD1
NC
VCC
GND
VCC_OUT
CFG_COM1
/Reserved
RESET_N
V_BCKP
Reserved
GND
GND
RF_IN
VCC_RF
V_ANT
NC
NC
NC
VDDUSB
USB_DM
USB_DP
EXTINT0
TIMEPULSE
GND
GND
AADET0_N
(H)
F
D
E
G
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
LEA-5
Top View

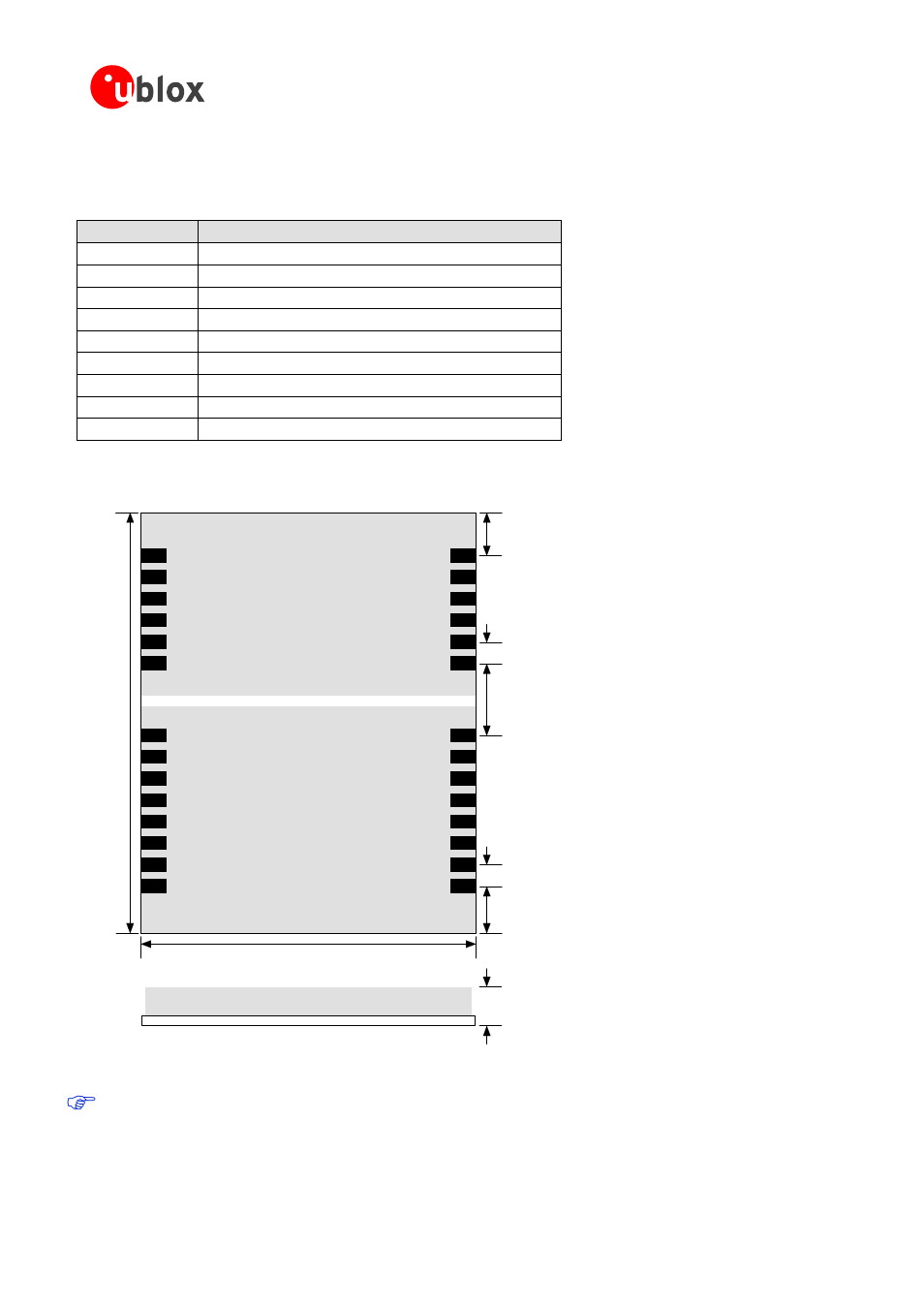

Figure 2: Dimensions
For information regarding the Paste Mask and Footprint see the LEA-5 Hardware Integration Manual [1].
