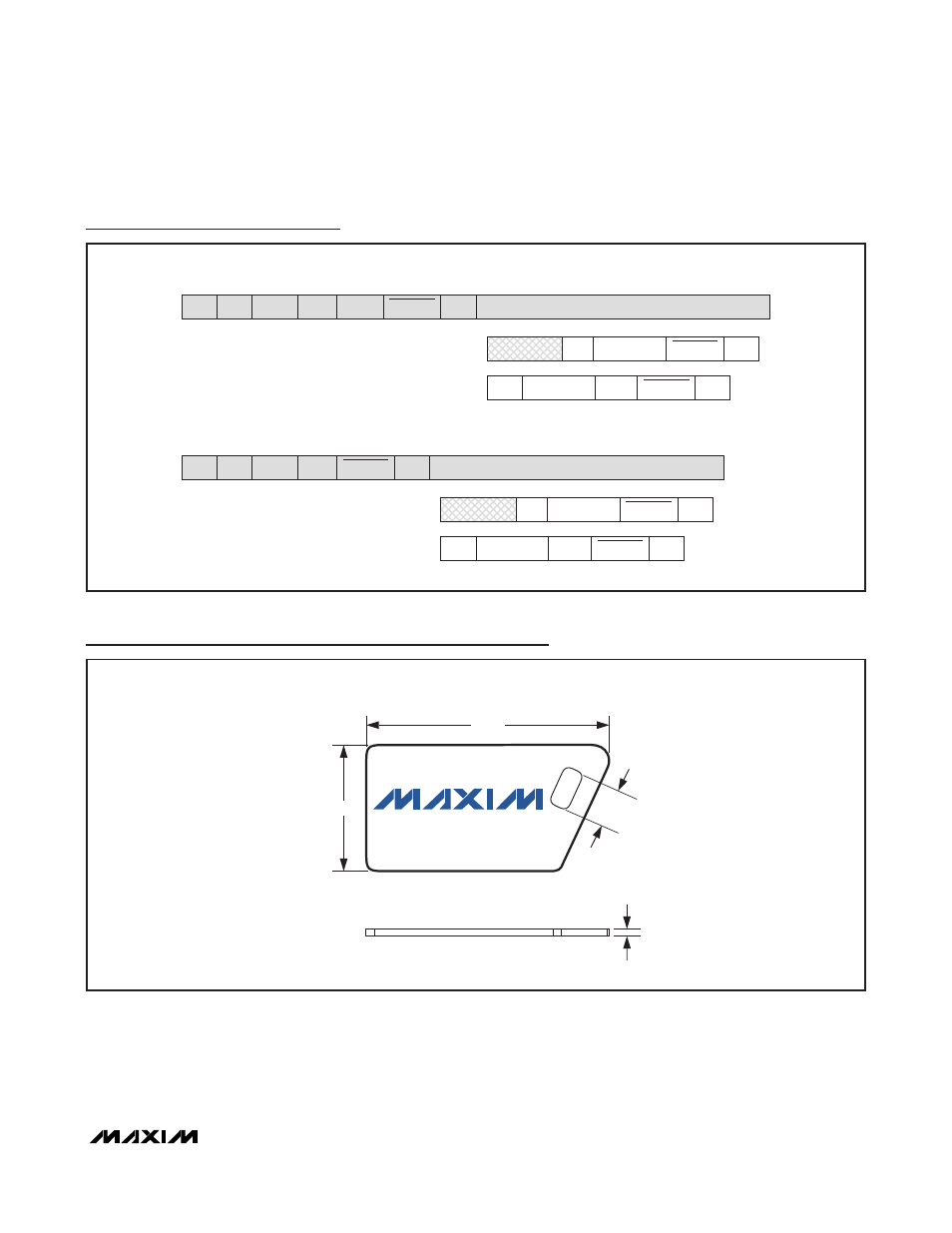

ISO 15693 Communication Examples (continued)
SOF RQF WDSF DSFID EOF (Carrier) [UID] CRC-16
Write DSFID
SOF Success RSF = 00h EOF CRC-16
SOF EOF ERRC RSF = 01h CRC-16 Error
t PROG
SOF RQF LDSF EOF (Carrier) [UID] CRC-16
Lock DSFID
SOF Success RSF = 00h EOF CRC-16
SOF EOF ERRC RSF = 01h CRC-16 Error
t PROG
MAX66120K-000AA+
TOP VIEW
SIDE VIEW
54mm
28mm 7.7mm
1.6mm
Key Fob Mechanical Drawing
