MAX12553
14-Bit, 65Msps, 3.3V ADC
22 ______________________________________________________________________________________
the common-mode rejection, allowing high-frequency
signals beyond the Nyquist frequency. The two sets of
termination resistors provide an equivalent 75Ω termi-
nation to the signal source. The second set of termina-
tion resistors connects to COM, providing the correct
input common-mode voltage. Two 0Ω resistors in series
with the analog inputs allow high IF input frequencies.
These 0Ω resistors can be replaced with low-value
resistors to limit the input bandwidth. Single-Ended, AC-Coupled Input Signal
Figure 12 shows an AC-coupled, single-ended input
application. The MAX4108 provides high speed, high
bandwidth, low noise, and low distortion to maintain the
input signal integrity.
MAX12553
1
2
3
6
5
4
N.C.
V
IN
0.1µF
T1
MINICIRCUITS
TT1-6 OR T1-1T
24.9Ω
24.9Ω
12pF
12pF
2.2µF
INP
COM
INN

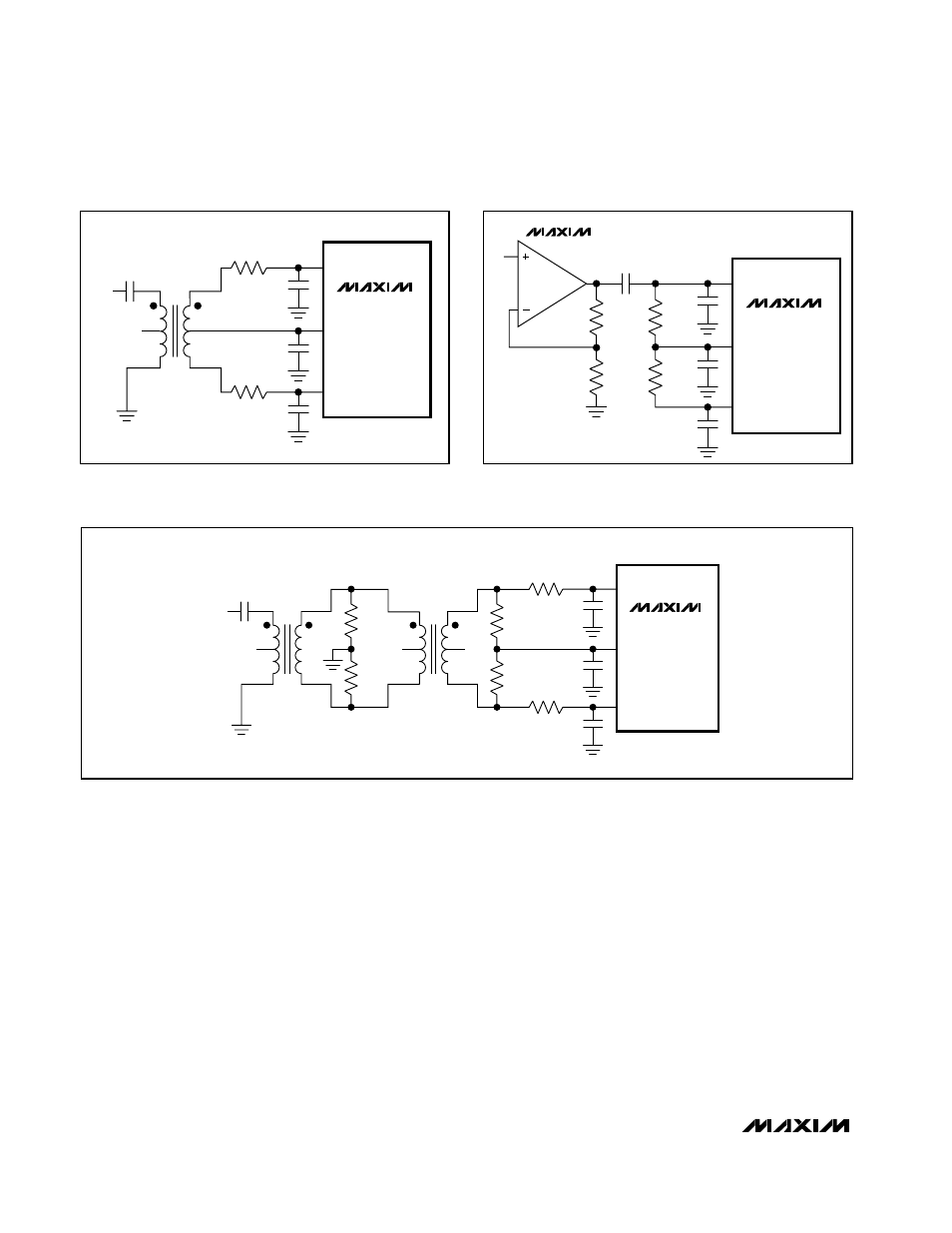

Figure 10. Transformer-Coupled Input Drive for Input
Frequencies Up to Nyquist
MAX12553
1
2
3
6
5
4
N.C. N.C.
T2
MINICIRCUITS
ADT1-1WT
1
2
3
6
5
4
N.C.
V IN
0.1µF
T1
MINICIRCUITS
ADT1-1WT
0Ω*
0Ω*
5.6pF
5.6pF
2.2µF
INP
COM
INN
110 Ω
0.1%
110 Ω
0.1%
75 Ω
0.5%
75 Ω
0.5%
*0 Ω RESISTORS CAN BE REPLACED WITH LOW-VALUE
RESISTORS TO LIMIT THE BANDWIDTH.
Figure 11. Transformer-Coupled Input Drive for Input Frequencies Beyond Nyquist
MAX12553
5.6pF
5.6pF
2.2µF
INP
COM
INN
24.9 Ω
24.9 Ω
100 Ω
100 Ω
0.1µF
MAX4108
V IN
Figure 12. Single-Ended, AC-Coupled Input Drive
