High-ESD Profibus RS-485 Transceiver
MAX14770E
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied.
Maxim reserves the right to change the circuitry and specifications without notice at any time.
Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
15
©
2009 Maxim Integrated Products
Maxim is a registered trademark of Maxim Integrated Products, Inc.
ESD test model (Figure 15), the ESD-withstand voltage
measured to this standard is generally lower than that
measured using the HBM. Figure 16 shows the current
waveform for the Q10kV IEC 61000-4-2 Level 4 ESD
Contact Discharge test. The Air-Gap Discharge test
involves approaching the device with a charged probe.
The Contact Discharge method connects the probe to
the device before the probe is energized.
Chip Information
PROCESS: BiCMOS

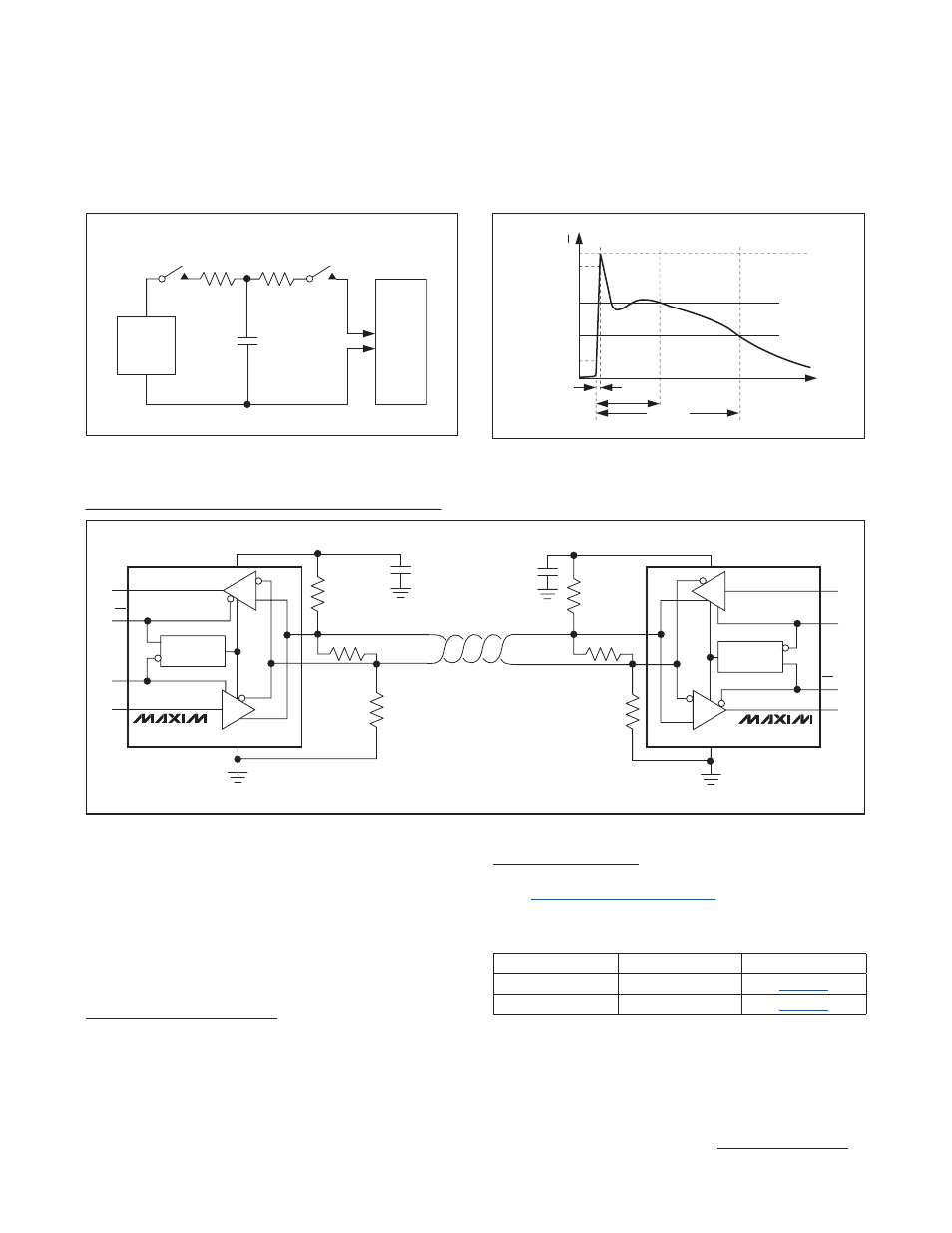

Figure
15. IEC61000-4-2 ESD Test Model
Figure
16. IEC61000-4-2 ESD Generator Current Waveform
Typical PROFIBUS-DP Operating Circuit
Package Information
For the latest package outline information and land patterns,
go to
www.maxim-ic.com/packages
. Note that a “+,” “#,” or
“-” in the package code indicates RoHS status only. Package
drawings may show a different suffix character, but the drawing
pertains to the package regardless of RoHS status.
CHARGE-CURRENT-
LIMIT RESISTOR
DISCHARGE
RESISTANCE
STORAGE
CAPACITOR
C
S
150pF
R
C
50MI TO 100MI
R
D
330I
HIGH-
VOLTAGE
DC
SOURCE
DEVICE
UNDER
TEST
60ns
30ns
t
R
= 0.7ns
TO 1ns
t
10%
90%
I
PEAK
100%
V
CC
GND
GND
DI
DE
RE
RO
220I
390I
390I
A
D
R
SHUTDOWN
B
MAX14770E
0.1FF
0.1FF
V
CC
DI
DE
RO
220I
390I
390I
A
D
R
SHUTDOWN
B
RE
MAX14770E
PACKAGE TYPE
PACKAGE CODE
DOCUMENT NO.
8 SO
S8+4
8 TDFN-EP
T833+2
