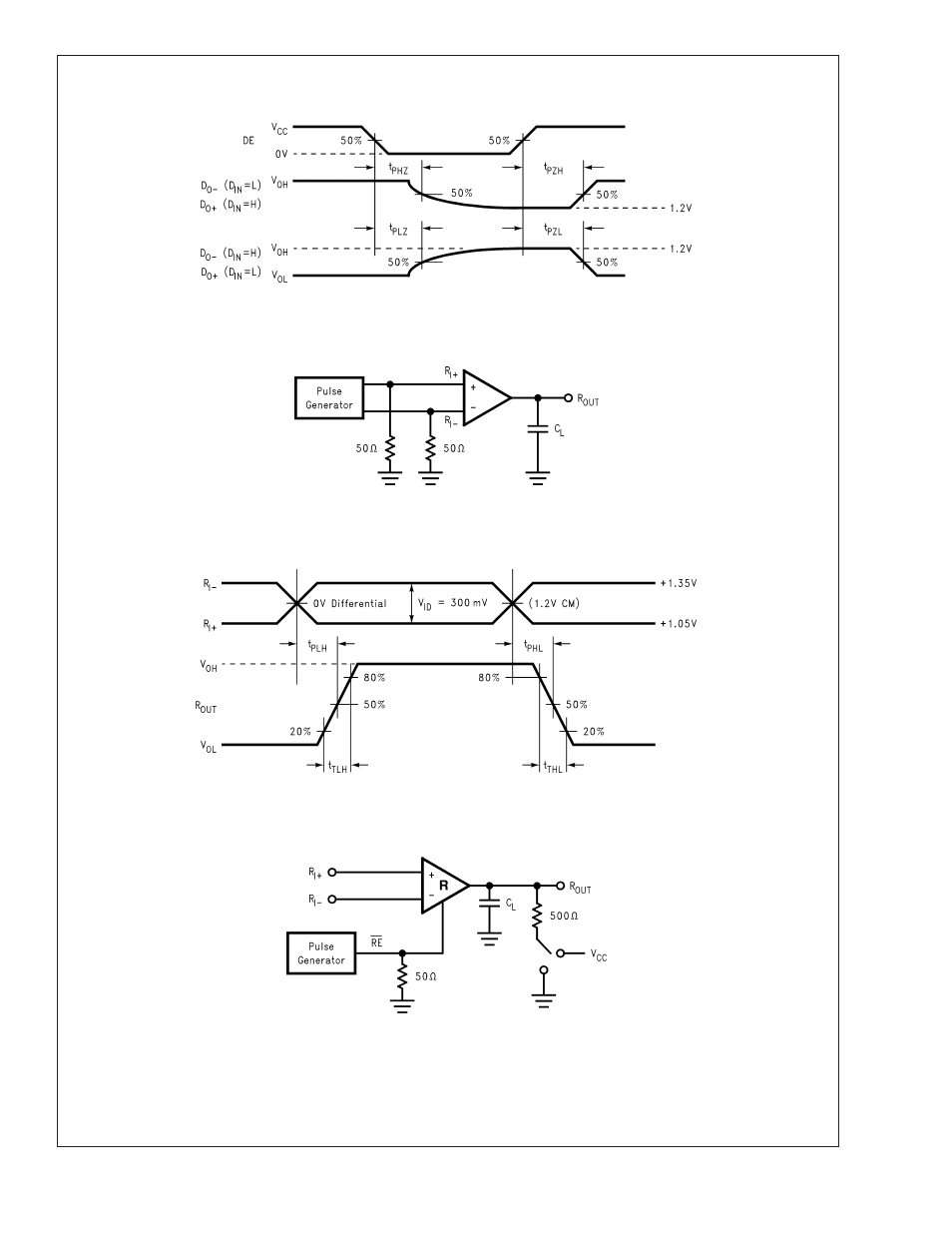

Test Circuits and Timing Waveforms

(Continued)

10124207

FIGURE 5. Driver TRI-STATE Delay Waveforms

10124208

FIGURE 6. Receiver Propagation Delay and Transition Time Test Circuit

10124214

FIGURE 7. Receiver Propagation Delay and Transition Time Waveforms

10124215

FIGURE 8. Receiver TRI-STATE Delay Test Circuit
