7
TH7815ACC
1995A–IMAGE–04/02
Electro-optical
Performances
Without Infrared Cut-
off Filter
The TH7815ACC special semiconductor process enables to exploit the silicon’s high
near infrared sensitivity while maintaining good imaging performances in terms of
response uniformity and resolution. Typical changes in performance with and without
OR filtering are summarized below:
Pixel Saturation
Adjustment
TH7815ACC antiblooming structure can be used to adjust the maximum saturation volt-
age, by adjusting the
Φ
A bias voltage. The following curve shows the relationship
between V
SAT
and V
Φ
A.

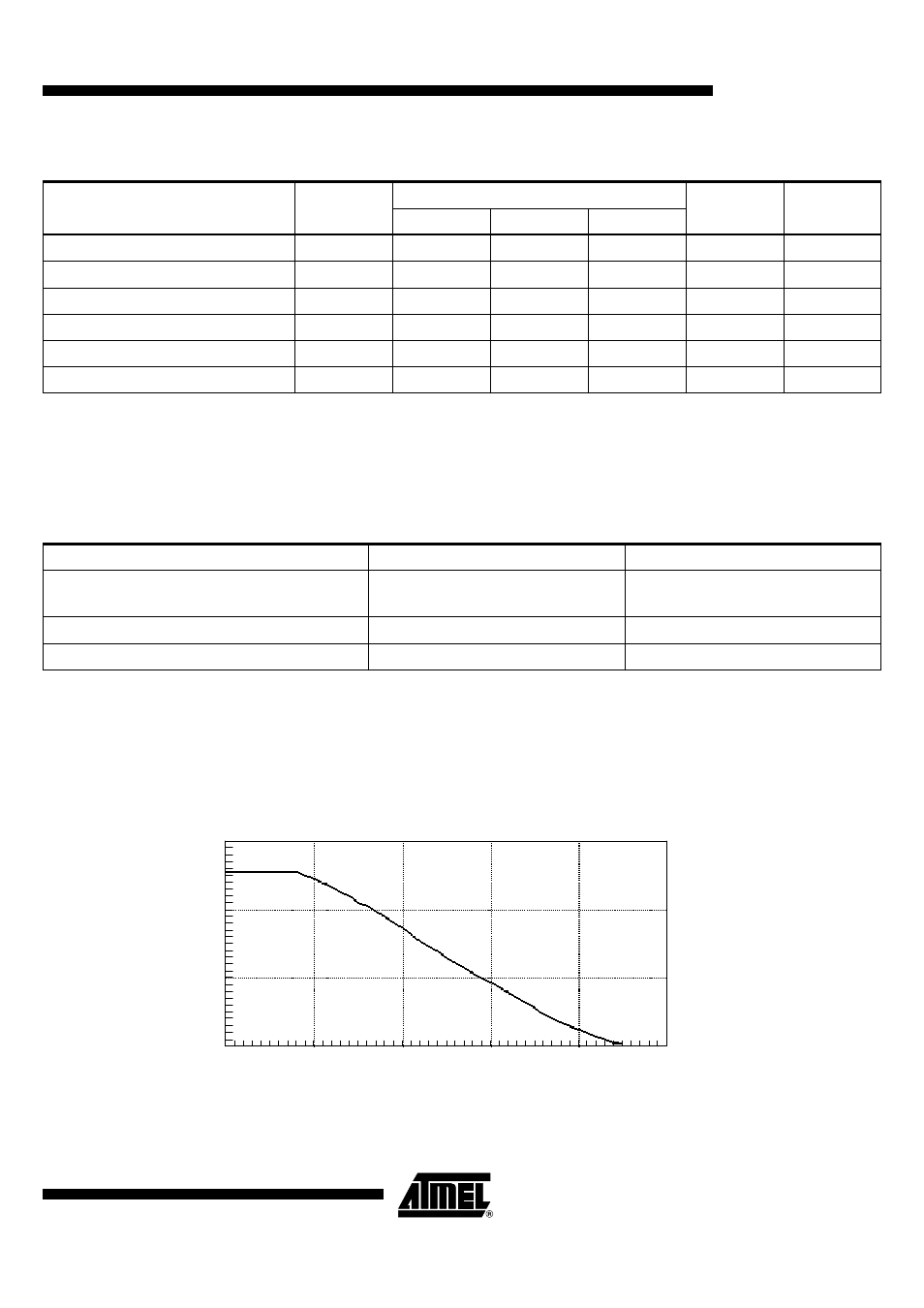

Figure 5. Pixel Saturation Antiblooming Bias (Typical conditions)
Static and Dynamic Electrical Characteristics
Parameter Symbol
Value
Unit Remarks Min. Typ. Max
Output Amplifier Supply Current I
DD
10 mA per amplifier
Output Impedance Z
S
200 225 250
Ω
DC Output Level V
REF
10 V
Output Conversion Factor CVF 5 µV/e-
Offset In Darkness DC off 30 mV
Reset Feedthrough Vft 400 mV
Parameter With IR Cut-off Filter Without IR Cut-off Filter
Average Video Signal Due to a Given
Scene Illumination
V
OS
6 x V
OS
PRNU (Single Defects Excluded) ±5% ±5%
CTF at Nyquist Frequency 65% 40%
2 3 4 5 6 7
0
1
2
3
(V)
(V
)
Antiblooming Bias
Sa
tu
ra
tion
Vo
ltage
Typical conditions
