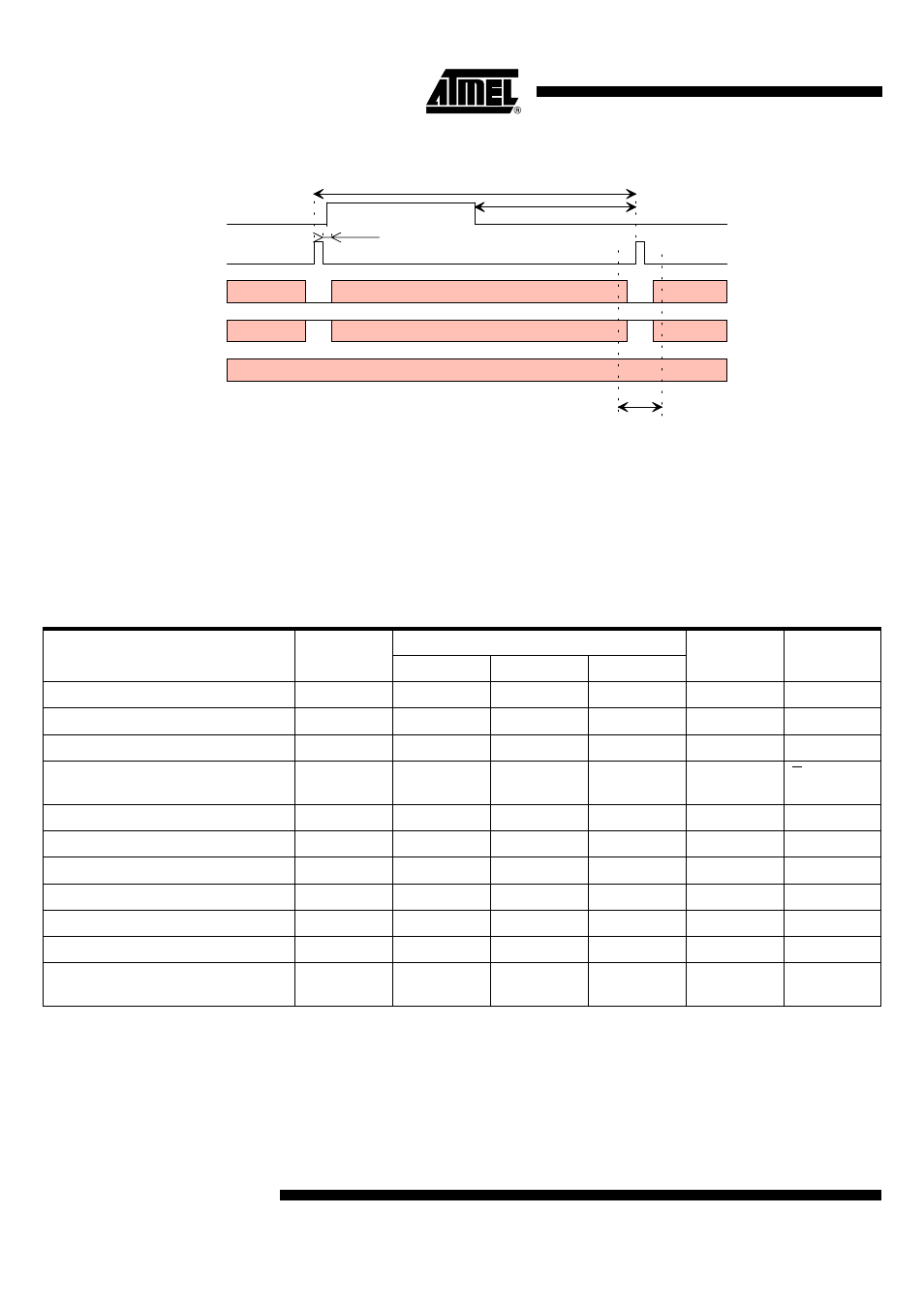

Figure 4. Exposure Time Reduction
Electro-optical
Performance
General test conditions
T
CASE
= 25°C
Light source: 2854K with 2 mm BG38 filter (unless specified) + F/11 optical aperture.
Typical operating conditions: 2 x 10 MHz.
All values are referred to prescan pixels level.
Φ A
P Φ
L1 Φ
L2 Φ
R Φ
Line Period
Transfer Period
exposure time
≥ 100 ns
L o w l e v e l
H i g h l e v e l
Parameter Symbol
Value
Unit Remarks Min. Typ. Max.
Saturation Output Voltage V
SAT
1.3 1.6 3 V
Responsivity R 7.5 8.5 V/µJ/cm 2
Responsivity Unbalance 2 5 %
Photo Response Non-uniformity
Peak-to-peak
PRNU ±5 ±10 % V
OS
V
OS
= 50 mV
to 1.2V
Dark Signal DS 0.1 0.4 mV/ms
Dark Signal Non-uniformity (1
σ
) DSNU 0.1 mV/ms
Temporal RMS Noise in Darkness V
N
300 µV
Dynamic Range DR 4,300 5,300
CTF CTF 65 %
LAG LAG 1 %
Charge Transfer Inefficiency (Per
Stage)
HCTI 8.10 -5
