Page 9
9
TH7804A
1989A–IMAGE–05/02

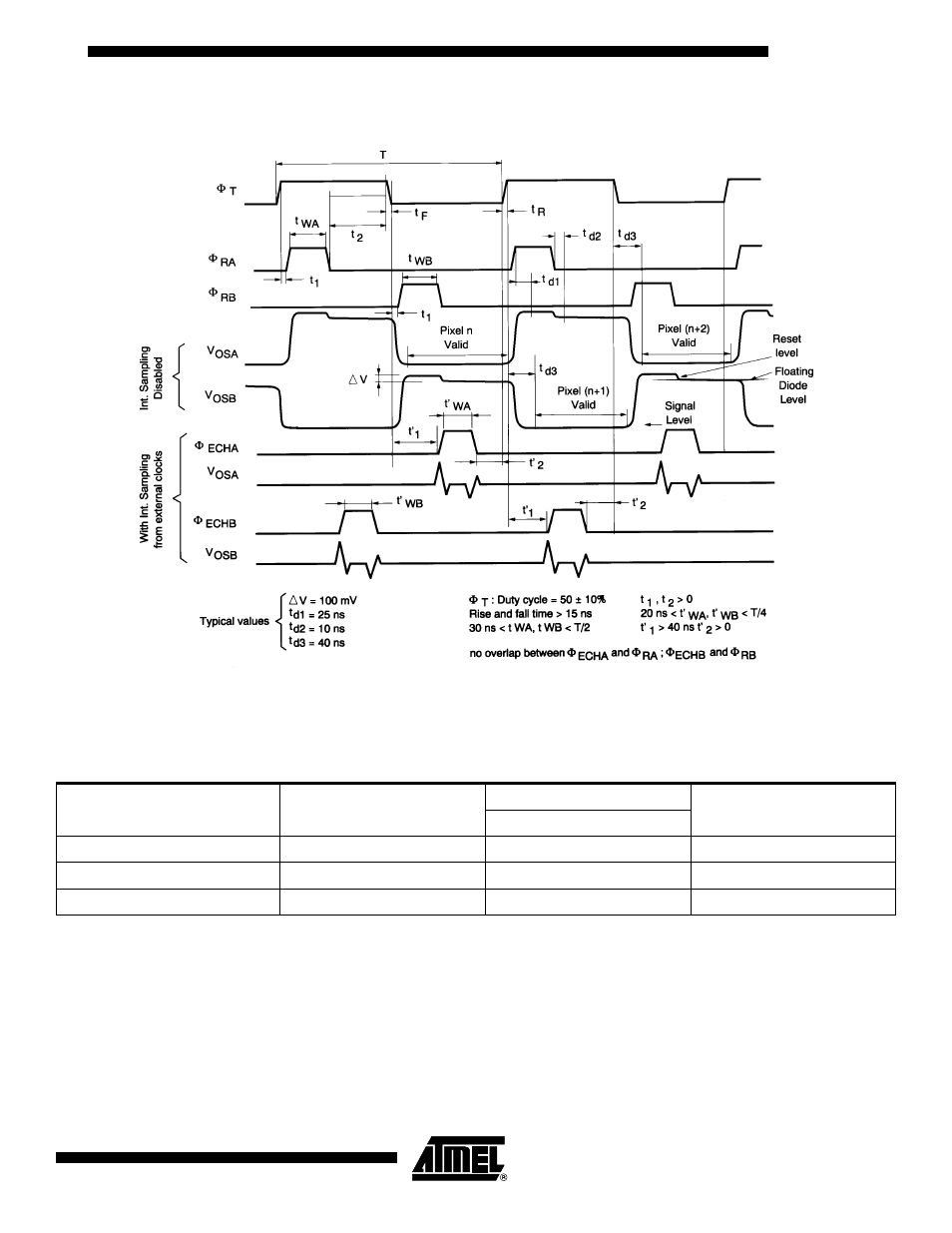

Figure 5. Timing Diagram — Clocks and Video Output Timing Diagram With and Without On-chip Sampling.
External reset clocks improve electro-optical performance, as listed below. Other operating conditions and other electro-
optical parameters remain unchanged.
Electro-optical performances obtained with complementary modes are not guaranteed for the standard products.
Table 8. Performance Improvements with External
Φ
RA
and
Φ
RB
Configuration
Parameter
Symbol
Value
Unit
Typ.
Saturation Output Voltage
V
SAT
2.0
V
Responsivity
R
8
V/µJ/cm
2
Dynamic Range
DR
8000
