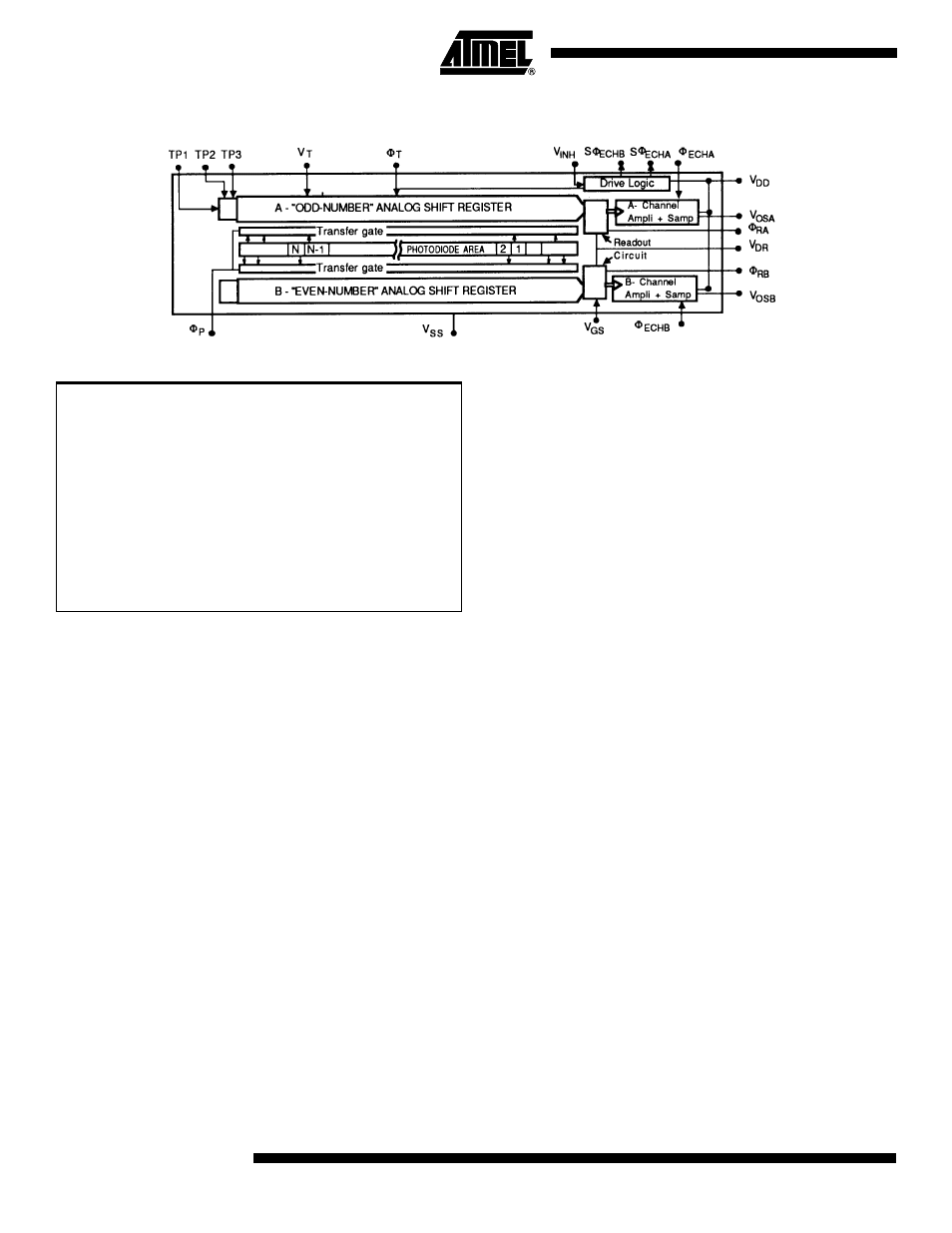

2
TH7804A
1989A–IMAGE–05/02
Operating Range The operating range defines the temperature limits between which functionality is guar-
anteed: 0°C to 70°C.
Operating Precautions Shorting the video output to V
SS
or V
DD
, even temporarily, can permanently damage the
output amplifier.
Absolute Maximum Ratings*
Storage Temperature ..................................... -55°C to +150°C *NOTICE: Stresses above those listed under absolute max-
imum ratings may cause permanent device fail-
ure. Functionality at or above these limits is not
implied. Exposure to absolute maximum ratings
for extended periods may affect device reliability.
Operating Temperature ....................................... 0°C to +70°C
Thermal Cycling..........................................................15°C/mn
Maximum Voltage:
• Pins: 2, 4, 8,12,15,16,18,19, 22, 24 ................-0.3V to +18V
• Pins: 9,10,11,17 .............................................. -0.3V to +18V
• Pin: 13 .............................................................................. 0V
