Cobalt Digital COMPASS 9301 AES Audio Delay - Manual (Page 34)

3
Control and Display Descriptions
3-4 9301 PRODUCT MANUAL 9301-OM (V4.2)
Cobalt ® Remote Control Panel User Interface
(See Figure 3-3.) Similar to the function submenu tabs using DashBoard™,
the OGCP-9000 (and OGCP-9000/CC) Remote Control Panels have a Select
Submenu key that is used to display a list of function submenus. From this
list, a control knob on the Control Panel is used to select a function from the
list of displayed function submenu items.
When the desired function submenu is selected, each parametric control or
selection list item associated with the function is displayed. Scalar (numeric)
parametric values can then be adjusted as desired using the control knobs,
which acts like a potentiometer. Items in a list can then be selected using the
control knobs which correspondingly acts like a rotary switch.
Figure 3-3 shows accessing a function submenu and its parameters (in this
example, “AES Output Pair 1/2/3/4”) using the Control Panel as compared to
using the card edge controls.
Note: Refer to “OGCP-9000 Remote Control Panel User Manual” (PN
OGCP-9000-OM) or “OGCP-9000/CC Remote Control Panel User Manual”
(PN OGCP-9000/CC-OM) for complete instructions on using the Control
Panels.

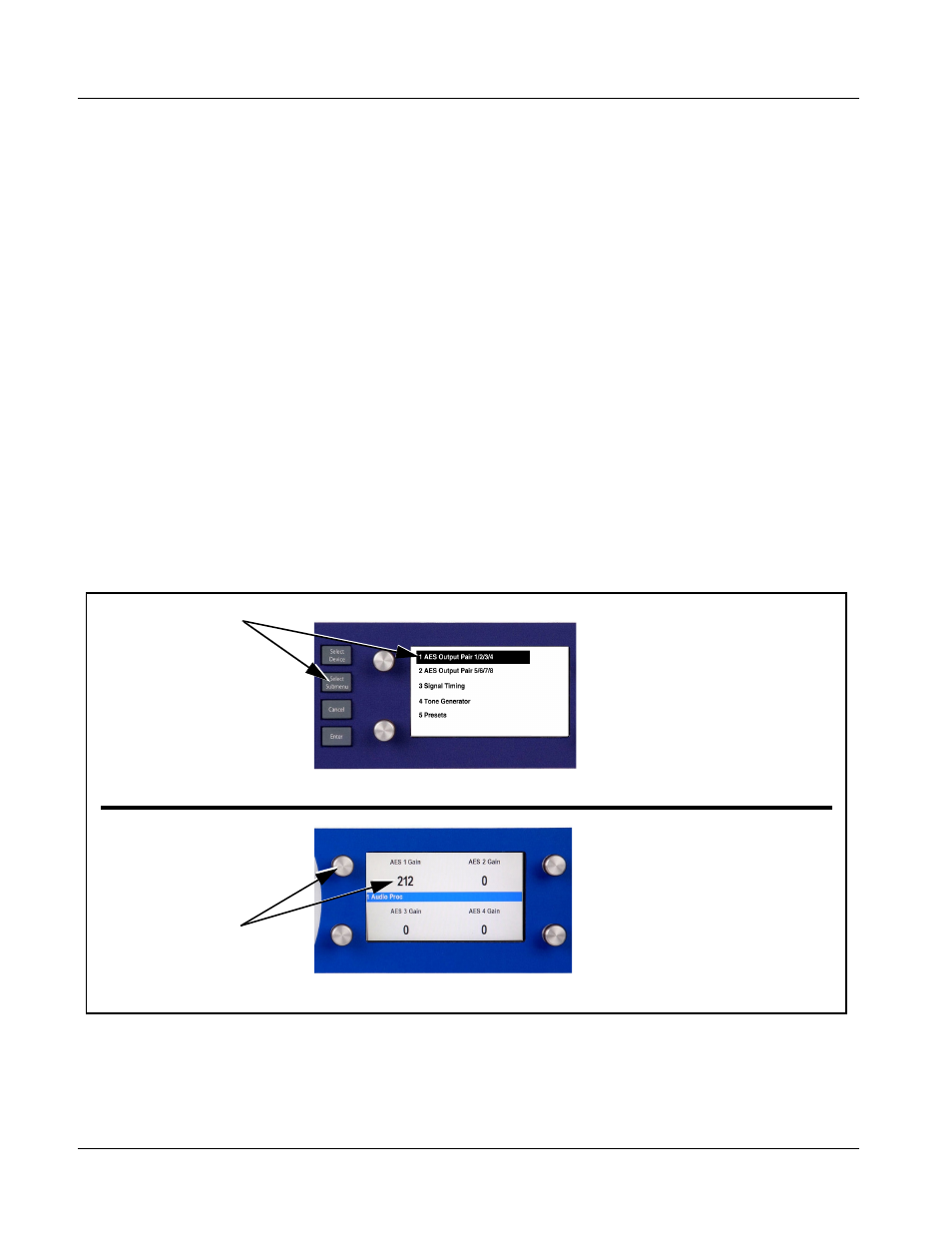

Figure 3-3 Control Panel Setup of Example Audio Control Function
AES Output Pair 1/2/3/4
function (among others) is
accessed using the Control
Panel Select Submenu key.
AES Output Pair 1/2/3/4
function is selected from the
list of functions (submenu
items) using any knob
When the AES Output Pair
1/2/3/4 function submenu is
selected, its related
parameters are now
displayed.
In this example, Gain for
AES Channel 1 is adjusted
using the corresponding
Gain control knob.
