3

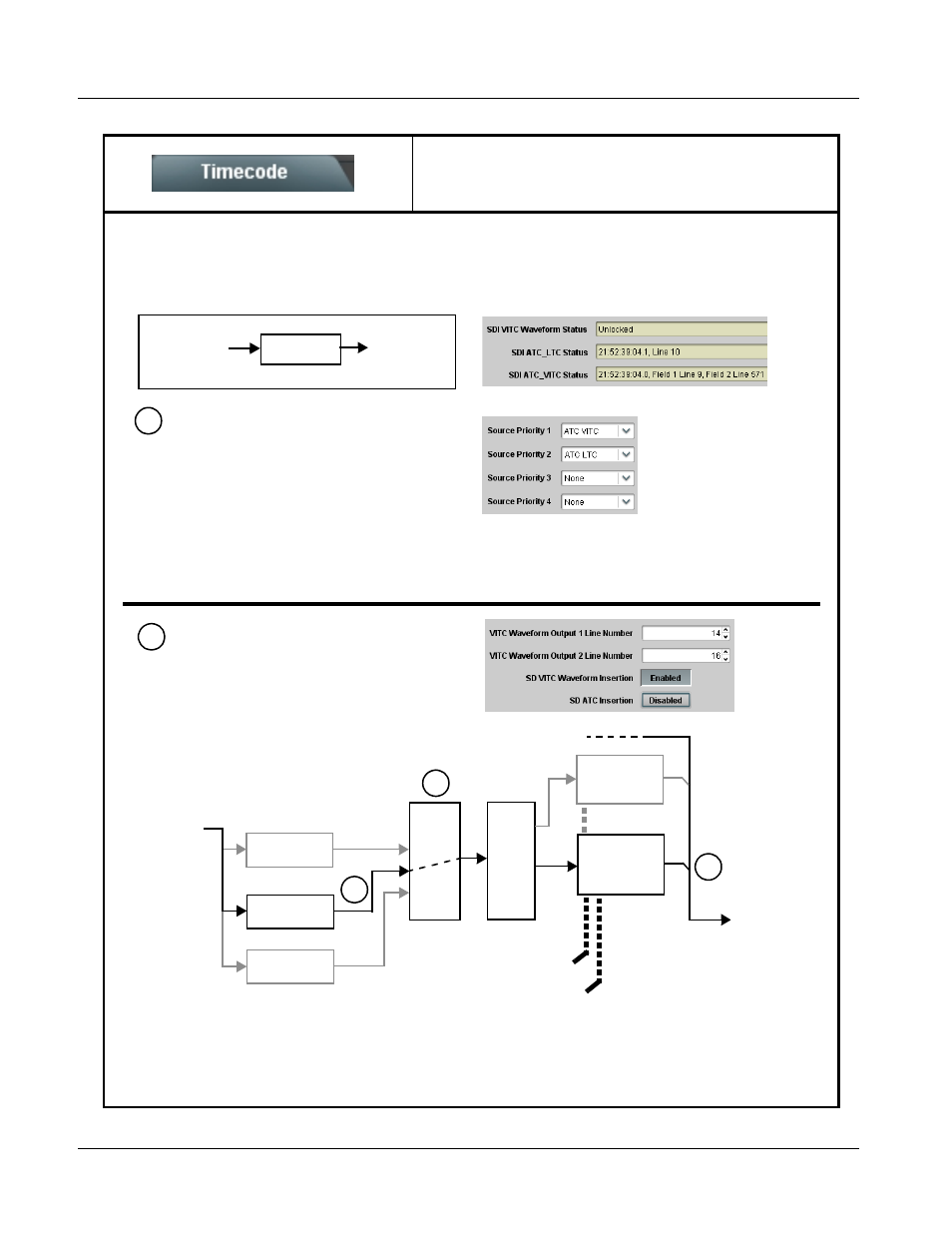

9822 Function Submenu List and Descriptions
3-34 9822 PRODUCT MANUAL 9822-OM (V4.1)
Timecode
Provides timecode data extraction from various
sources, and provides formatting and re-insertion
controls for inserting the timecode into the output video.
Table 3-2 9822 Function Submenu List — continued
SDI VITC
Detect/Extract
SDI ATC_LTC
Detect/Extract
SDI ATC_VITC
Detect/Extract
Priority/
Select
720p SDI
w/ ATC_LTC
w/ ATC_VITC
SD VITC
Waveform
Timecode
Proc/Embed
525i SDI
w/SD_VITC
Insert
Control
Line
Number
Control
Buffer/
Format
SD_VITC Waveform Insertion = Enabled
SD VITC1 = Line 14
SD VITC2 = Line 16
9822
720p 2997
w/ ATC_LTC
w/ ATC_VITC
525ip 5994
w/ SD_VITC
Noting that the incoming video contains ATC_LTC
and ATC_VITC timecode data (as shown in the status
display), in this example the Source Priority
drop-down lists is set to include ATC_VITC timecode
data as the preferred choice. This extracts the
selected timecode data from the incoming video.
Since ATC_VITC is the preferred choice and is
available, the received ATC _VITC timecode data is
selected and re-formatted as SDI VITC timecode
data.
In this example, With SD VITC Waveform Insertion
set to Enabled, the SD VITC timecode data is placed
on the output SDI video.
In the example here, the line numbers are set to the
default values.
A
B
Shown below is an example in which received 720p 2997 video is being converted to 525i 5994 SDI. To preserve and re-insert
the timecode data, the following can be performed using the Timecode function. Each Timecode control is fully described on
the pages that follow.
A
A
B
ATC_VITC
Timecode
Proc/Embed
Note: ATC_VITC is locked to line 12.
