23
SHIFT MODE
Although you can control all of the Sub Phatty’s functions directly
from the front panel, you’ll need to dig a little deeper to reach some
of them. Shift mode reassigns several front-panel controls so you can
use them to edit hidden parameters. Like all parameters, changes you
make in Shift mode are memorized when you save your preset.

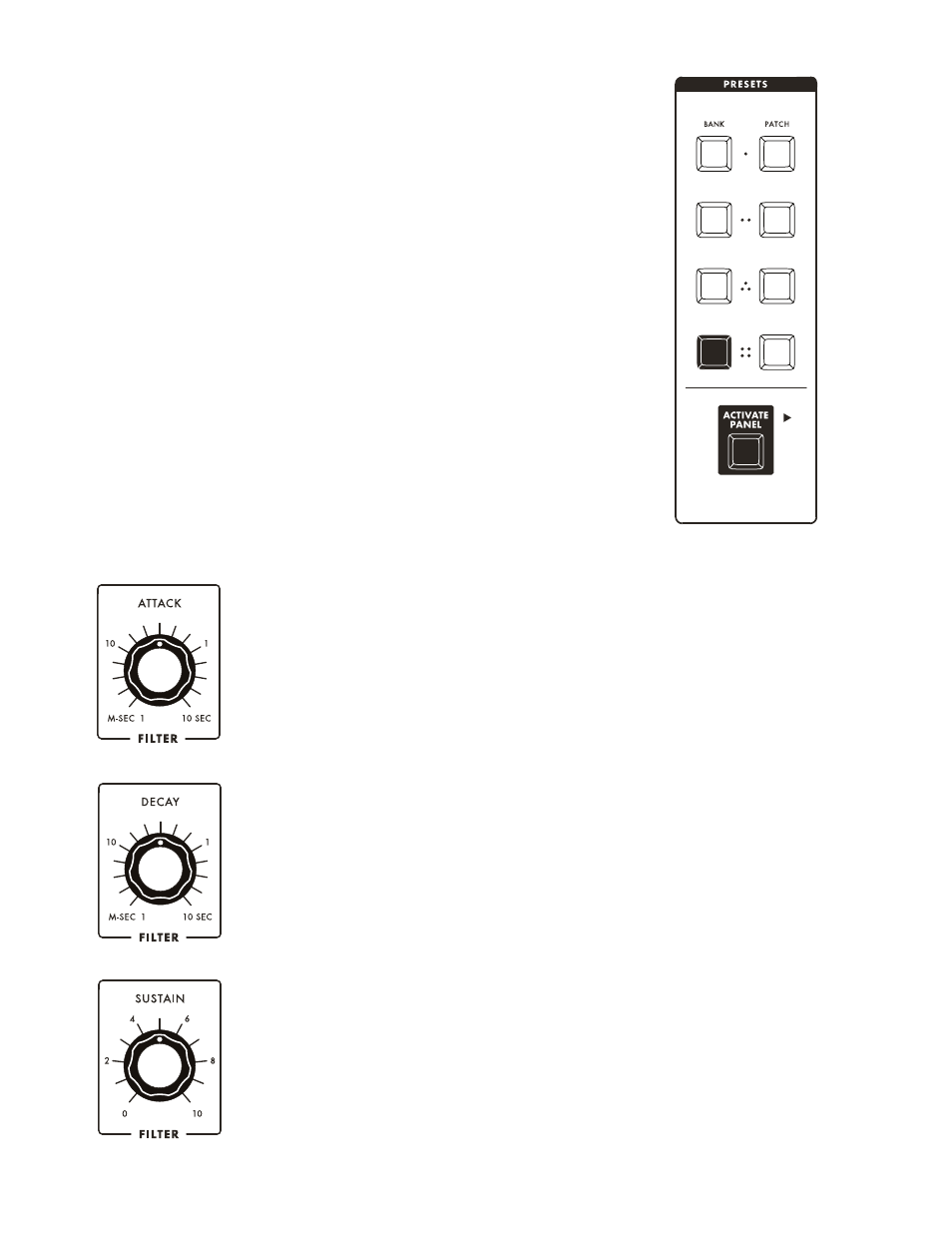

Engage Shift mode by holding down the BANK 4 button and then
pressing the ACTIVATE PANEL button. When you do, all the BANK
and PATCH buttons will go dark and the ACTIVATE PANEL button will
blink. Pressing ACTIVATE PANEL again will cancel Shift mode and
return all the controls to their normal functions.
KNOB & BUTTON REASSIGNMENTS IN SHIFT MODE
PARAMETER: FILTER ENVELOPE DELAY
KNOB: FILTER ENVELOPE ATTACK
Adding a delay stage to the filter envelope lets you specify a timed pause
before the onset of the attack, effectively turning an ADSR envelope into a
DADSR envelope. By engaging Shift mode and turning the amplifier envelope’s
ATTACK knob, you can vary the envelope’s delay time from a minimum of 0 to
a maximum of 10 seconds.
PARAMETER: FILTER ENVELOPE HOLD
KNOB: FILTER ENVELOPE DECAY
Adding a hold stage to the filter envelope lets you specify a fixed delay
between the attack and sustain stages, effectively turning an ADSR envelope
into an AHDSR envelope. During this stage, the filter’s cutoff frequency is held
at its maximum level, which is determined by the filter’s
EG AMOUNT setting.
By engaging Shift mode and turning the filter envelope’s DECAY knob, you can
vary the envelope’s hold time from a minimum of 0 to a maximum of 10 seconds.
PARAMETER: VELOCITY TO FILTER ENVELOPE AMOUNT
KNOB: FILTER ENVELOPE SUSTAIN
To make your sounds get brighter as you press the keys faster on the keyboard,
engage Shift mode and turn up the filter envelope’s
SUSTAIN knob. The knob’s
range varies from 0 to 100%.
