MODEL 5600 & 5600 ECONOMINDER ®

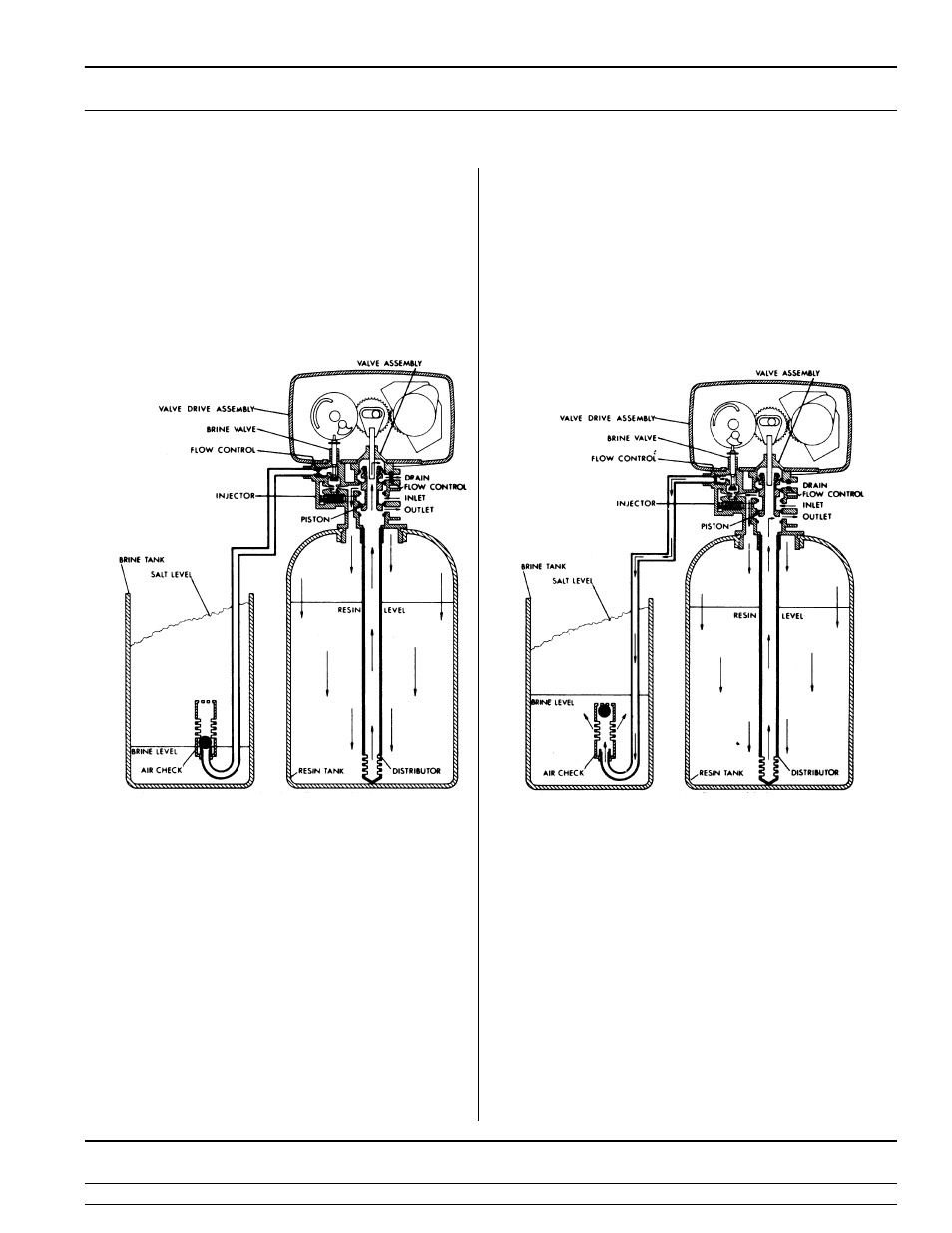

Water Conditioner Flow Diagrams (Cont’d.)
7
SETTLING RINSE POSITION
5 Minutes
8
BRINE TANK FILL POSITION
4 to 24 Minutes Adjustable Cycle
Hard water enters the unit at the valve inlet - flows around
the lower piston groove - thru the injector throat - thru the
brine valve and flow control to fill the brine tank. Hard
water also flows around the lower piston groove - thru the
passage to the top of tank - down thru the resin and
enters the distributor as conditioned water. The
conditioned water flows up thru the center tube to the
valve outlet. Hard water enters the unit at the valve inlet - flows
around the lower piston groove - down thru the top
of tank passage - downward thru the resin - up the
distributor tube - thru the center hole in the piston -
over the top edge of the piston and out the drain
line.
