Daystar KC09101BK User Manual
Page 4
7
11.
Lower down the axle so the coil springs will drop out.
12.
Don’t mix up the left and right side coils; they are side-
13. Remove the upper spring isolators

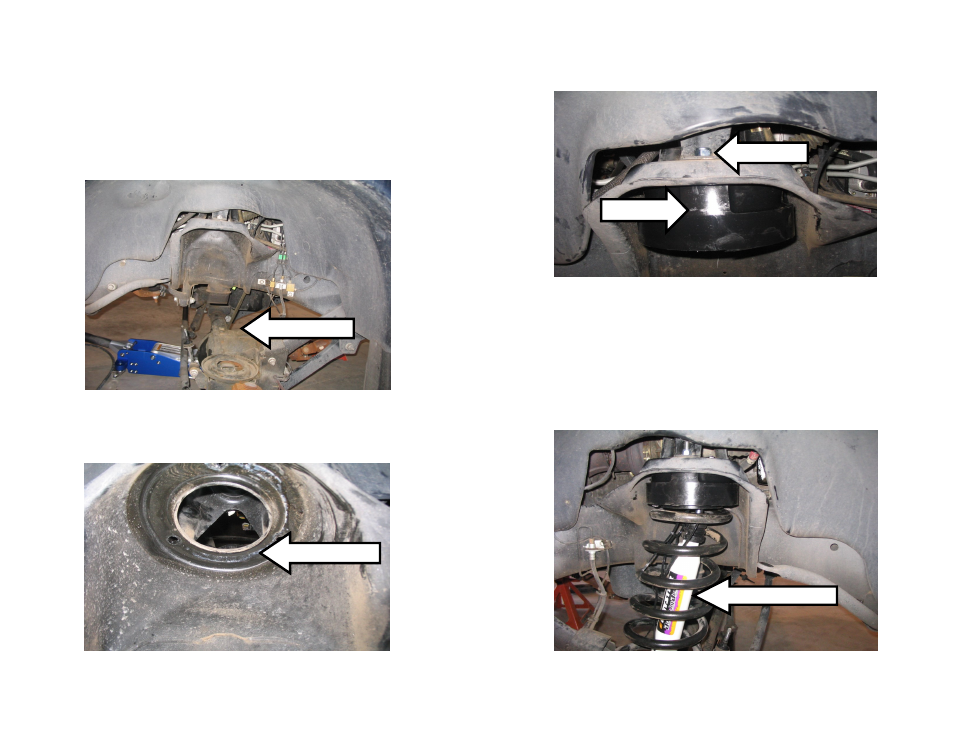

Photo of inside of front spring pocket with isolator removed
Isolator removed
!CAUTION: Coil spring maybe compressed even with axle/
suspension at full travel. Use spring compressor for safety
during removal. Keeping hands and other body parts clear at
Sping removed.
8
14. Install the Daystar lift spacers into the stock isolator mount-
ing position and install the mounting nuts. ( 3 per side ).
Torque to factory specs.
15. Position coil spring and shock absorbers in the upper spring
mounts and shock mounts. NOTE: You will need longer
shocks.
16. Install the upper shock mount fist.
17. Place the coil in the lower axel spring mount and jack up
the axel to install the lower shock bolts and nuts.
18. Lower the jack down to full drop. NOTE the shock should
3 nuts
Lift spacer
Longer shocks required
