500-24 MagnaValve®
Steel Shot Media Valve for Wheel Blast Machines
Electronics Inc.
56790 Magnetic Drive
Mishawaka, Indiana 46545 USA
(574)256-5001
www.electronics-inc.com
Specification is subject to change without notice
Rev 12/13
MagnaValve is a registered trademark of Electronics Inc.
Valve Specifications
Power +24 Vdc @ 2A (50 VA)
Media All ferrous media except
Cast Stainless Steel
Flow Rate 120 - 1,200 lb/min (544 - 544 kg/min)*
Maximum Pressure 100 PSI
Mode
Normally Closed
Temperature Range 40 - 110º F (5 - 43º C)

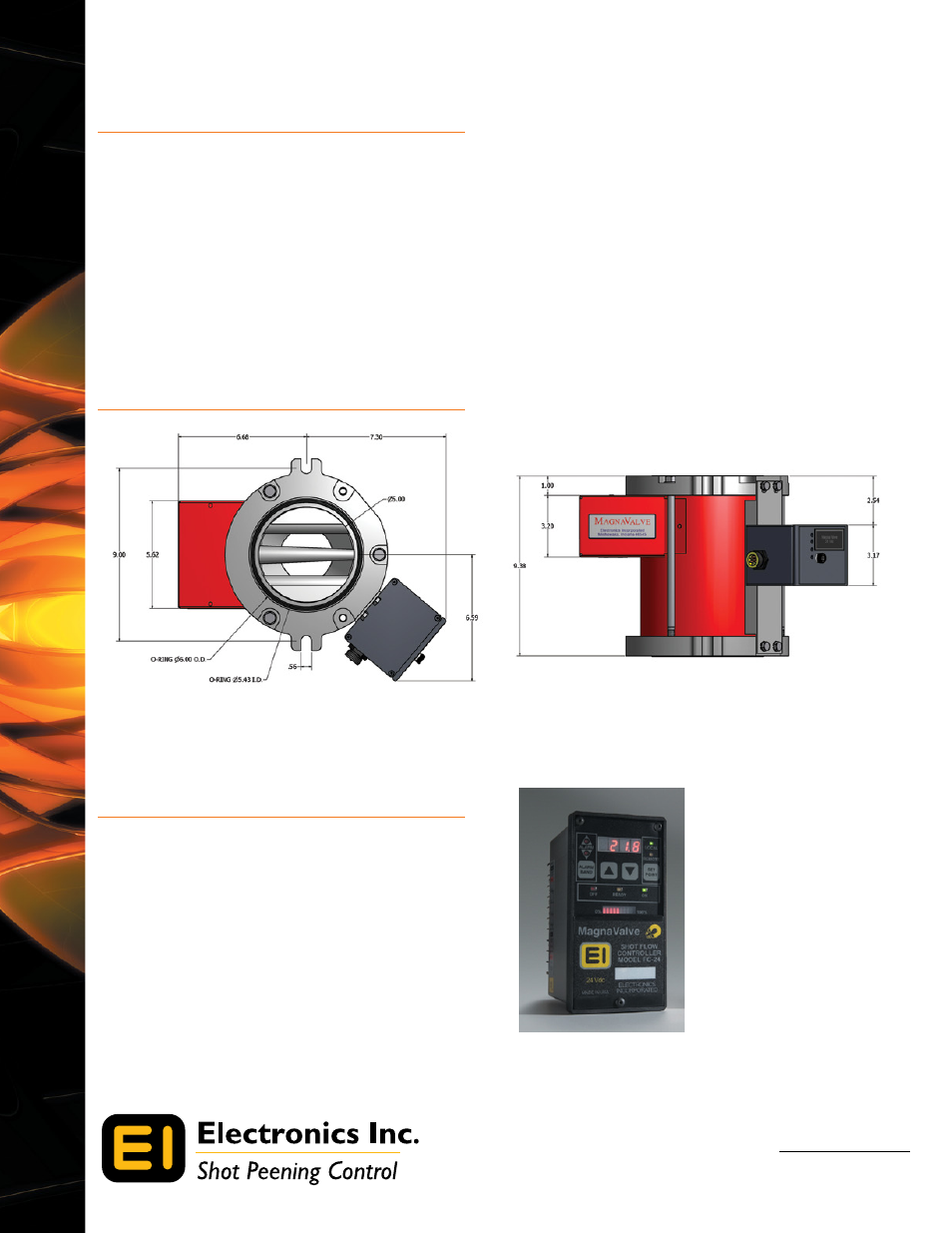

Valve Dimensions
Servo Command Input 0 - 10 Vdc
Flow Enable Input
24 Vdc
Flow Sensor Output 0 - 10 Vdc
Display LEDs Valve On
Command Input
Flow Enable
+24V Power
* Flow rate based on S230 cast steel shot
FC-24 Controller Specifications (sold separately)
Flow Sensor Input from MagnaValve 0 - 10 Vdc into 100K
Flow Enable Input from PLC 24 Vdc @ 10 mA
Flow Enable Output to MagnaValve 24 Vdc @ 10 mA
Servo Command Output to MagnaValve 0 - 10 Vdc
Remote Setpoint Input from PLC 0 - 10 Vdc
