Model vlp1000 magnavalve – Electronics VLP1000VAR User Manual
Page 2
56790 Magnetic Drive, Mishawaka, IN, USA 46545 (574) 256-5001

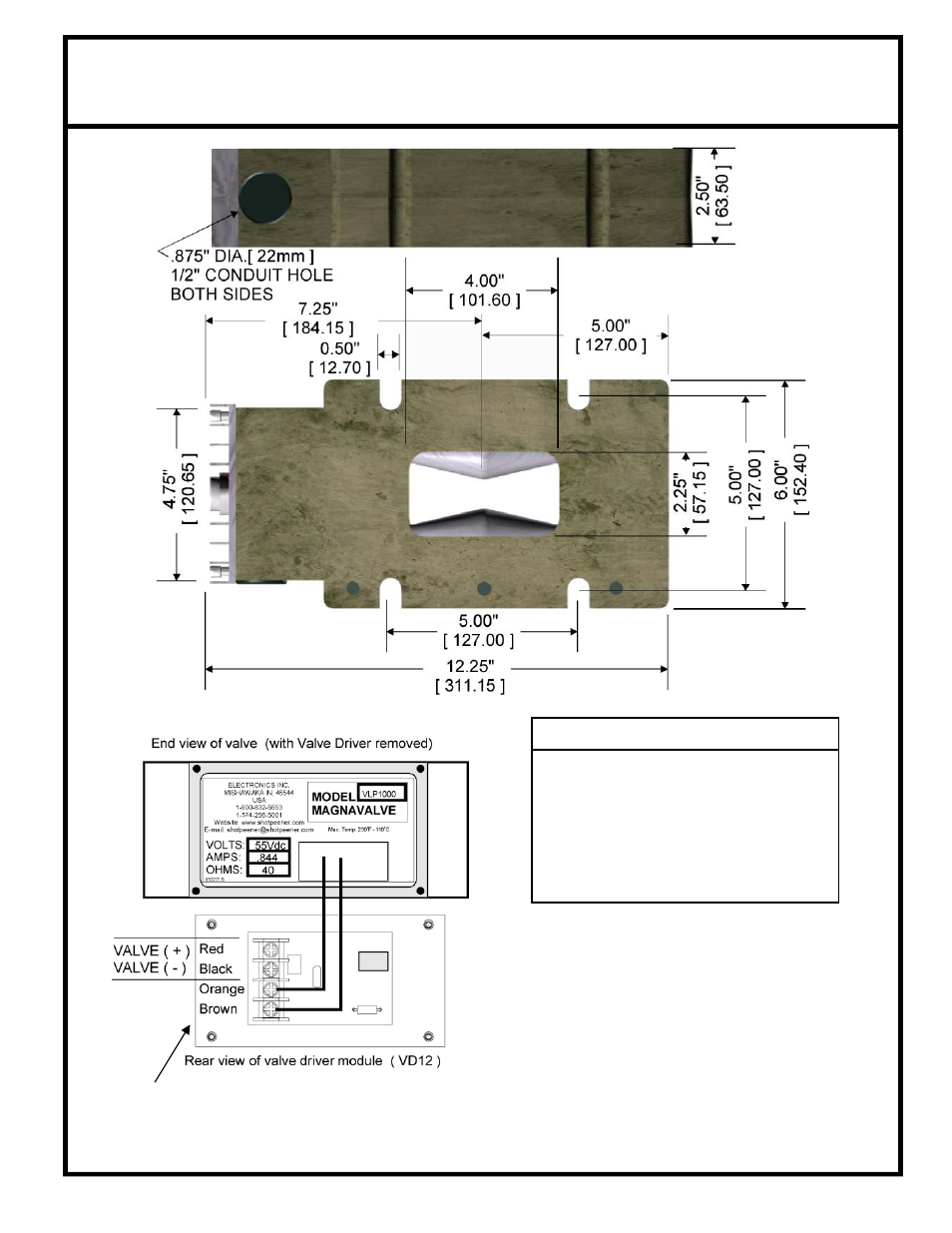

MODEL VLP1000 MagnaValve
v
lp1000da
ta.
pub
5/
13/
2
00
8
SPECIFICATIONS
Input:
+55Vdc @ .844A PWM
Output: 200-1000lbs/min
(approx)
Temp. Range: 23-167° F (0-75° C)
*32-212° F (0-100° C)
Weight 16lbs/
8kg
*If valve driver is mounted in remote location.
Notes:
• 2 wire connection. Use 16 AWG wire size
• Valve must be within 1.5M (5ft) of wheel
feed spout for best performance
• There must be a 3“ diameter unrestricted
flow path above the valve. Do not use slide
gate or fixed orifice to limit the media flow
since this will defeat the “shot blanket” that
protects the valve parts from erosion.
VD12 replacement part #: 999187
Remove and mount remote for temperatures above 167° F (75° C)
