Electronics 500-P - Manual (Page 2)

56790 Magnetic Drive, Mishawaka, IN, USA 46545 (574) 256-5001

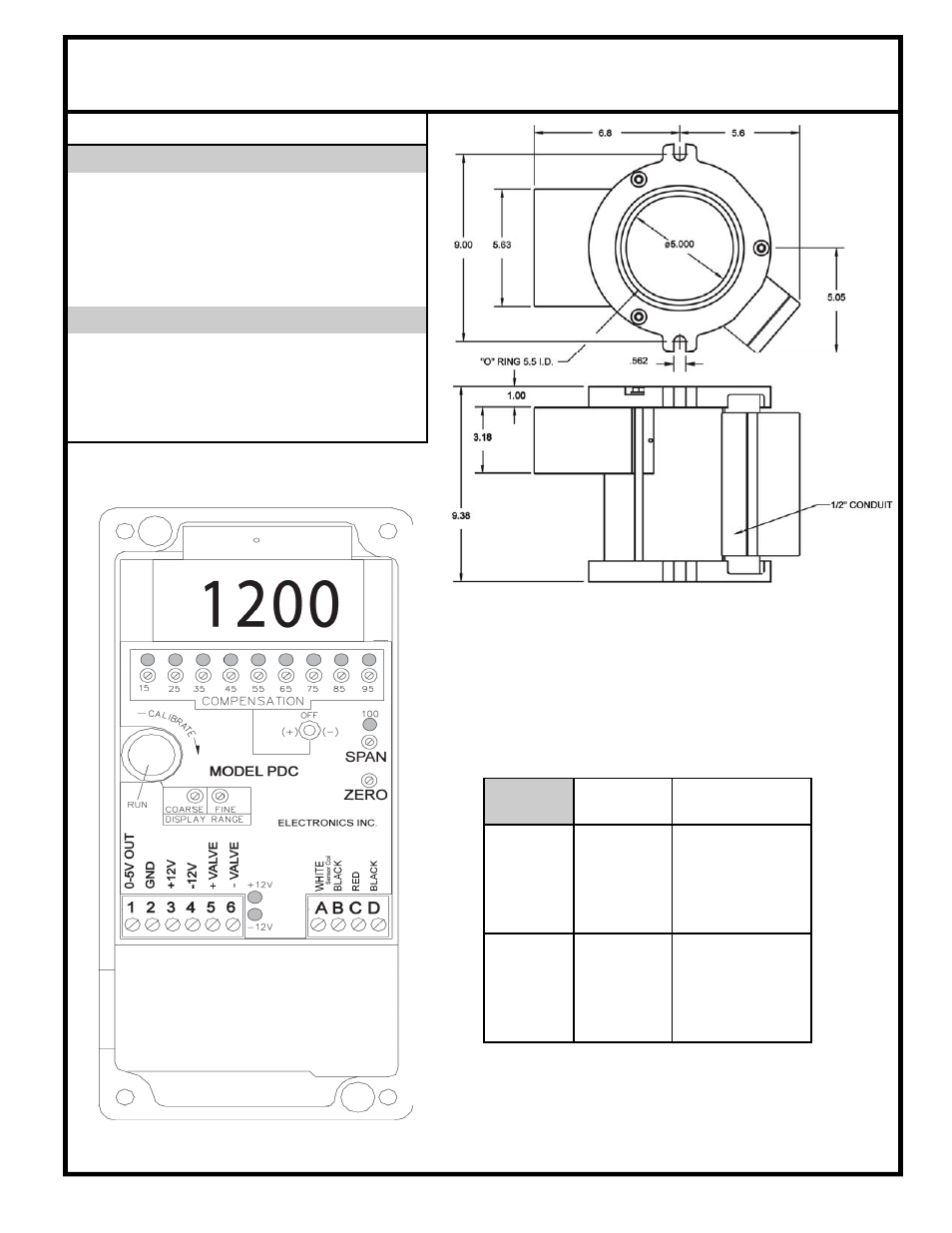

MODEL 500P MagnaValve
500P
dat
a
.p
ub 8/1
9
/2
0
0
8
Specifications
Sensor
Power: ±12Vdc from FC Control
Display: 4-digit
Output: 0-5Vdc to FC Control
Adjustments: Zero, Span, Linearity
Accuracy: ±2% (of Full Scale)
Valve
Power: +55Vdc @.5A from FC Control
Maximum Flow: 1200 lbs/min (500kg/min)
Range: 200-120lbs/min (100-500kg/min)
Temp: 0-75° C (70-110°F)
We will calibrate the MagnaValve at the factory prior
to shipment. Please specify the type and size of me-
dia that you will be using with each valve. If your
maximum expected flow rate is less than 1200 lbs/
minute or 500 kg/minute you may request a lower
range setting. This will improve the valve accuracy
at your actual operating conditions.
Be sure to specify the FC Control Full Scale Display
range when you place your order for the control.
MagnaValve
Range
FC Control
Full Scale Display
Lbs/minute 200-1200 1200
150-1000 1000
125-800 800
90-600 600
Kg/minute 75-500 500
60-400 400
50-350 350
45-300 300
