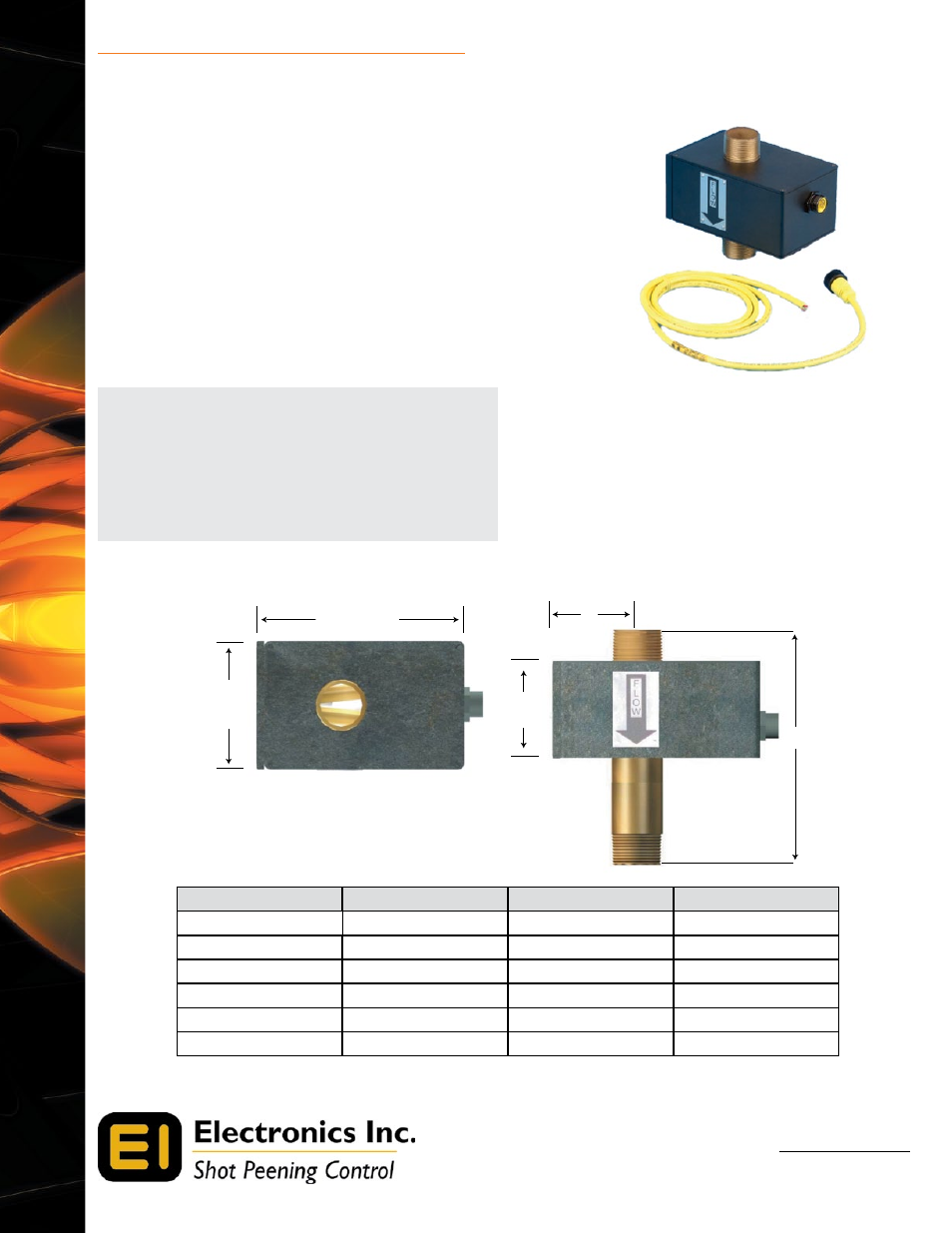

24 Vdc Series MagnaValve
Magnetic Media Valve for Air Blast Machines
Electronics Inc.
56790 Magnetic Drive
Mishawaka, Indiana 46545 USA
(574)256-5001
www.electronics-inc.com
Rev 07/12
Specification is subject to change without notice
Valve Specifications
Power +24 Vdc @ 2A (50 VA)
Media All ferrous media except
Cast Stainless Steel
Maximum Pressure 100 PSI
Mode Normally Closed
Temperature Range 40 - 110º F (5 - 43º C)
Servo Command Input 0 - 10 Vdc
Flow Enable Input 24 Vdc
Flow Sensor Output 0 - 10 Vdc
Display LEDs Valve On
Command Input
Flow Enable
+24V Power
Control - FC-24 Controller (sold separately)
Flow Sensor Input from MagnaValve 0 - 10 Vdc into 100K
Flow Enable Input from PLC 24 Vdc @ 10 mA
Flow Enable Output to MagnaValve 24 Vdc @ 10 mA
Servo Command Output to MagnaValve 0 - 10 Vdc
Remote Setpoint Input from PLC 0 - 10 Vdc
24 Vdc Series MagnaValves come with 6 ft. (1.83 m) cable
6.5”
(165.1 mm)
4.2’’
(106.7 mm)
A
3.0’’
(76.2 mm)
B
Top View Side View
Model Number Pipe Size “A” “B”
576-24 1'' NPT 2.5” (63.5 mm) 6.0’’ (152.4 mm)
577-24 1’’ NPT 2.5” (63.5 mm) 6.0’’ (152.4 mm)
578-24 1.25’’ NPT 2.5” (63.5 mm) 6.0’’ (152.4 mm)
579-24 1.25’’ NPT 2.5” (63.5 mm) 8.0’’ (203.2 mm)
580-24 2’’ NPT 3.0’’ (76.2 mm) 8.0’’ (203.2 mm)
590-24 2'' NPT 3.0’’ (76.2 mm) 8.0’’ (203.2 mm)
