AC Controller
MagnaValve® Motor Current Controller
Electronics Inc.
56790 Magnetic Drive
Mishawaka, Indiana 46545 USA
(574)256-5001
www.electronics-inc.com
Specification is subject to change without notice
Rev 2/13
MagnaValve is a registered trademark of Electronics Inc.

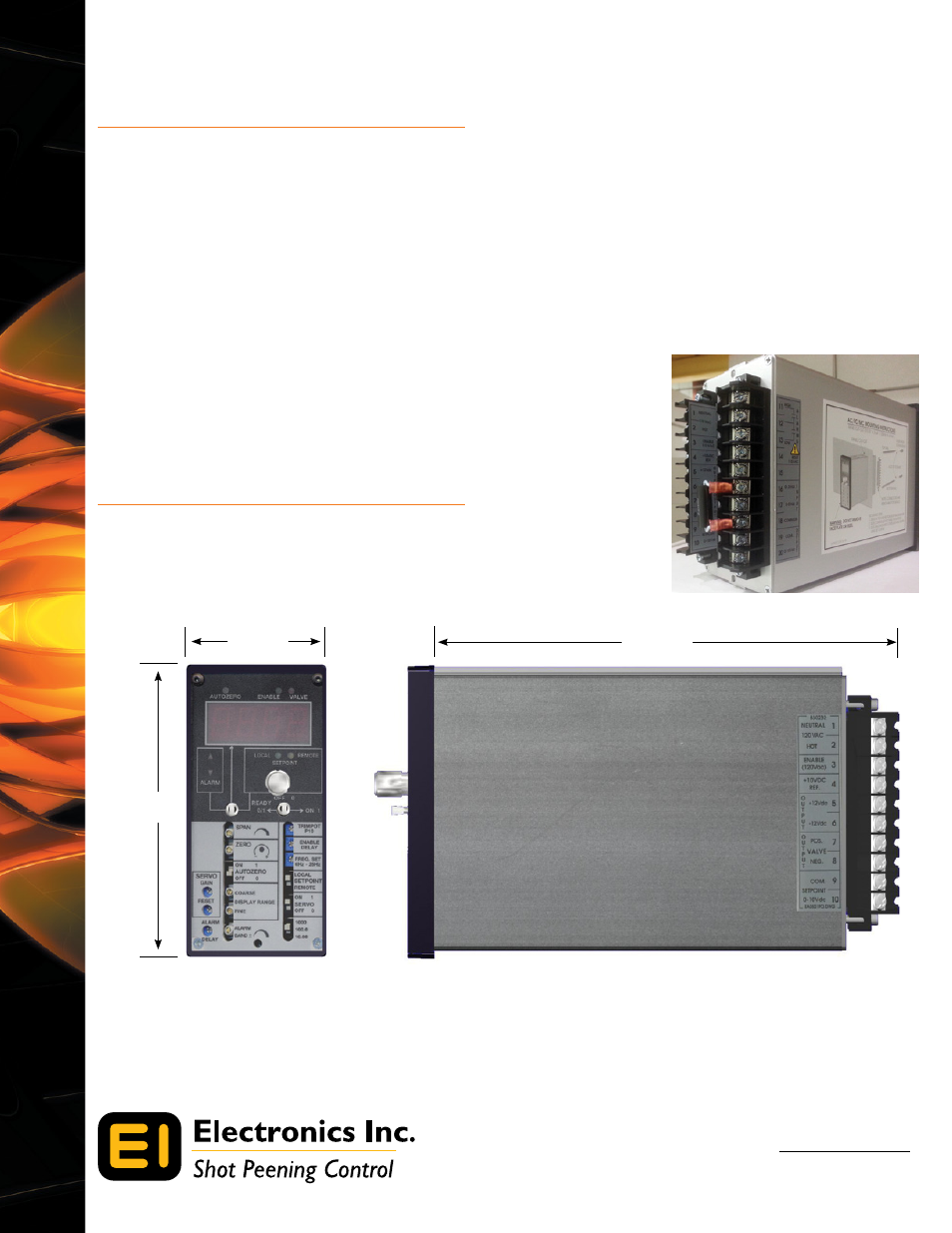

2.84''
(72 mm)
9.0''
(229 mm)
5.67''
(144 mm)
Shown with front panel removed
Panel Cutout Dimensions:
2.64’’ W x 5.35’’ H (67 mm x 136 mm)
Standard DIN opening
Specifications
Power
115 Vac, 50/60 Hertz, 50 VA
Inputs
0-5 Amps (From Wheel Motor)
Remote Command Setpoint (0 -10Vdc)
Enable (115Vac)
Alarm Reset (115 Vac)
Outputs
Valve Power 50Vdc PWM at 8 Hertz
Recorder Analog Output (0 -10Vdc)
Alarm Relay Contacts (115Vac @ 1Amp) Max.
Excitation Output Voltage ±12Vdc (100mA)
Reference Output Voltage +10Vdc (10mA)
Specifications
Weight
5 lb / 2.27 Kg
Display Range
0 -1999
Decimal Points
1999, 199.9, 19.9
Alarm Band
0 -50% of full scale
Alarm Delay
0 -10 seconds
Reset Delay
0 -10 seconds
Auto-Zero
±20% of full scale
Temperature Range 0 - 50˚C (32 - 122˚ F)
Dimensions
The AC Controller comes
with a 0.05 Ohm current
shunt for customer’s
0-5 Amp input signal.
It is placed on screw
terminals #16 and #18
for customer connection
to wheel motor current
transformer output
leads.
