VLP1000/VAR MagnaValve
Magnetic Valve for Wheel Machine Applications
Electronics Inc.
56790 Magnetic Drive
Mishawaka, Indiana 46545 USA
(574)256-5001
www.electronics-inc.com
Specification is subject to change without notice
Rev 1/14
Specifications
Power .................. 0 - 120 Vac @ 0.1 A Weight ..................................................16 lb/7 kg
Media ................... Steel Shot and Grit Temperature Range ........................32˚ - 212˚ F (0˚ - 100˚ C)
Flow Output ...... 0 - 1000 lb/min (0 - 454 kg/min)* Indicator ...............................................Red Neon Lamp
Material ............... Cast Aluminum
* Flow rates based on S230 shot

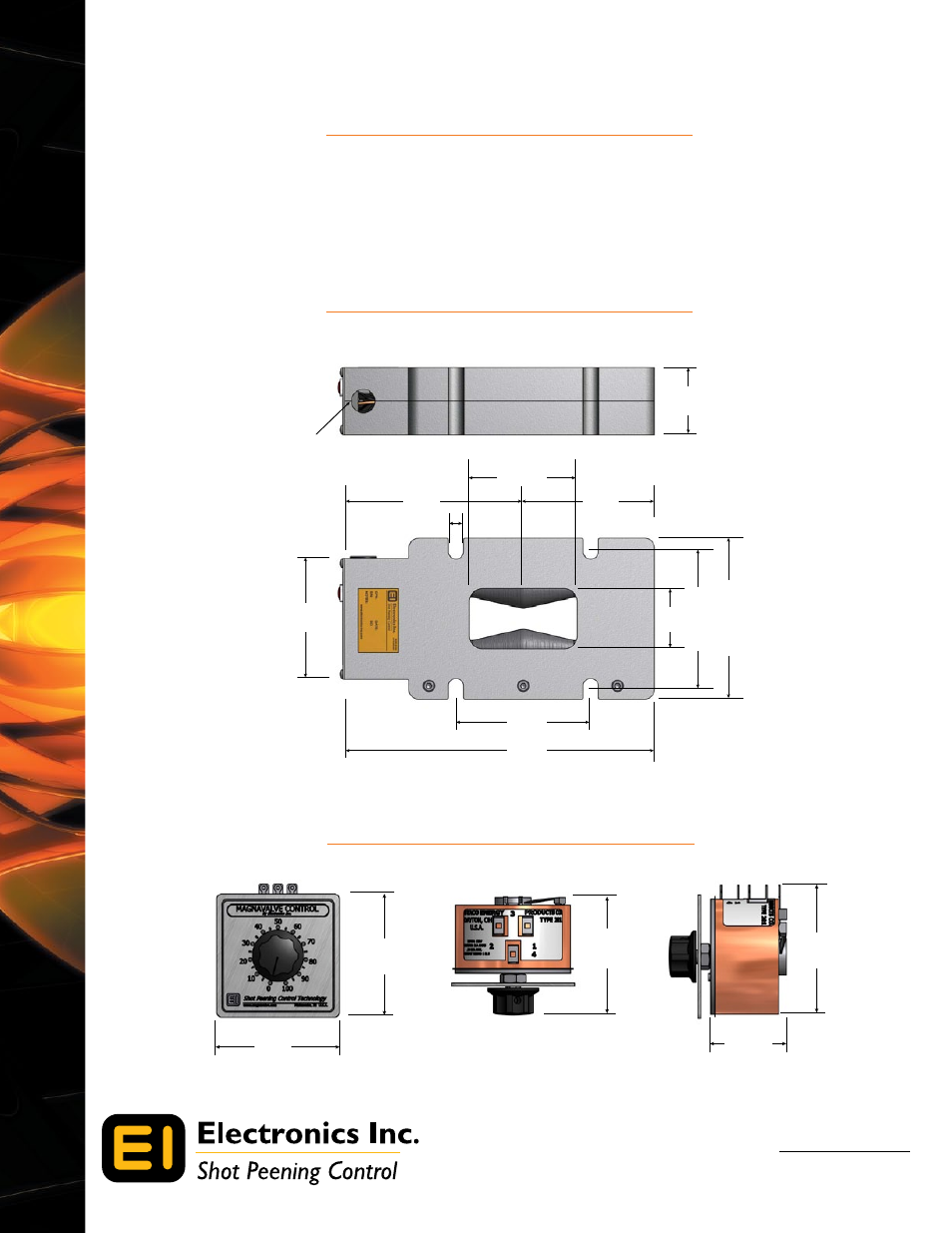

VLP1000/VAR Dimensions
Inches [Metric]
Variac Dimensions
Inches [Metric]
3.28”
[83.3]
1.88”
[47.6]
2.88”
[73.2]
2.98”
[75.7]
3.02”
[76.7]
