FC Controller
Media Flow Controller
Electronics Inc.
56790 Magnetic Drive
Mishawaka, Indiana 46545 USA
(574)256-5001
www.electronics-inc.com
Rev3 01/12
Specification is subject to change without notice
Specifications
Power 115 Vac, 50/60 Hertz
50 VA
Inputs
Flow Sensor Input
0 - 5 Vdc
Outputs
Valve Power
50 Vdc PVM
at 8-25 Hertz
Excitation Voltage ±12 Vdc @ 100 mA
Reference Voltage +10 Vdc @ 10 mA

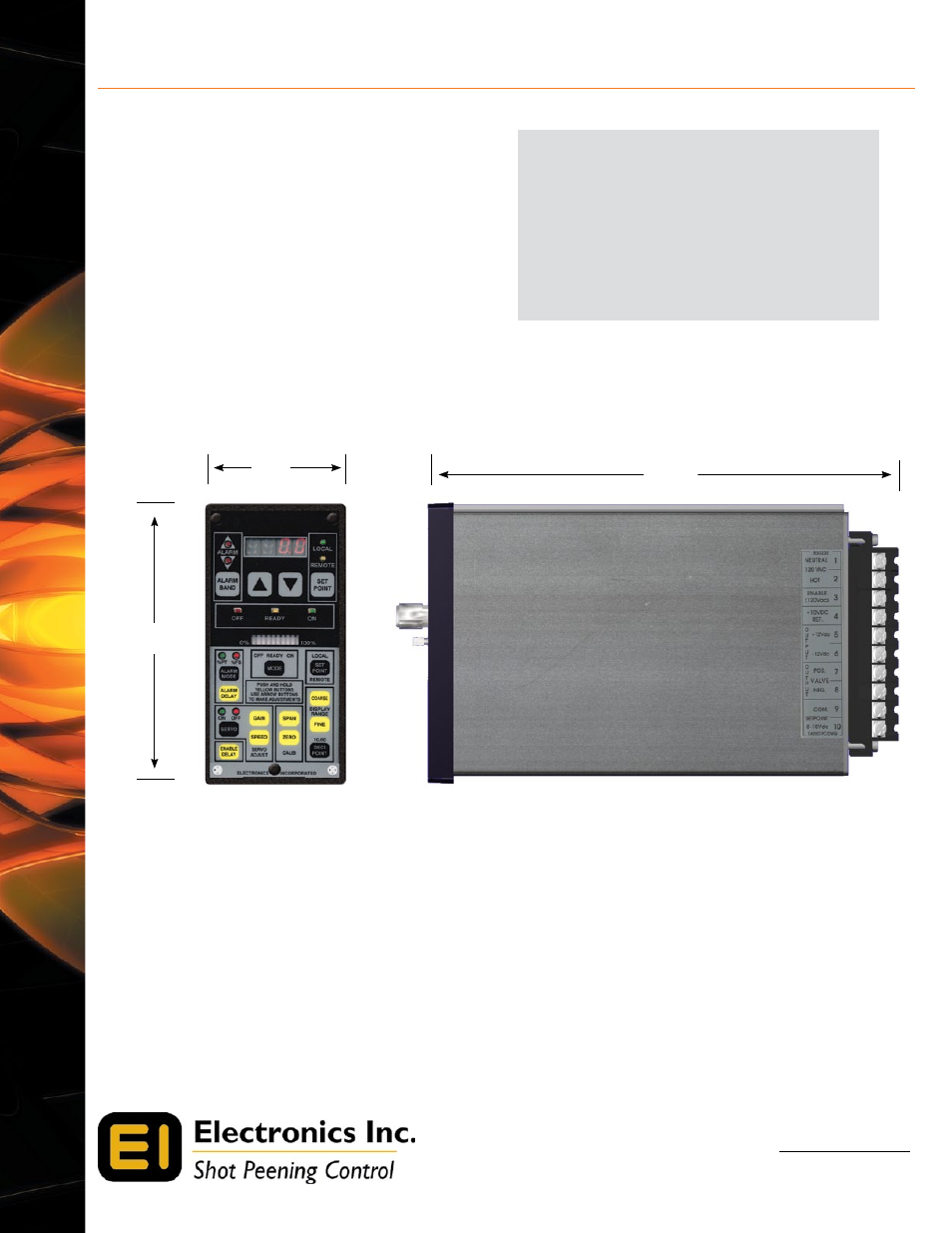

2.84''
(72 mm)
9.00''
(229 mm)
5.67''
(144 mm)
Shown with front panel removed
Panel Cutout Dimensions:
2.64’’ W x 5.35’’ H (67 mm x 136 mm)
Weight 5 lbs
Display Range 0 - 1999
(Expanded range available upon request)
Decimal Points 1000, 100.0, 10.0
Alarm Band 0 - 50% of full scale
Alarm Delay 0 - 10 seconds
Enable Delay 0 - 10 seconds
Temperature Range 0 - 50˚C (32 - 122˚ F)
