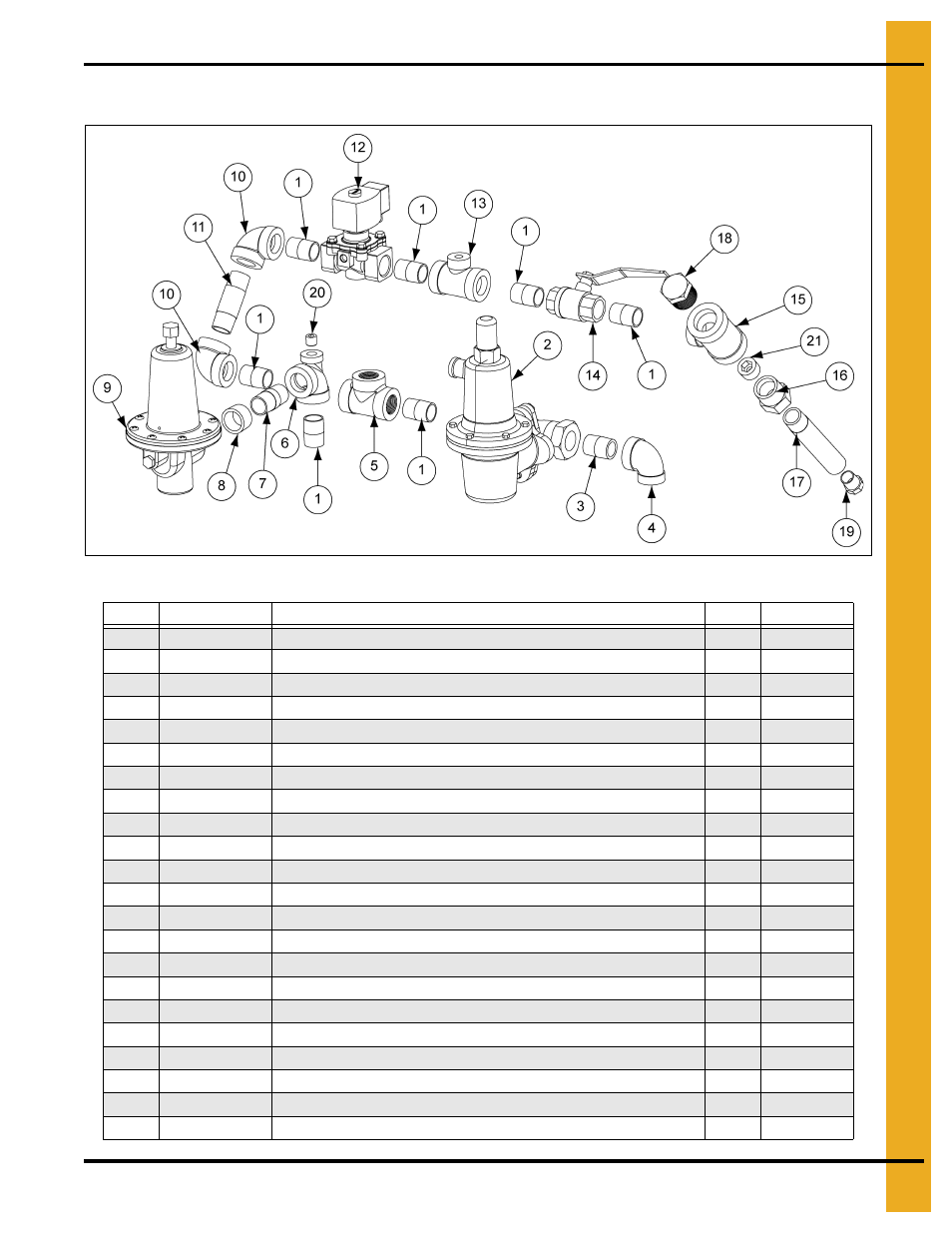

24" and 28" LP Pipe Train Assembly
24" and 28" LP Pipe Train Assembly Parts List
Ref # Part # Description Qty Diameter
1 THH-4121 Nipple, 3/4" Close SCH 40 Black 7 24" and 28"
2 D03-0880 Regulator, LP 5-20 PSI Spring, 0.5 Orifice, 3/4" NPT 1 24" and 28"
3 D67-0021 Nipple, 3/4" Close SCH 80 Black 1 24" and 28"
4 THH-4149 Elbow, 3/4" x 1/2" Reducing 90° SCH 40 Black 1 24" and 28"
5 THH-4124 Tee, 3/4" x 3/4" x 3/4" SCH 40 Black 1 24" and 28"
6 THH-4158 Tee, 3/4" x 1/4" x 3/4" SCH 40 Black 1 24" and 28"
7 THH-4125 Nipple, 3/4" x 2" SCH 40 Black 1 24" and 28"
8 007-1338-8 Bushing, Flush 1" to 3/4" 1 24" and 28"
9 D03-0881 Valve, Relief - 15-50 PSI Spring LP, 1" NPT, 300F Rating 1 24" and 28"
10 THH-4120 Elbow, 3/4"-90° SCH 40 Black 2 24" and 28"
11 THH-4136 Nipple, 3/4" x 3" SCH 40 Black 1 24" and 28"
12 056-2223-8 Valve, Solenoid 3/4" NPT 115V Din 50 PSI 1 24" and 28"
13 THH-4154 Tee, 3/4" x 3/4" x 1/4" SCH 40 Black 1 24" and 28"
14 D03-0837 Valve, 3/4" NPT Full Port, Lever, CSA, Brass or Bronze 1 24" and 28"
15 D08-0017 Tee, 1" x 1" x 3/4" SCH 40 Black 1 24" and 28"
16 HF-7794 Orifice Holder - Quad Heater - 3/4" 1 24" and 28"
17 HH-7026 Orifice Pipe, 3/4" x 5-1/2" 1 24" and 28"
18 D08-0014 Plug, 1" Square Black 1 24" and 28"
19 HF-7126 Orifice (3/4) Drilled 3/8" 1 24" and 28"
20 FLX-3788 Plug, 1/4" NPT Pipe 1 24" and 28"
21 HF-7749 Orifice Plug (3/4) Drill: 17/64" 1 24"
21 HF-7809 Orifice Plug (3/4) Drill: 5/16" 1 28"
