6. Installation
PNEG-1094 Farm Grain Bin - 4" Corrugation 37
Eave Starter Bracket and Ladder Placement for External Ladder without
Cage or Platform
Ladder placement on the grain bin is very important. Refer to Figure 6G and follow the correct dimensions
as shown. The ladder starter brackets must be located in line with the horizontal seam. Check the 4' ladder
section to make sure the ladder rung dimples are to the top surface and attach to the starter brackets using
the hole located 1" from top of the ladder. All standoff brackets must be located in horizontal seam holes
(repeating every 44") and attached to each additional 4' ladder section required. Use 5/16" x 3/4" bin bolts
for all connections. It is also necessary to field drill a 3/8" hole on the ladder section for each starter bracket
(L.H. and R.H.)

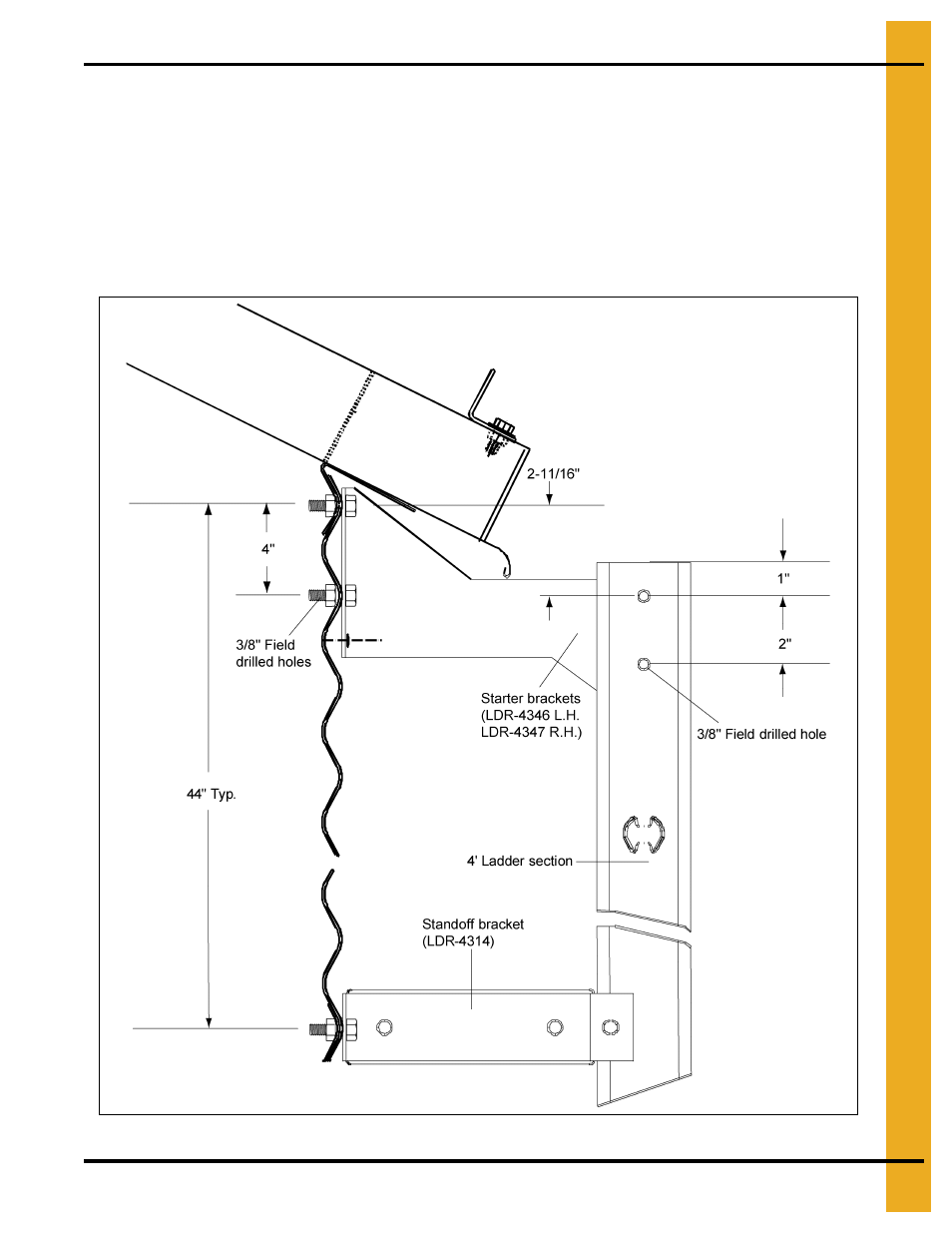

Figure 6G
