PNEG-1435 6", 8" & 10" Utility & Bulk Augers 29
4. ASSEMBLY & INSTALLATION
3. Once the pulley is appropriately positioned, tighten the Setscrew with a hex head wrench
to secure it to the drive shaft (See Figure 4S) .

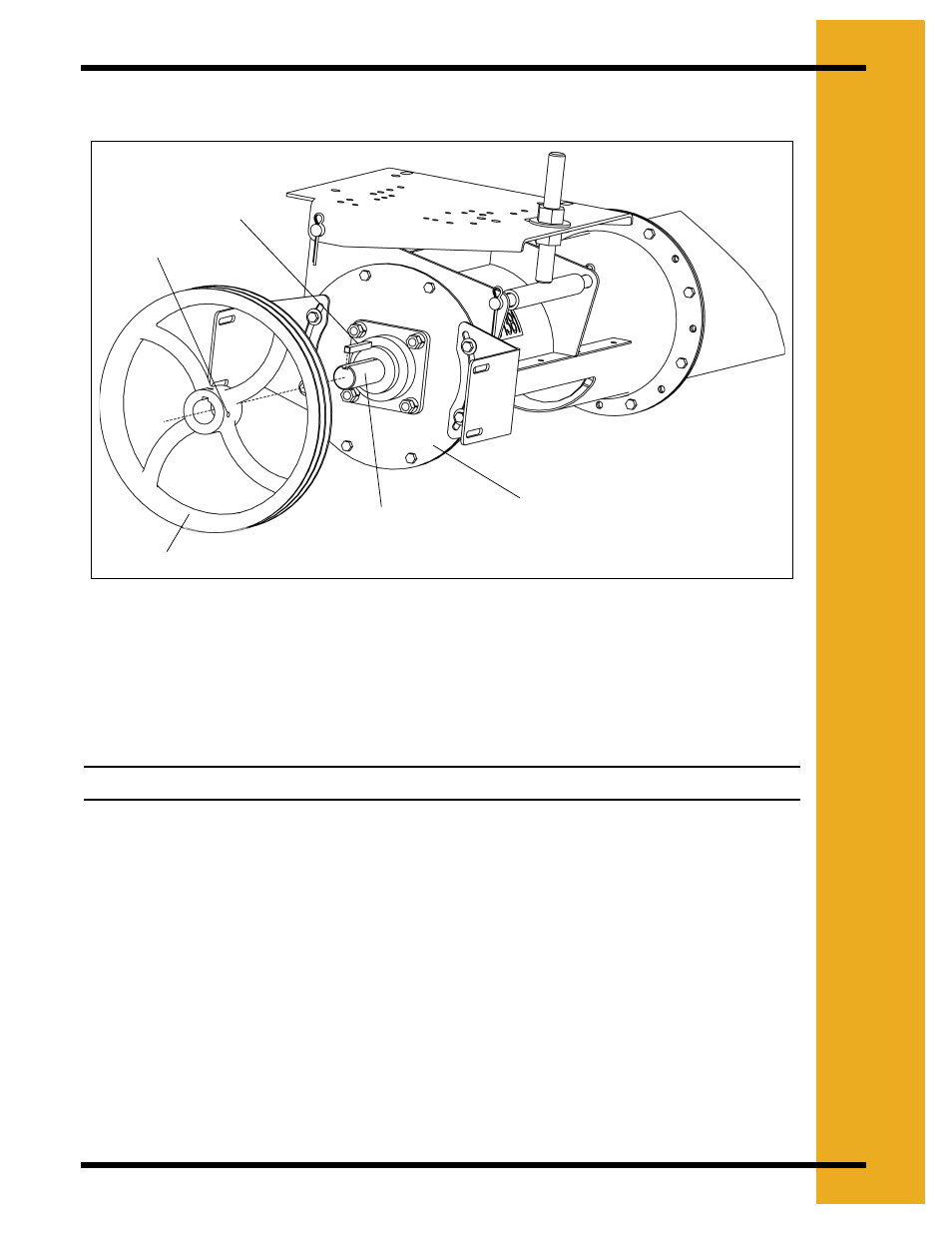

Figure 4S
Tightening the Lock Collar
1. Using a punch and hammer, drive the lock collar clockwise (the same direction as the shaft
rotation). Once the lock collar is set in place, use a hex head wrench to tighten the lock
collar by tightening the Setscrew.
Note: If the lock collar is not turned far enough, the Setscrew will not lock it into place.
Drive Shaft
Flight Pulley
Bearing Plate
Key
Set Screw
