PNEG-1435 6", 8" & 10" Utility & Bulk Augers
25
4. ASSEMBLY & INSTALLATION
Installing the Motor Mount Adjuster
1. Place Motor Mount Adjuster between the Back Plate and Head Plate on the Discharge
Tube.
2. Insert Pivot Rod through the Tube plates and Motor Mount Adjuster. Secure in place with
two (2) 3/16" x 2" cotter pins
.

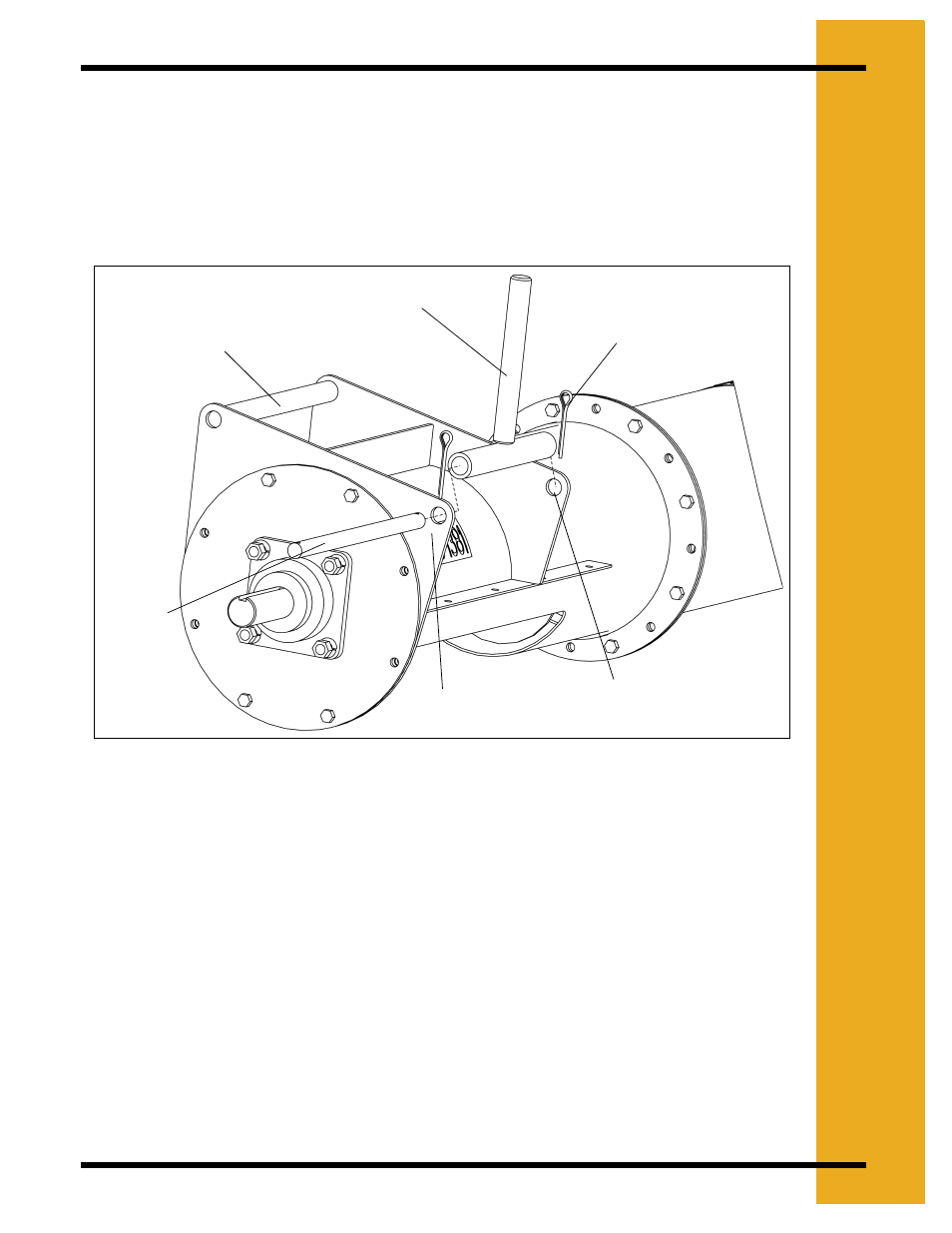

Figure 4N
Motor Mount Adjuster
Pivot Tube
Pivot Rod
Head Plate
Cotter Pins
Back Plate
