3. Fan/Heaters
PNEG-1471 Vision Series Model 2400 Portable Dryer 43

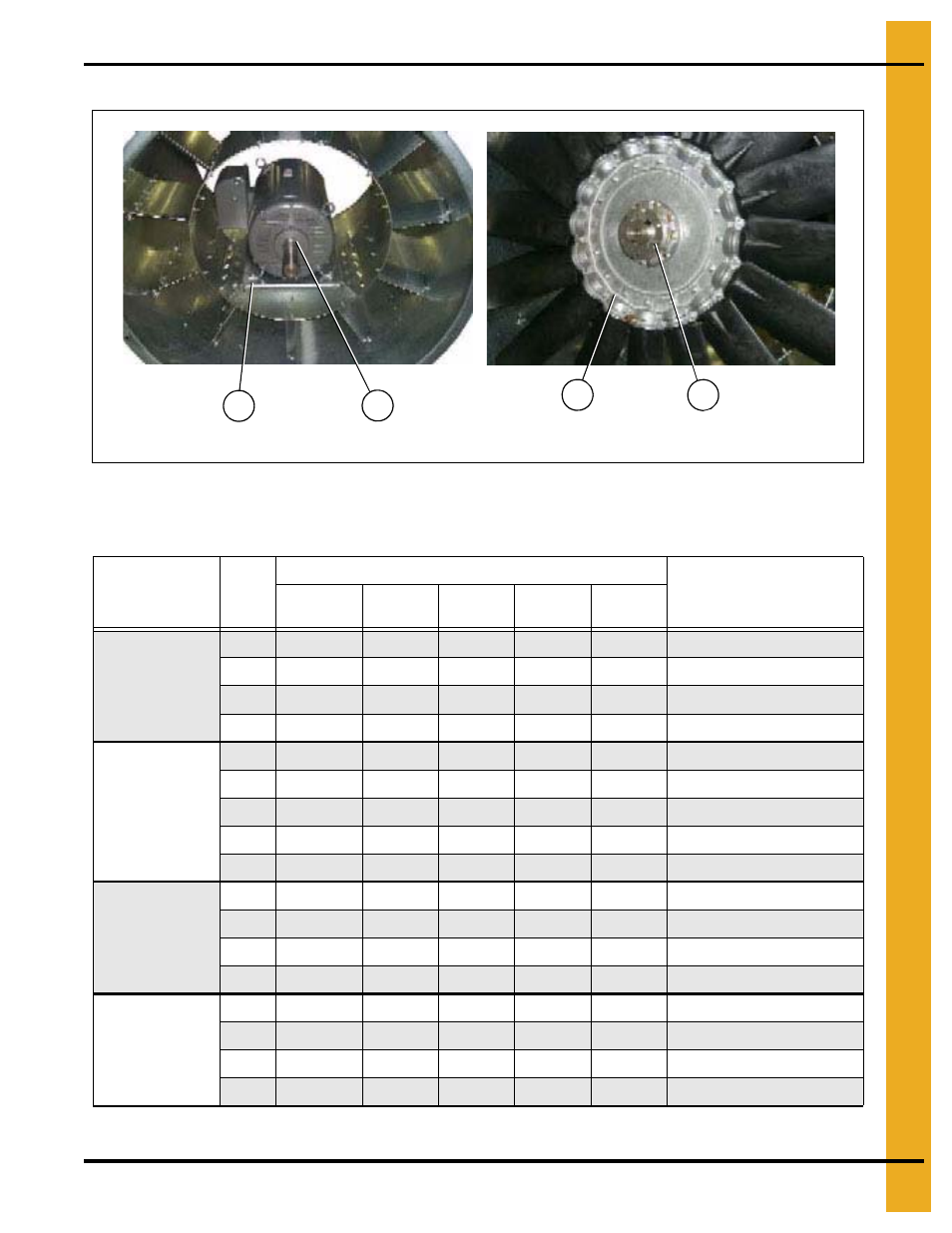

Fan Motor, Motor Mount and Fan Blade
Figure 3C
Fan Motor, Motor Mount and Fan Blade Parts List
Fan/heater;
(Diamater, HP)
Ref #
Part #
Description
220V
1 PH
208V
3 PH
220V
3 PH
440V
3 PH
575V
3 PH
28" 12 HP
1 D01-0530 D01-0530 D01-0530 D01-0530 D01-0530 Motor Mount
2 CD-0110 CD-0239 CD-0239 CD-0239 D03-0193 Motor
3 D03-0302 D03-0302 D03-0302 D03-0302 D03-0302 Fan Blade
4 PT0778 PT0778 PT0778 PT0778 PT0778 Bushing
36" 12 HP
1 D01-1478 D01-1478 D01-1478 D01-1478 D01-1478 Motor Mount
* CD-0233 CD-0233 CD-0233 CD-0233 CD-0233 Motor Mount Adapter
2 CD-0110 CD-0239 CD-0239 CD-0239 CH-6819 Motor
3 D01-0468 D01-0468 D01-0468 D01-0468 D01-0468 Fan Blade
4 FH-1009 FH-1009 FH-1009 FH-1009 FH-1009 Bushing
36" 15 HP
1 D01-1478 D01-1478 D01-1478 D01-1478 D01-1478 Motor Mount
2 002-1073-2 CH-1050 CH-1050 CH-1050 CH-6820 Motor
3 D82-0002 D82-0002 D82-0002 D82-0002 D82-0002 Fan Blade
4 FH-1009 FH-6963 FH-6963 FH-6963 FH-6963 Bushing
40" 25 HP
1 N/A D01-1477 D01-1477 D01-1477 D01-1477 Motor Mount
2 N/A C-2049 C-2049 C-2049 CH-6692 Motor
3 N/A D72-0003 D72-0003 D72-0003 D72-0003 Fan Blade
4 N/A CE-00617 CE-00617 CE-00617 CE-00617 Bushing
* Not Shown
2 1
4 3
Fan motor and motor mount Fan blade and bushing
