1. Bottom Module
PNEG-1471 Vision Series Model 2400 Portable Dryer 13
Outside Screens and Meter Roll Access Door
Figure 1J
Outside Screens and Meter Roll Access Door Parts List
Ref # Part # Description
Qty
2414 2418 2420 2422 2426
1 D01-0127 Screen, Roof, Ga, 094 14 18 20 22 26
2 D31-0013 Screen, Outside Wall, Ga, 094 14 18 20 22 26
3 D01-0128 Screen, Hopper, Ga, 094 14 18 20 22 26
4 D01-0152 Top Angle Gusset - L.H. 12 16 18 20 24
4a D01-0153 Top Angle Gusset - R.H. 2 2 2 2 2
5 D01-0050P Connector Sheet, Perforated 14 18 20 22 26
6 D01-0045P Access Door, Perforated 14 18 20 22 26
7 D01-0039 Door Latch 28 36 40 44 52
8 S-6552 Pin Hair Clip 3/32" ZN Plated 28 36 40 44 52
9 DC-1229 Decal, Warning Meter Roll Rot. 14 18 20 22 26
10 D01-0048 Trough Panel Weldment 14 18 20 22 26
8

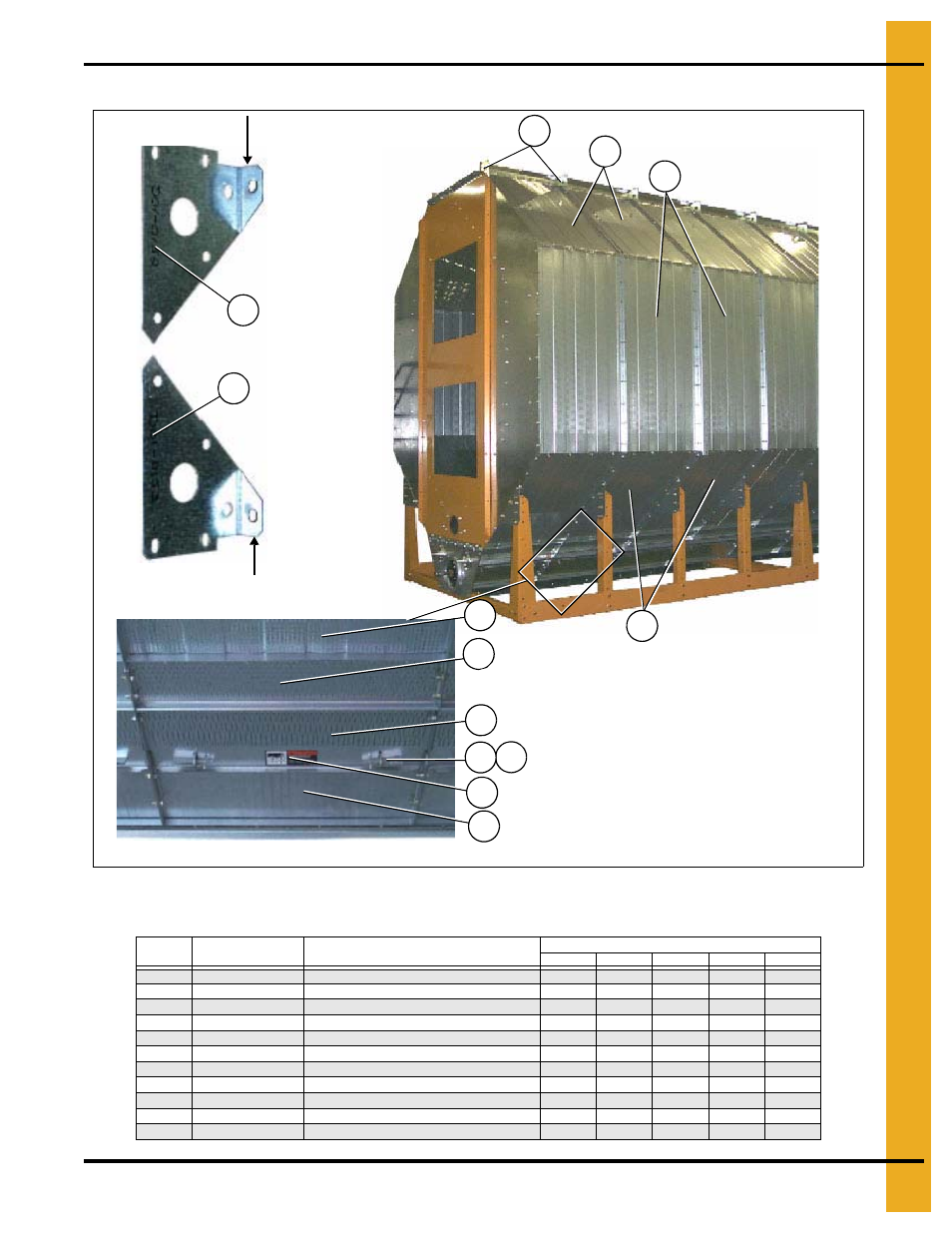

*NOTE: Ref #4 is pointing to the top edge angle
gusset. Two (2) types of gusset are there on the
dryer. The photo above distinguishes the
difference between the two. The arrows are
pointing to a tab on the gusset that makes them
different (tabs are “bent” up in photo). Ref #4a is
used in two (2) places only; 1) front right of dryer
2) rear left of dryer, all others are Ref #4.
* 4
1
2
4a
4
3
3
5
6
7
9
10
Meter roll access door
