PNEG-1894 Top Dry Chute Controller 9
4. Installation
Chute Controller Installation for Top Dry System
The chute controller is mounted to the side of a Top Dry bin and actuates the chutes that allow the grain
to transfer from the drying floor to the bin floor.
NOTE: Before beginning the chute controller installation, make sure the pulley bracket is properly
installed. The pulley bracket must be position above the chute controller location before installing
the stiffener mounting plate.
Locating the Chute Pulley Assembly
1. Position the pulley in the hole that is located 9-3/8" (23.8 cm) horizontally from the center of the
stiffener. NOTE: When positioning the pulley, ensure the pulley cable does not interfere with the
dump chutes. This can only be accomplish at every other stiffener.

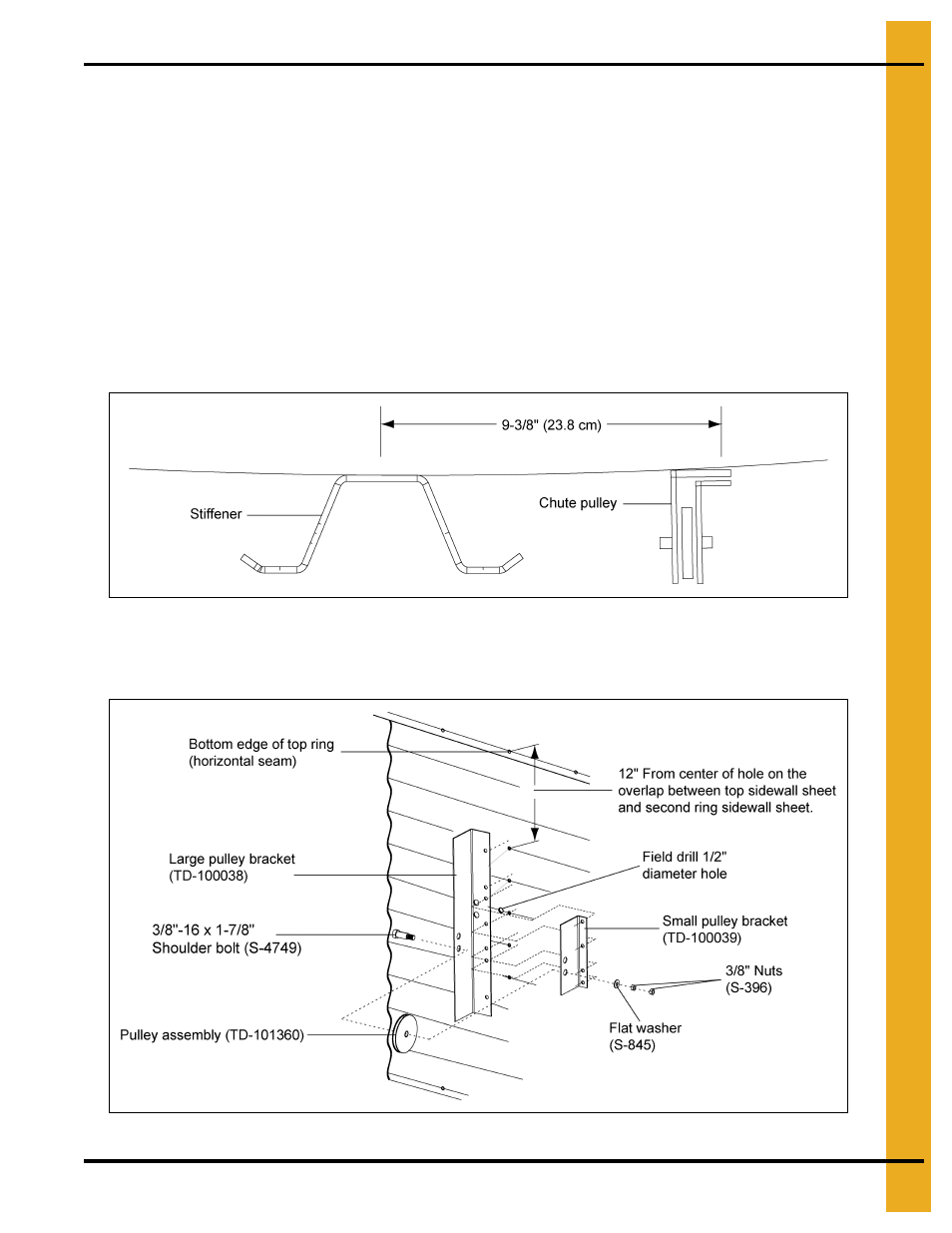

(See Figure 4A below and
Figure 3A on Page 8.)
Figure 4A
Field drill five (5) 3/8" diameter holes as shown in Figure 4B . Attach the pulley assembly with
5/16" x 3/4" bolts with the neoprene on the inside of the bin. (See Figure 4B.)
Figure 4B
