4. Installation
PNEG-1894 Top Dry Chute Controller 13
Assembling the Chain Guard
1. Position the chute controller assembly so that all sides are accessible. Remove the cover from the
chute position controller enclosure.
2. Align the top and bottom tabs of the rear chain guard (B) with holes in the idler sprocket mounting
brackets (C) and attach by inserting flange bolts (D) through the sides and tightening with flange
nuts (E).
(See Figure 4F.)
3. Feed chain (A) that is part of the chute position controller drive from the chute position controller
around the small sprocket and out through the back panel and in between the idler sprocket mounting
brackets (C).
(See Figure 4F.)
4. Replace cover and secure for lifting. (See Figure 4F.)

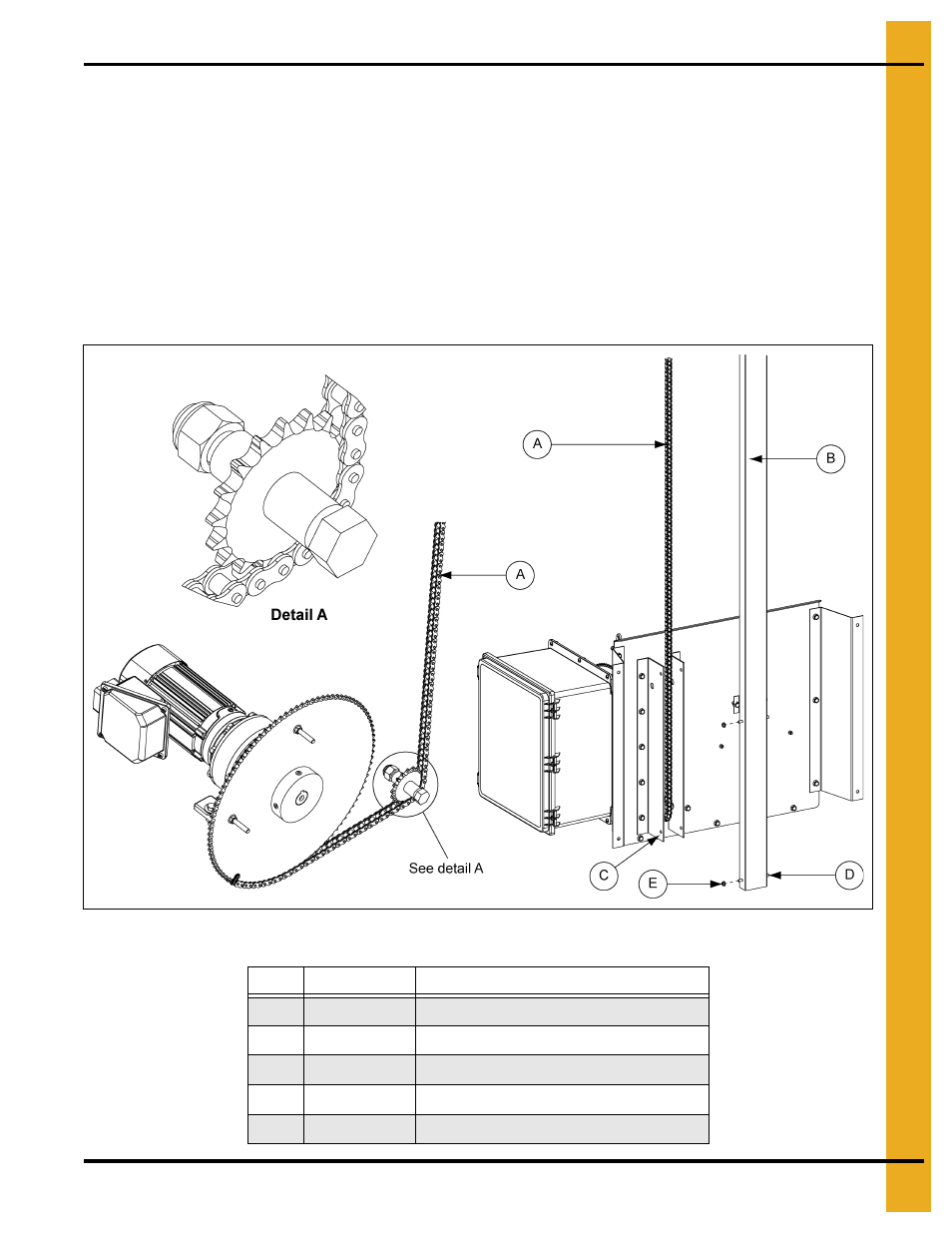

Figure 4F
Ref # Part # Description
A TD-101357 #40 Roller Chain
B TD-101336 Rear Chain Guard
C TD-101332 Idler Sprocket Mounting Bracket
D S-6606 Flange Bolt 5/16"-18 x 3/4" ZN Grade 5
E S-3611 Flange Nut 5/16"-18 YDP Grade 2
