Deluxe Centrifugal Heater
INSTALLATION
Electrical Installation (460v Fans)
1. Connect power cord to fan control box.
2. Make field connections of wires in fan box
as shown in Figure 2. 110V power supply

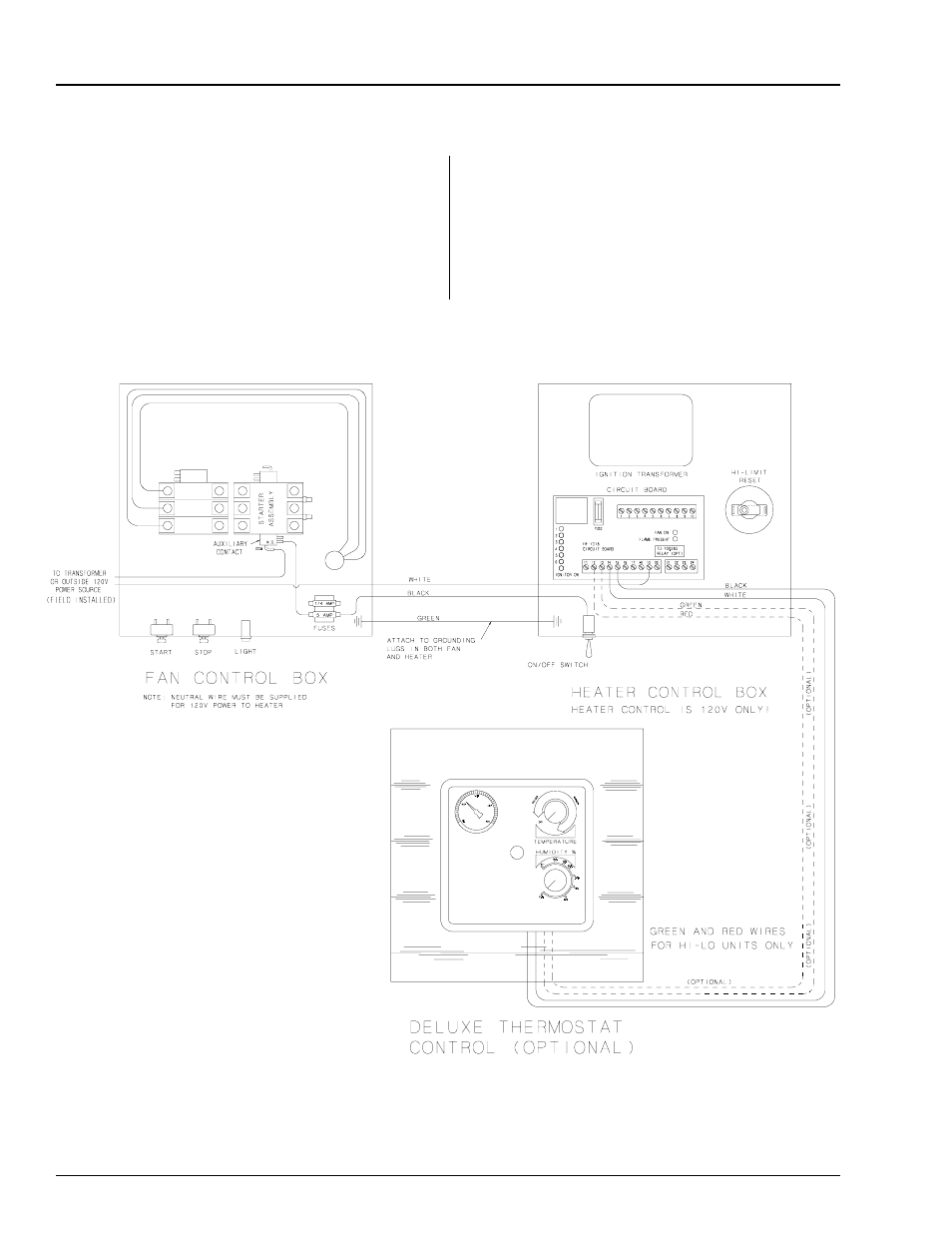

Figure 2: 460 volt fan control box.
3. Connect deluxe thermostat control (optional) as
shown in Figure 2. IMPORTANT! THERMO-
STAT MUST BE INSTALLED FOR SAFE
OPERATION.
or .5KVA 460V to 110V transformer must be
used to supply power for heater.
IMPORTANT! HEATER MUST BE INTER-
LOCKED WITH FAN FOR SAFE OPERATION.
