Page 7
7
Deluxe Centrifugal Heater
INSTALLATION
Electrical Installation (230v Fans)
1. Connect power cord to fan control box.
2. Make field connections of wires in fan box as
shown in Figure 1.

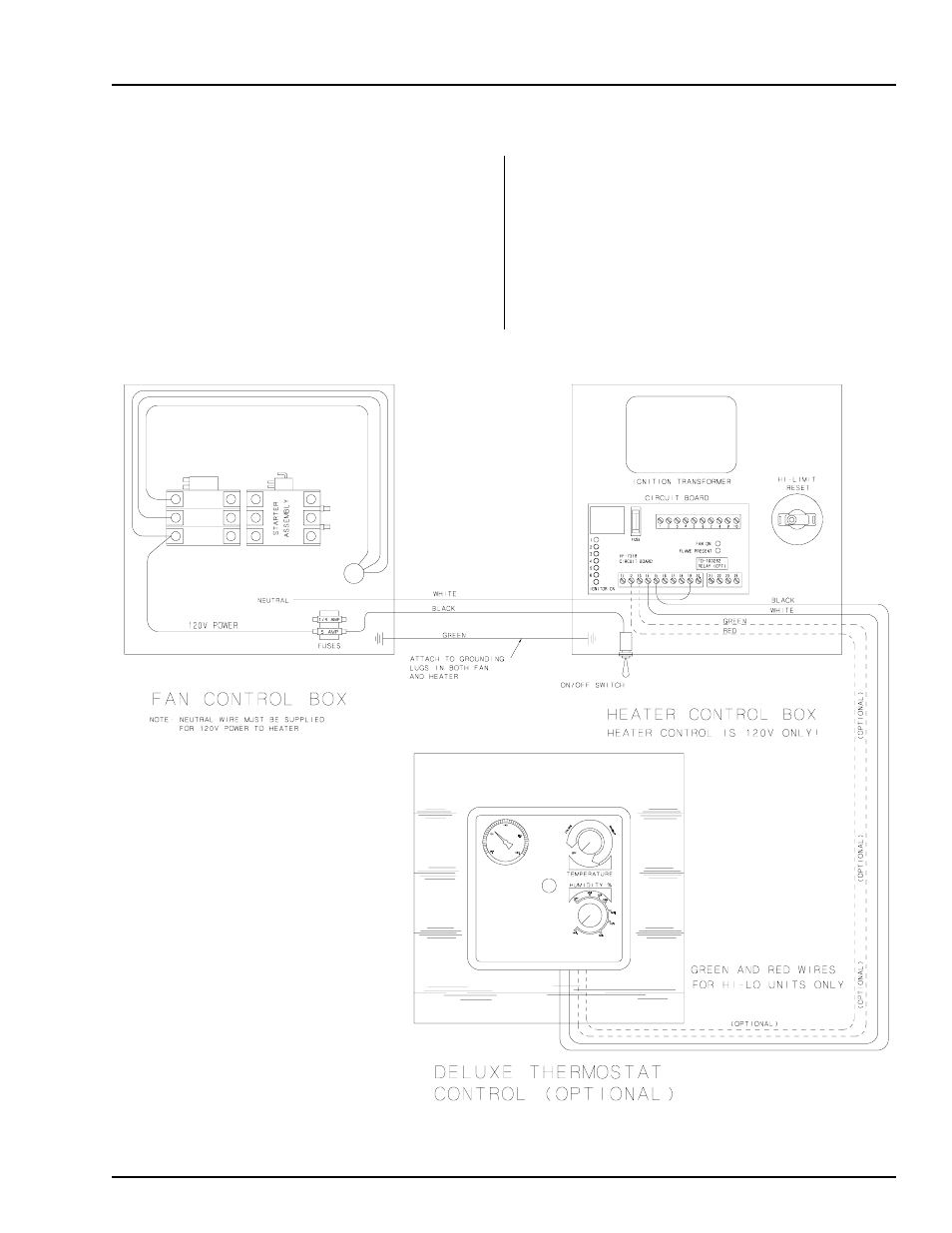

Figure 1: 230 volt fan control box.
IMPORTANT! THERMOSTAT MUST
BE INSTALLED FOR SAFE OPERATION.
IMPORTANT! HEATER MUST BE INTER-
LOCKED WITH FAN FOR SAFE OPERATION.
3. Connect deluxe thermostat control ( optional)
in heater box as shown in Figure 1.
