1200 Series Parts Manual
18
19
20
13
21
22
Lower rear access door (inside).
Upper rear access door (inside).
15
23
17
21
22
23
24
24

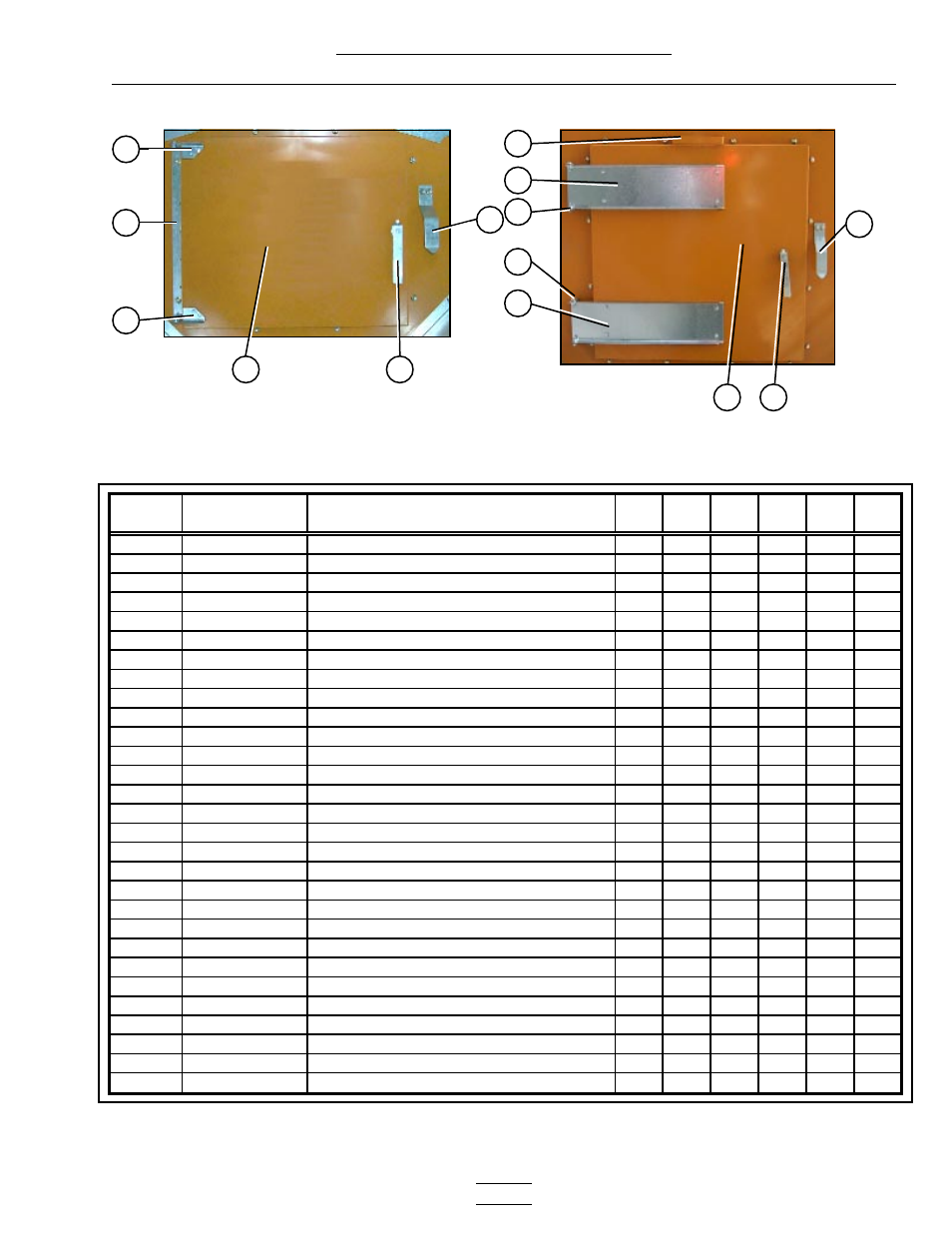

Front & Rear Plenum End Panels, & Upper & Lower Rear Access Doors
ITEM
NUMBER
PART NUMBER
DESCRIPTION
1214
1216
1218
1220
1222
1226
1
D31-0307
COLUMN END PANELS
4
4
4
4
4
4
2
D01-1801-Y
REAR END PANEL 40/60
1
1
1
1
1
1
3
D01-0044
TOP ANGLE BRKT FRONT & REAR
3
3
3
3
3
3
4
D81-0019
FRONT END PANEL 36 & 26"
1
1
1
4
D71-0021
FRONT END PANEL 40" & 28
1
4
D101-0020
FRONT END PANEL 42 & 28"
1
1
5
D51-0022
SUPPORT, CONTROL PANEL
5
5
5
5
5
5
6
D01-0778
DIAGONAL SUPPORT CHANNEL, 5'
2
2
2
2
2
2
7
D01-0029
HITCH WELDMENT
1
1
1
1
1
1
8
D31-0129
DIAGONAL SUPPORT ANGLE
2
2
2
2
2
2
9
D31-0293
LADDER ASSEMBLY (SEE PAGE 23)
2
2
2
2
2
2
10
D01-0395
SQUARE DOOR SIDE BRKT
2
2
2
2
2
2
11
D03-0512
DOOR HANDLE LOCKING
2
2
2
2
2
2
12
D01-0396
SQUARE DOOR TOP/BOTTOM BRKT
2
2
2
2
2
2
13
D01-0394
SQUARE REAR ACCESS DOOR
1
1
1
1
1
1
14
DC-973
DECAL, DANGER FIRE HAZARD
2
2
2
2
2
2
15
D01-1783-Y
ASSIST HANDLE, 29" SQ. DOOR
2
2
2
2
2
2
16
D01-1782-BLK FRAME ANGLE, 29" SQ. DOOR
4
4
4
4
4
4
17
D01-1781-Y
DOOR, 29" SQUARE
1
1
1
1
1
1
18
D31-0297
REAR DOOR HINGE, TOP
1
1
1
1
1
1
19
D31-0161
HINGE BRACKET
1
1
1
1
1
1
20
D31-0296
REAR DOOR HINGE, BOTTOM
1
1
1
1
1
1
21
D01-1792
LATCH BAR
2
2
2
2
2
2
22
D01-0397
LATCH BRACKET
2
2
2
2
2
2
23
401-4669-8
REAR ACC. DOOR HINGE, DOOR HALF
2
2
2
2
2
2
24
401-4630-0
HINGE BRACKET
2
2
2
2
2
2
25
D01-1510
ASPIRATOR END CAP
1
1
1
1
1
1
26
DC-974
DECAL DANGER FOOT IN AUGER
1
1
1
1
1
1
27
D01-0481-MS
REAR DISCHARGE BOX ASSEMBLY
1
1
1
1
1
1
