5. Installation
18
PNEG-588-04 Deluxe Downwind Heater Installation and Operation
Bin Configuration

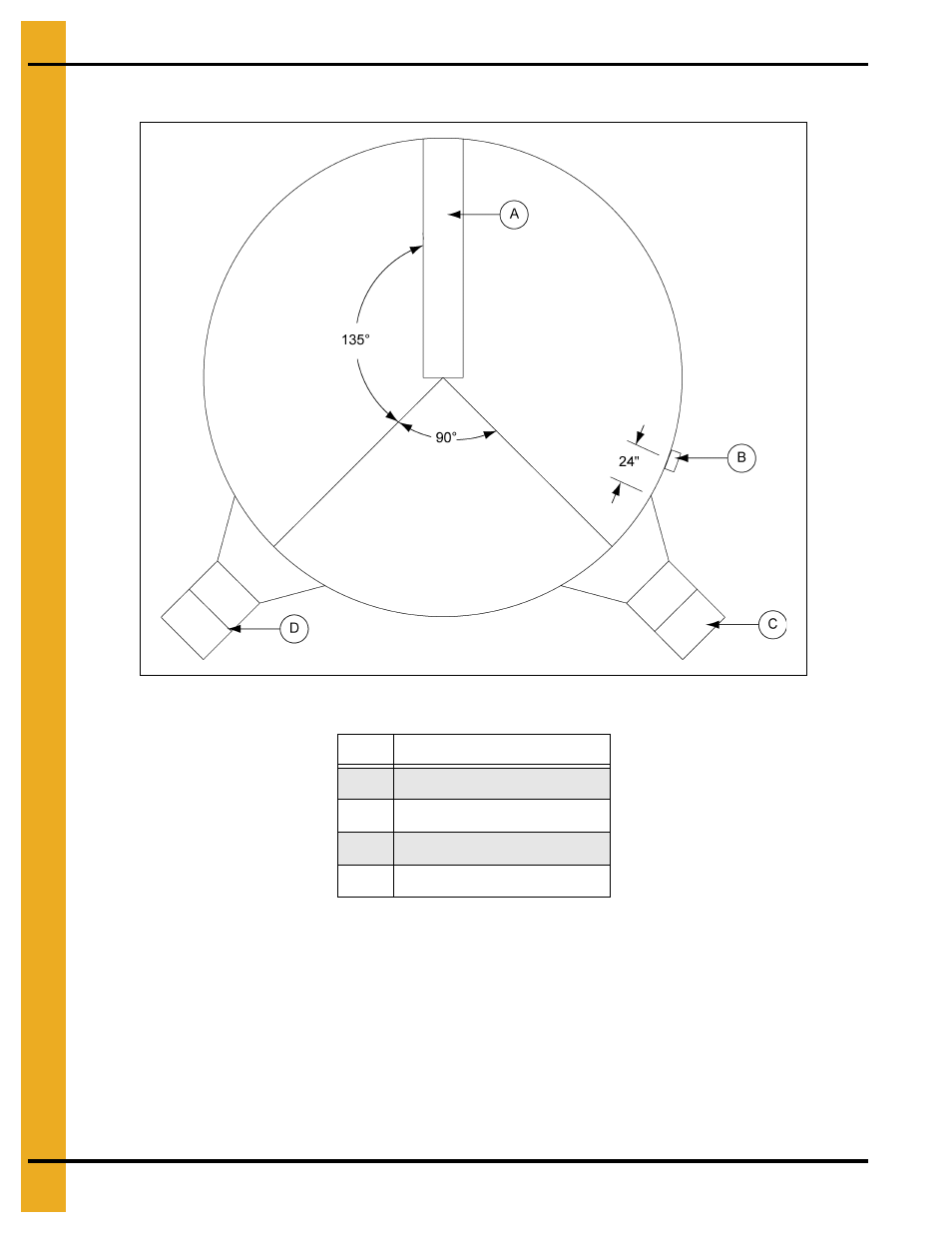

Figure 5G
IMPORTANT: When mounting two (2) heaters on a bin it is imperative that they be situated as shown in
. Plenum thermostat must be to the right of master heater and master heater must
be to the right of slave heater.
Ref #
Description
A
Unload Auger
B
Plenum Thermostat
C
Master Heater
D
Slave Heater
