14 PNEG-1722 Series II Sweep Protected Cord Slip Ring Sump

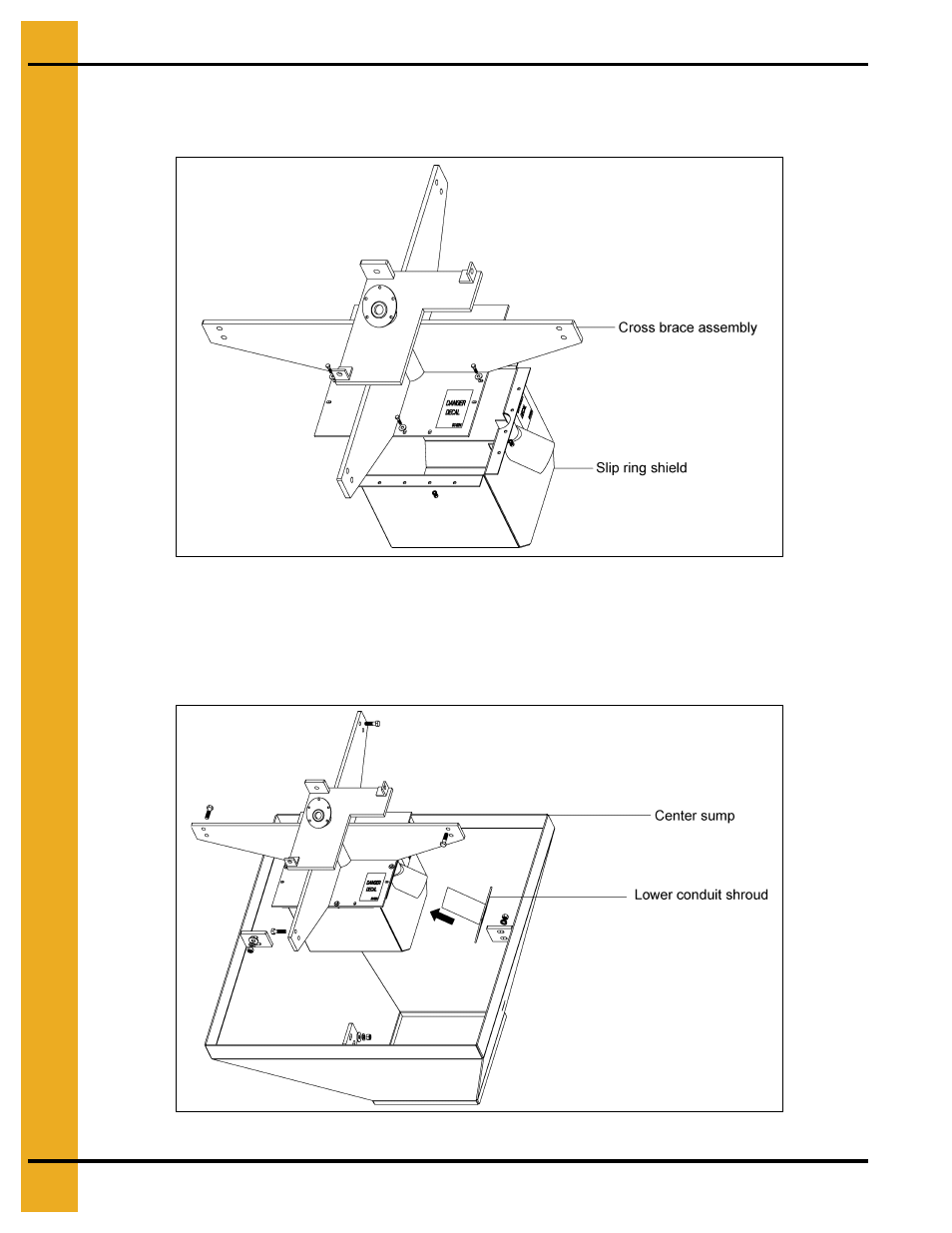

4. Assembly
1. Assemble the slip ring shield onto the cross brace assembly using four (4) 1/4" x 1" hex bolts and
nuts. Assemble one nut and bolt to each side of the collector ring shield. Do not tighten these at
this point.
(See Figure 4A.)
Figure 4A
2. As the sump should be installed into the floor, place the cross brace and slip ring shield into the
sump so that the lower conduit shroud exits on the side that is intended to accept the slip ring wiring.
As the assembly is placed into the sump, slide the lower shroud assembly onto the conduit shroud
tube of the slip ring shield.
(See Figure 4B.)
Figure 4B
