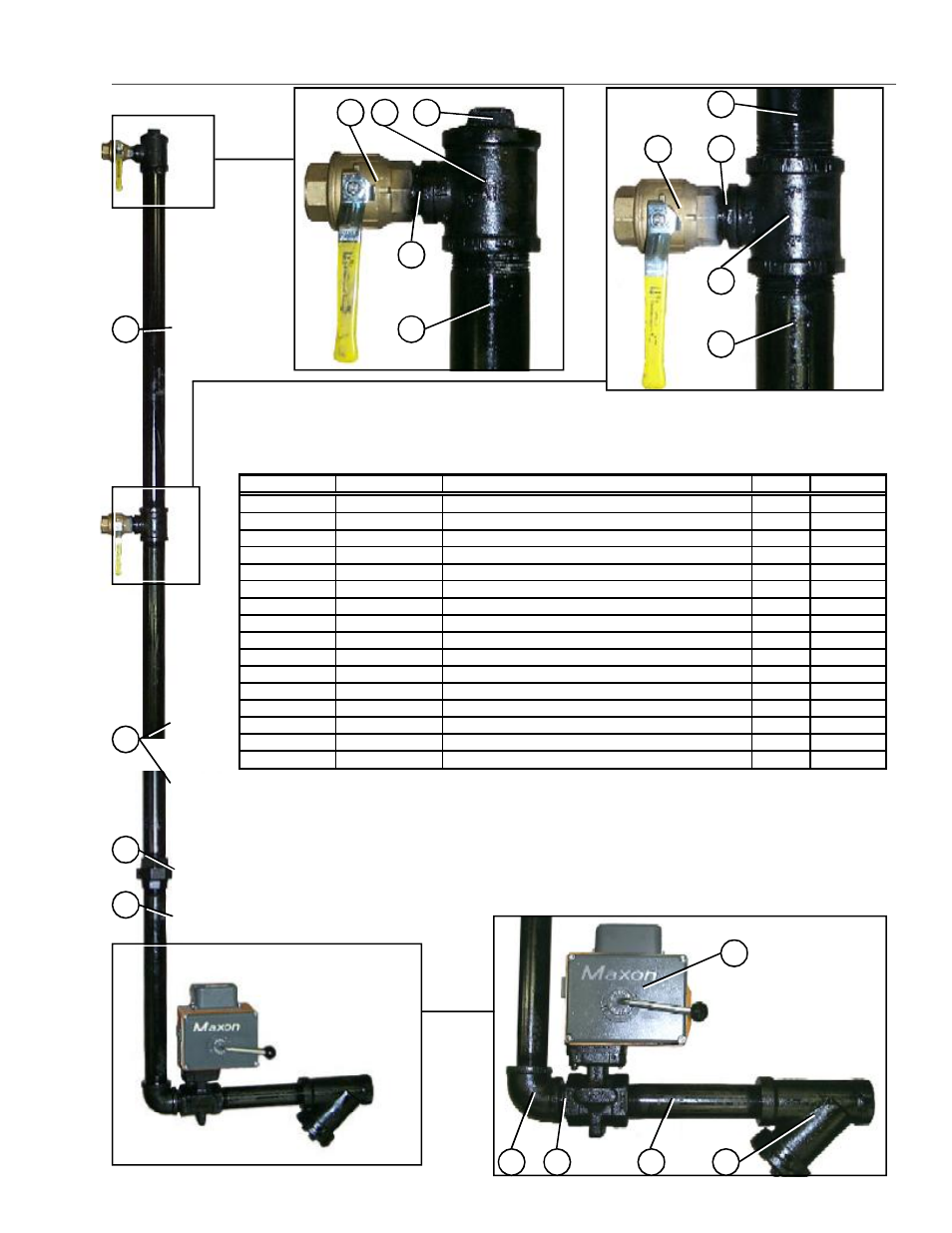

NG Supply Line
1
2
4
3
5 7 8
6
1
1
6 5
7
2
10 11 12 13
9
ITEM No. PART NUMBER DESCRIPTION 1214S 1218S-26S
1 D01-1013 NIPPLE 2 1/2" x 45" SCH 40 1 1
2 D01-1015 NIPPLE 2 1/2" x 34" SCH 40 1 1
3 D68-0016 NIPPLE 2 1/2" x 26" SCH 40 1 1
4 D68-0004 UNION 2 1/2" FEMALE SCH 40 1 1
5 D08-0023 VALVE 1" NPT B-COCK 2
5 D08-0008 VALVE 1 1/2" NPT B-COCK 2
6 THH-4117 NIPPLE 1" CLOSE SCH 40 2
6 D08-0009 NIPPLE 1 1/2" CLOSE SCH 40 2
7 HH-7087 TEE 2 1/2" x 2 1/2" x 1" SCH 40 2
7 D68-0002 TEE 2 1/2" x 2 1/2" x 1 1/2" SCH 40 2
8 D68-0010 PLUG 2 1/2 SQUARE SCH 40 1 1
9 D68-0015 VALVE 2 1/2" NPT ELECT SHUTOFF 1 1
10 D68-0014 ELBOW 2 1/2"-90 SCH 40 1 1
11 D68-0012 NIPPLE 2 1/2" x 4" SCH 40 1 1
12 D68-0018 NIPPLE 2 1/2" x 9" SCH 40 1 1
13 D68-0011 STRNR 2 1/2" Y SCH 40 1 1
