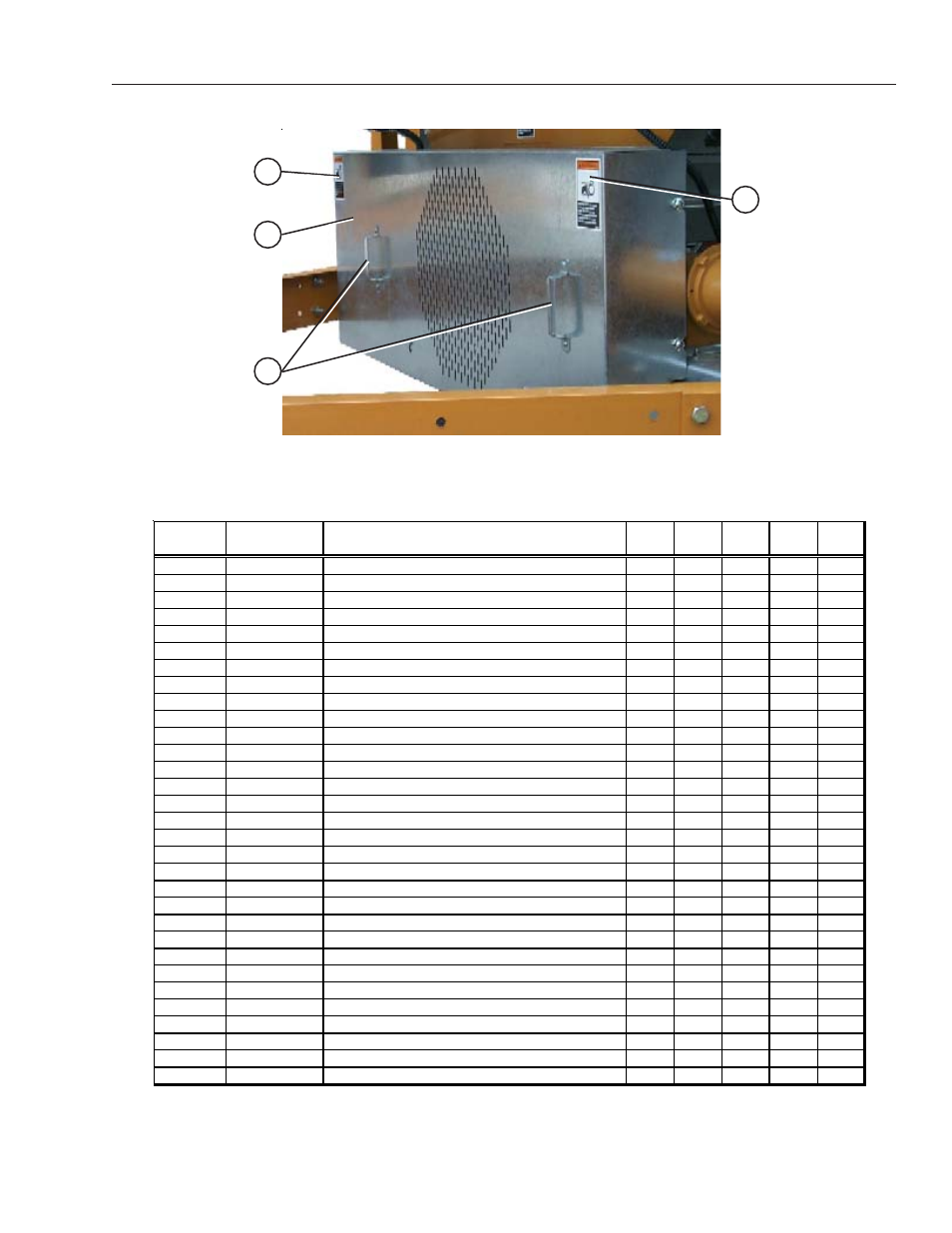

Bottom auger and metering roll drive guard.
19
20
21
22
Bottom Auger Drive
ITEM
NUMBER PA RT NUMBER DESCRIPTION 1214S 1218S 1220S 1222S 1226S
1 D01-1376 BOTTOM FRONT A NGLE BRA CKET 1 1 1 1 1
2 MHC00490 BELT-V BX82 2 2 2 2 2
3 2818-2 SHEA V E 2GR 3.35Dx 1 1/8" 1 1
3 D62-0003 SHEA V E 2GR 4.25Dx 1 3/8" 1 1 1
4 D01-0012 HITCH BRA CKET, RIGHT 1 1 1 1 1
5 D01-1373 BELTGUA RD, UNLOA D MOTOR SHROUD 1 1 1 1 1
6 D01-0029 HITCH WELDMENT 1 1 1 1 1
7 D01-0011 HITCH BRA CKET, LEFT 1 1 1 1 1
8 D01-2435 Front Bearing Plate 2008 1 1 1 1 1
9 D03-0304 SHEA V E 2GR 20" GRIPBELT 1 1 1 1 1
10 D32-0019 BUSHING Q1-1 1/2" SPLIT TA PER 1 1 1 1 1
11 D01-0065 SPA CER, BEA RING SHIELD 2 2 2 2 2
*12 D03-1109 MOTOR 5HP 1PH 1800RPM 1 1
12 500-3 MOTOR 5HP 3PH 1800RPM 1 1
*12 D03-1010 MOTOR 7.5HP 1PH 1800RPM 1
12 712-3 MOTOR 7.5HP 3PH 1800RPM 1 1
12 1000-3 MOTOR 10HP 3PH 1800RPM 1
13 D01-0081 MOTOR MOUNT - BOTTOM A UGER 1 1 1 1 1
14 D01-0008 FRONT & REA R FRA ME TIE CHA NNEL 4 4 4 6 6
15 D01-0007 CORNER LEG 6 6 6 8 8
16 D01-0017 MOTOR A DJUSTMENT BRA CKET 2 2 2 2 2
17 D21-0011 FRA ME RA IL, 14' R.H. 1
17 D31-0044 FRA ME RA IL, 18' R.H. 1
17 D61-0002 FRA ME RA IL, 20' R.H. 1
17 D101-0002 FRA ME RA IL, 22' R.H. 1
17 D71-0002 FRA ME RA IL, 26' R.H. 1
18 D01-0016 MOTOR MOUNT SUPPORT BRA CKET 1 1 1 1 1
19 D01-1372 BELTGUA RD, UNLOA D FRONT SHIELD 1 1 1 1 1
20 PR-331 PEA K CA P HA NDLE 2 2 2 2 2
21 DC-971 DECA L, BELT DRIV E WA RNING 2 2 2 2 2
22 DC-972 DECA L, CHA IN WA RNING 2 2 2 2 2
*ITEM 12, PART Nos D03-1109 & D03-1010 ARE SINGLE PHASE M OTORS
