Flame Probe, Ignitor, Vaporizer Coil, and Burner Assemblies

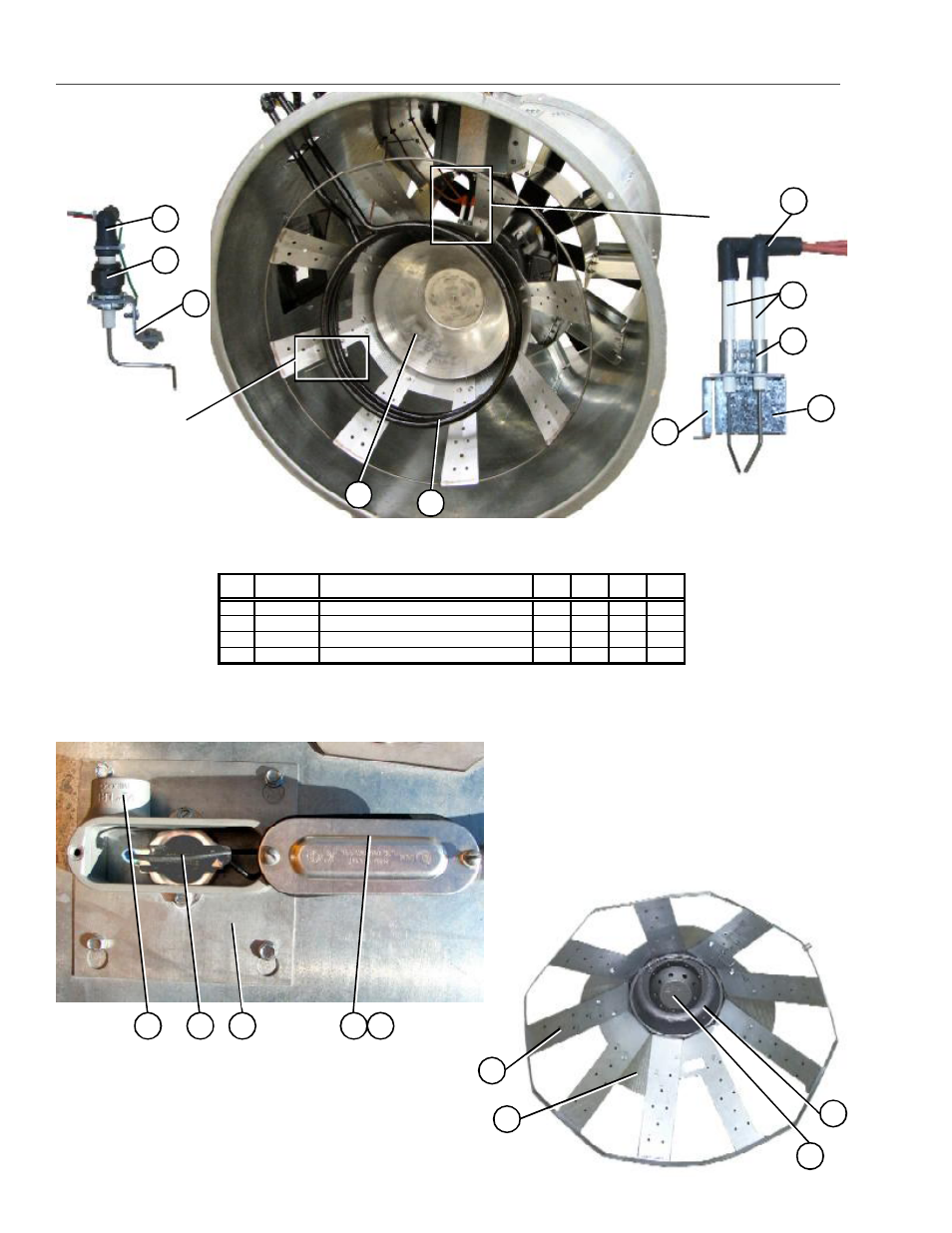

28” Fan heater burner assembly.
16
19
17
18
Flame probe
1
2
3
8
7
6
5
4
Items 9 and 10 are used in LP Fan/Heaters only.
9
10
Ignitor
11 12 13 14 15
Burner housing high limit switch.
ITEM PART No. DESCRIPTION 2812 3612 3615 4025
10 CD-0414 VAPORIZOR COIL 26 28" 3 WRAP 1
10 HF-7207 VAPORIZER COIL 36-42"10-17HP 1 1
10 HF-7251 VAPORIZER 3/4" 3 WRAP 36-42" 1
10 HF-7319 VAPOR COIL (SPIRAL) 42" 40HP
