Chapter 2: Dryer Supports

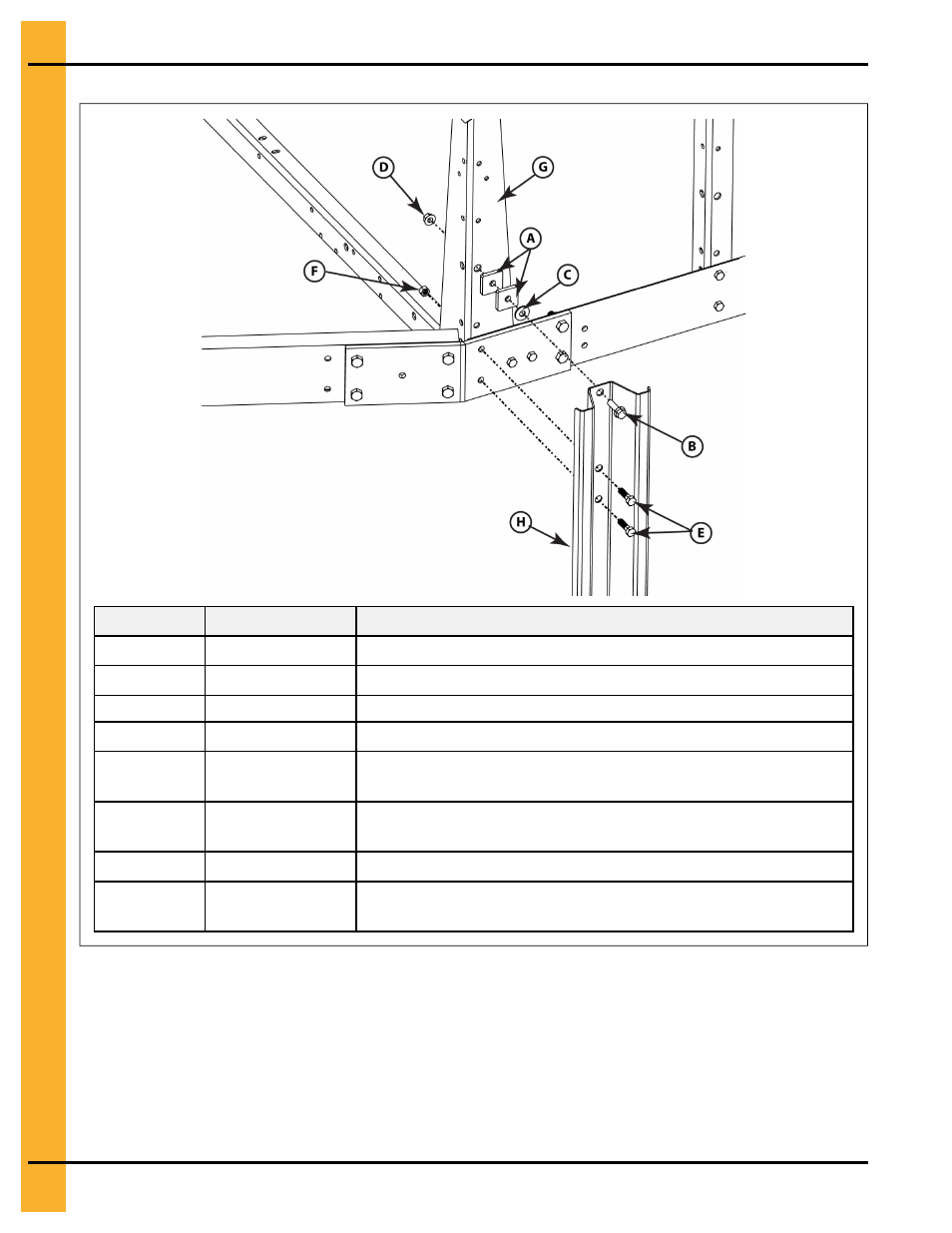

Figure 2-5 Installing a leg stand to the dryer basket corner
Callout Part number Description
A D01–1221 Shim dryer stand to dryer
B S-8856 0.50 in. - 13 X 1.75 in. zinc grade 5 flange bolt
C S-2121 0.50 in. x 1.375 in.flat washer
D S-8506 0.50 in. - 13 zinc flange nut
E S-3883 Original bolts installed on dryer (0.50 in. - 13 X 1.75 in.zinc
grade 8 HHCS bolt)
F S-6493 Original nuts installed on dryer (0.50 in. - 13 zinc grade 2
deformed lock nut)
G D01–0007 Basket corner leg
H D01–xxxx For leg stand, refer to Guidelines for Supporting the Dryer with
Leg Stands, page 9
Installing a Leg Stand Along the Dryer’s Frame
If not using concrete blocks, you must install leg stands to the dryer frame to support the dryer.
1. Remove the two bolts and nuts from the dryer frame at the location where the leg stand is to be
installed (A and B).
