Leg stand spacing – Grain Systems PNEG-546 User Manual
Page 10

Leg Stand Spacing
Correct leg spacing is important to adequately support the dryer during operation. Incorrect spacing might
result in unstable operating conditions.
Leg Spacing for Standard Dryers
Starting at the back corner of the dryer (A), space legs 4 ft (1.22 m) apart and move towards the front (B).
Spacing between the front legs (C) can be 2 ft (0.61 m) or 4 ft (1.22 m), depending on the length of the
dryer.

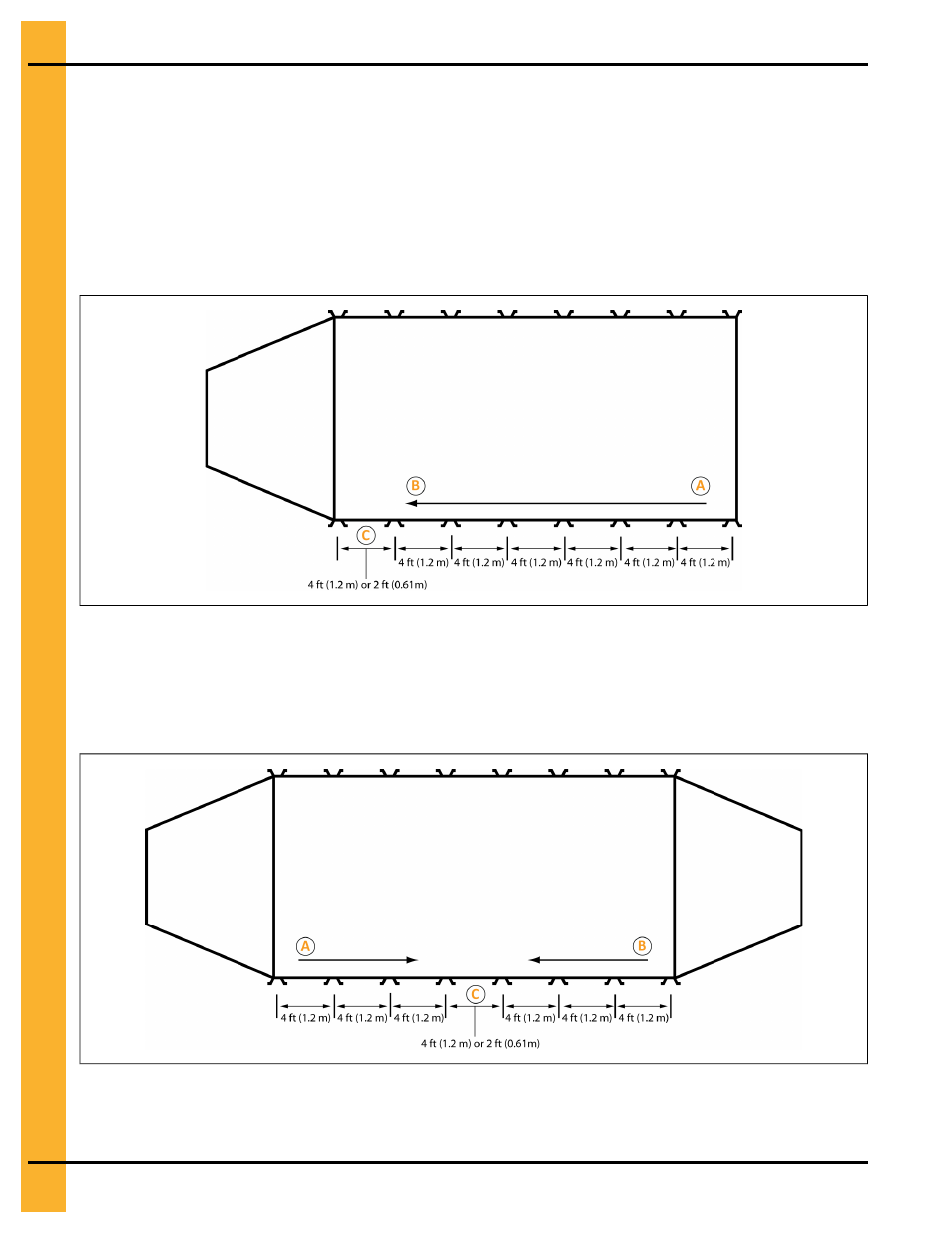

Figure 2-2 Leg spacing on a standard dryer
Leg Spacing for X-Stream Dryers
Starting at both the front and back ends of the dryer (A and B), space legs 4 ft (1.22 m) apart working
towards the center of the dryer. Spacing between center legs (C) can be 2 ft (0.61 m) or 4 ft (1.22 m),
depending on the length of the dryer.
Figure 2-3 Leg spacing on an X-Stream dryer
NOTE: The number of dryer legs varies depending on the length of the dryer.
