Chapter 1 Top Dry Air Box Assembly
Install Sliding Access Door
The top dry air box sliding door allows access to the inside of the air box to easily remove the inner tube.

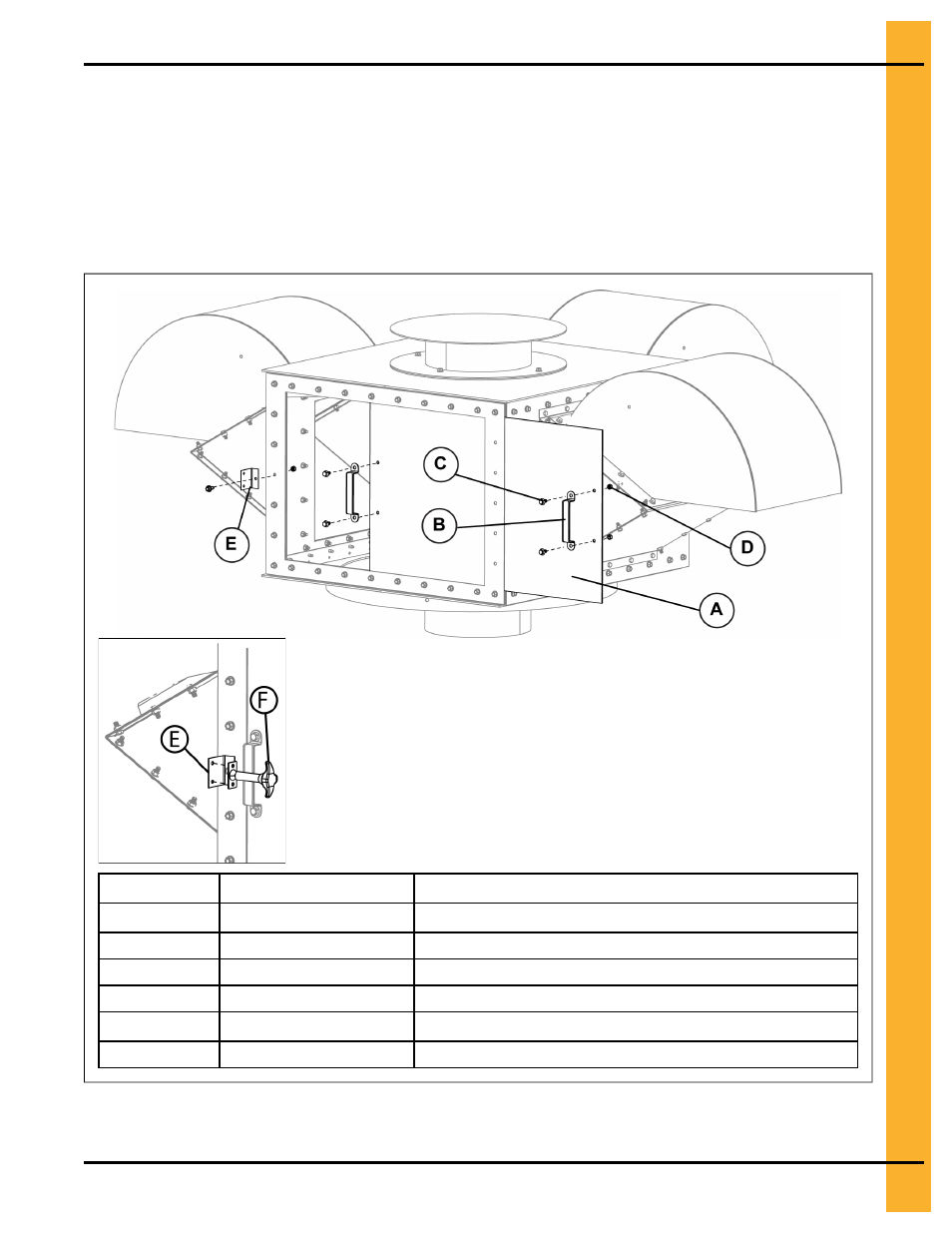

1. Slide access door (A) into opening on side of door frame.
2. Attach handles (B) to door using bolts (C) and nuts (D).
3. Install latch bracket (E) to air box side panel next to handle.
4. Install the latch (F) to the latch bracket (E).
Callout Part Number Description
A TD-101320 Air Box Sliding Door
B PR-331 Handle
C S-275 5/16”-18 X 3/4” YDP Grade 5 Bin Bolt
D S-396 5/16”-18 YDP Grade 2 Hex Nut
E TD-101321 Air Box Sliding Door Latch Bracket
F CRP-4654 Latch
