7.1 FOR AC POWERED OPERATION:
a. Remove the cover from sensor control box by using phillips
screwdriver. Take the rubber grommet with one hole out of the box.
Note: the "ON-OFF" switch should be turned to OFF (O) position
during installation.

b. Connect sensor lead from spout to sensor connection in box. Insert sensor
lead wire into the rubber grommet with one hole. Locate grommet between sensor
and connection. Reinstall it to the lower slot. Connect power supply wire from AC
adapter to power connection in box. Then install rubber grommet onto the upper
slot (all connections should be placed inside the box before replacing the lid).

c. Arrange the wires and connection in the sensor control box and reinstall
the cover. Plug AC adaptor to power supply (110VAC).

INSTALL SENSOR CONTROL BOX UNDER SINK:
Before installing the sensor control box, keep the following in mind: ensure it is
accessible so that it is not too difficult to turn it on/off, adjust the temperature and
change the battery. Verify that any shelving garbage can holders mounted on the
inside of doors, or other cupboard hardware will not interfere with the unit.

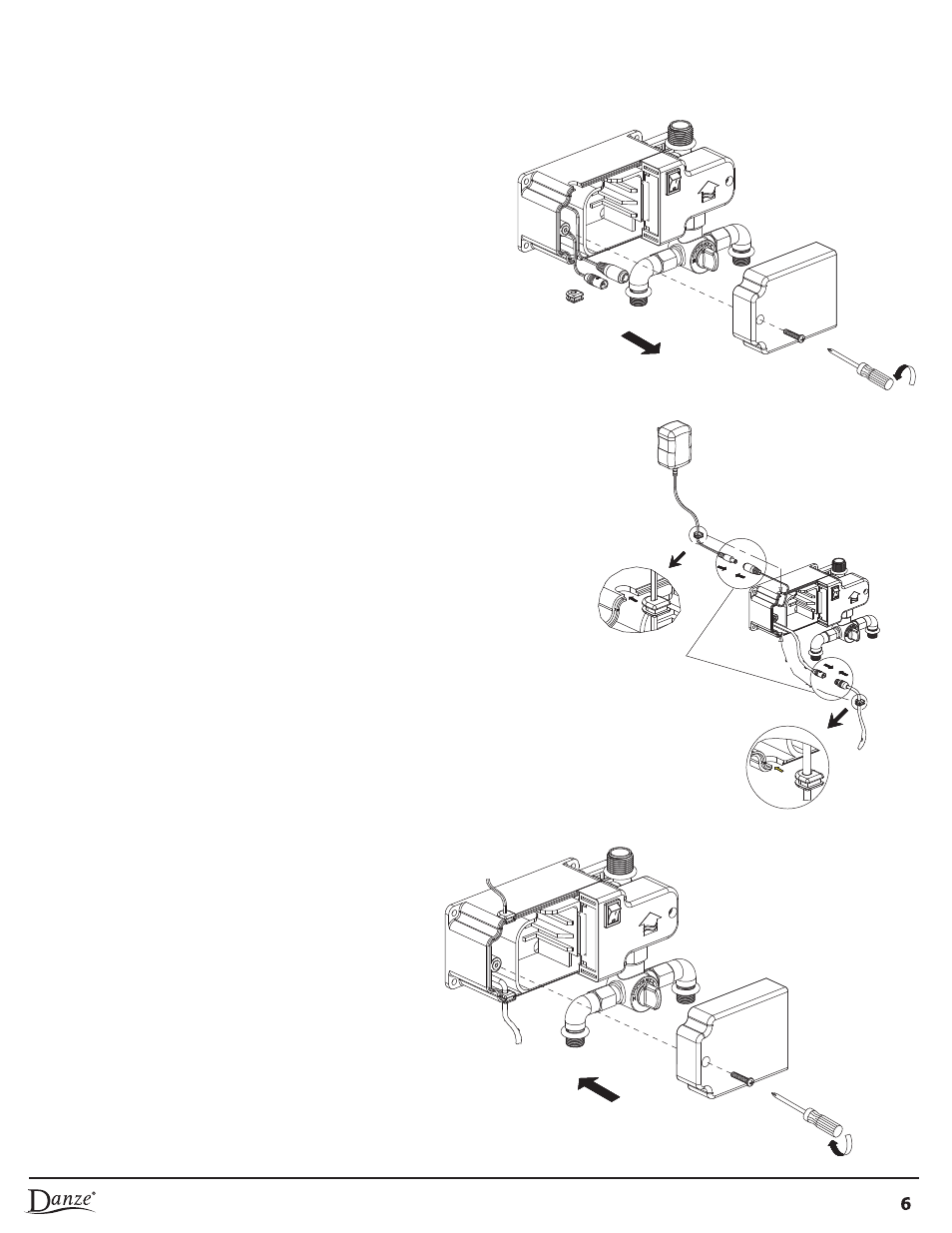

7.1.a

7.1.b

7.1.c

Be sure to place wire
joints inside the box before
closing.
