Banks Power Ford Trucks: (Diesel ’94 - 97 7.3L Power Stroke) Power Systems- PowerPack, Stinger-Plus & Stinger '94-98 4

end tanks clear the support. trim
additional material if required to
provide 1 ⁄ 8 -inch minimum clearance
on each end tank.
35.
reinstall the grille opening
support panel onto the front of the
truck using the original hardware.
Place the turn signal and marker light
bulbs through the proper holes.
36.
reinstall the valance panel onto
the front of the vehicle with the
plastic clips and the original bolts.
CAUTION: When reinstalling the
screw that attaches the bottom
of the grille support to the center
of the valance panel, make
sure that the end of the screw
does not protrude through the
assembly to the extent that it
could come into contact with and
puncture a tube in the intercooler
core. There should be a minimum
of 1 ⁄ 4 -inch clearance between
the end of the screw and the
intercooler core. If necessary,
shorten the screw.
37.
Reinstall the headlight bezels.
Be sure that the lights are in the
correct locations. If in doubt, turn on
the hazard flashers. The turn signals
will be the flashing ones.
38.
reinstall the grille against
the grille support with the original
hardware. reinstall the front bumper
onto the stud plates and tighten the
nuts. once again, check the tightness
of all hose clamps to ensure the
integrity of the hose connections at
high boost levels.
-EnD, SEcTIon 4-

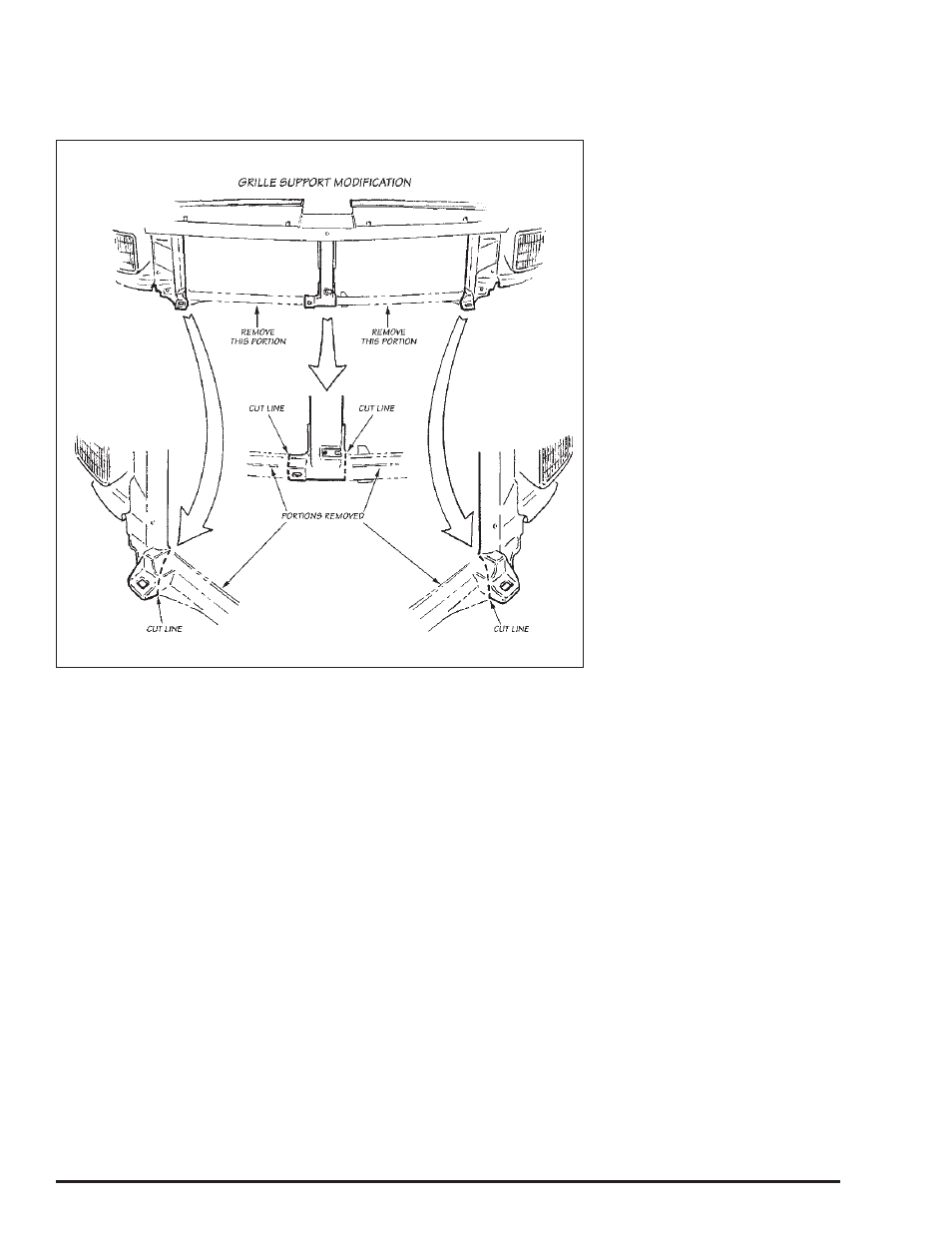

Figure 14
96493 v.4.0
15
