Page 13

Press the “REFRESH” button to update your chosen matrix settings into the left hand display and your
selection to take effect.

B The lower section of the NETCTL controller screen is dedicated to IR Matrix settings.As with the IR Matrix
screen in COMCTL, the NTCTL IR Matrix allows specific SOURCE IR ports to be manually set to individual
DISPLAY ports to configure specific IR configurations through the matrix.
Press the “REFRESH” for IR Matrix changes to be set.
This function is available only when the matrix is connected to receivers via UTP and all units fully powered.

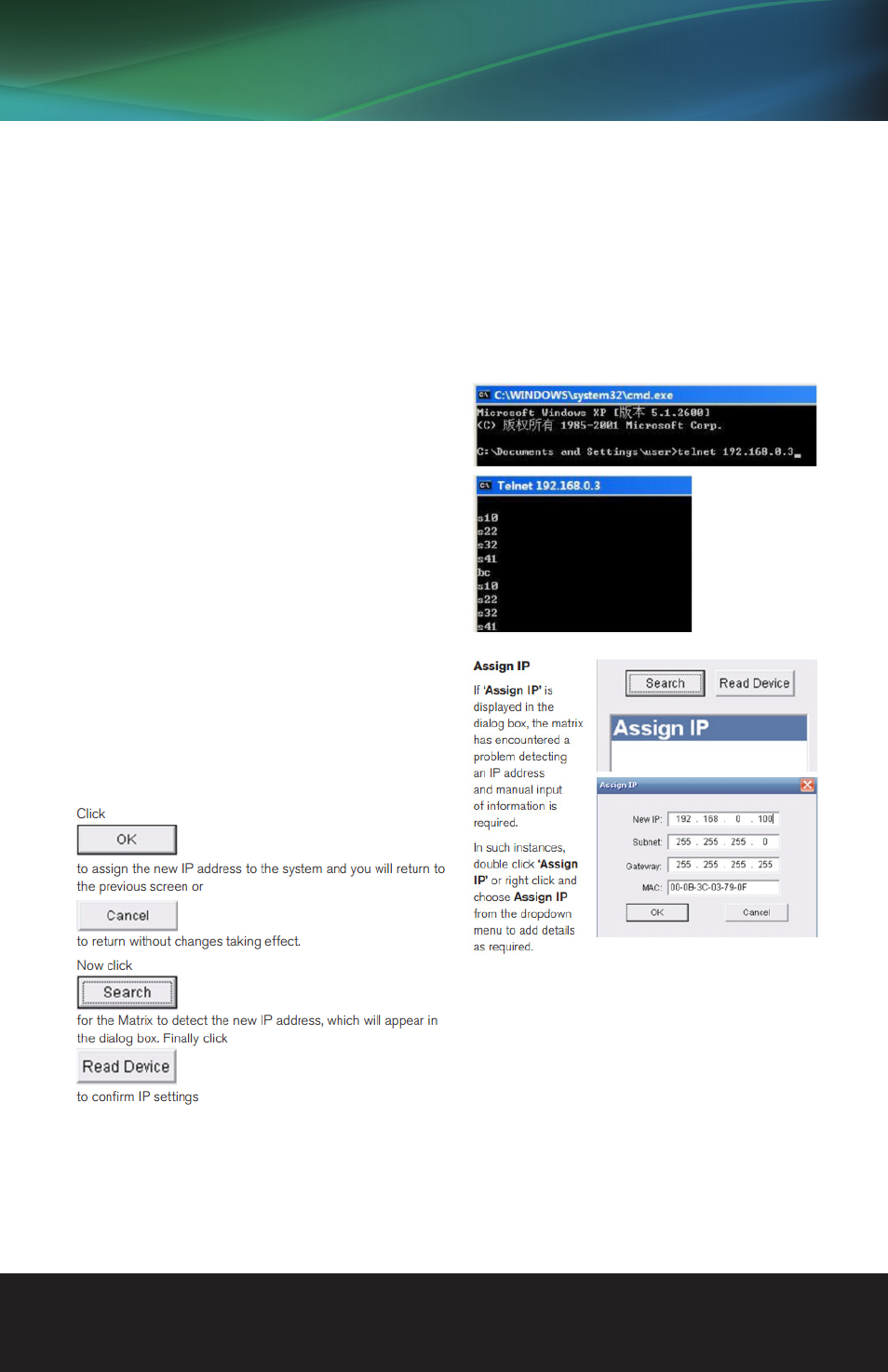

TELNET Control
Control of matrix switching and system settings are also
possible using Telnet control protocols. Follow system
commands below.

ATTENTION This ‘Assign IP’ process differs from the
COM CTL ‘IP Set’ function.
‘Set IP’ in COMCTL saves/reads the IP address in flash
and sets it as static IP. ‘Assign IP’ is only used when the
system fails to obtain an IP address automatically and is
NOT saved in flash.
