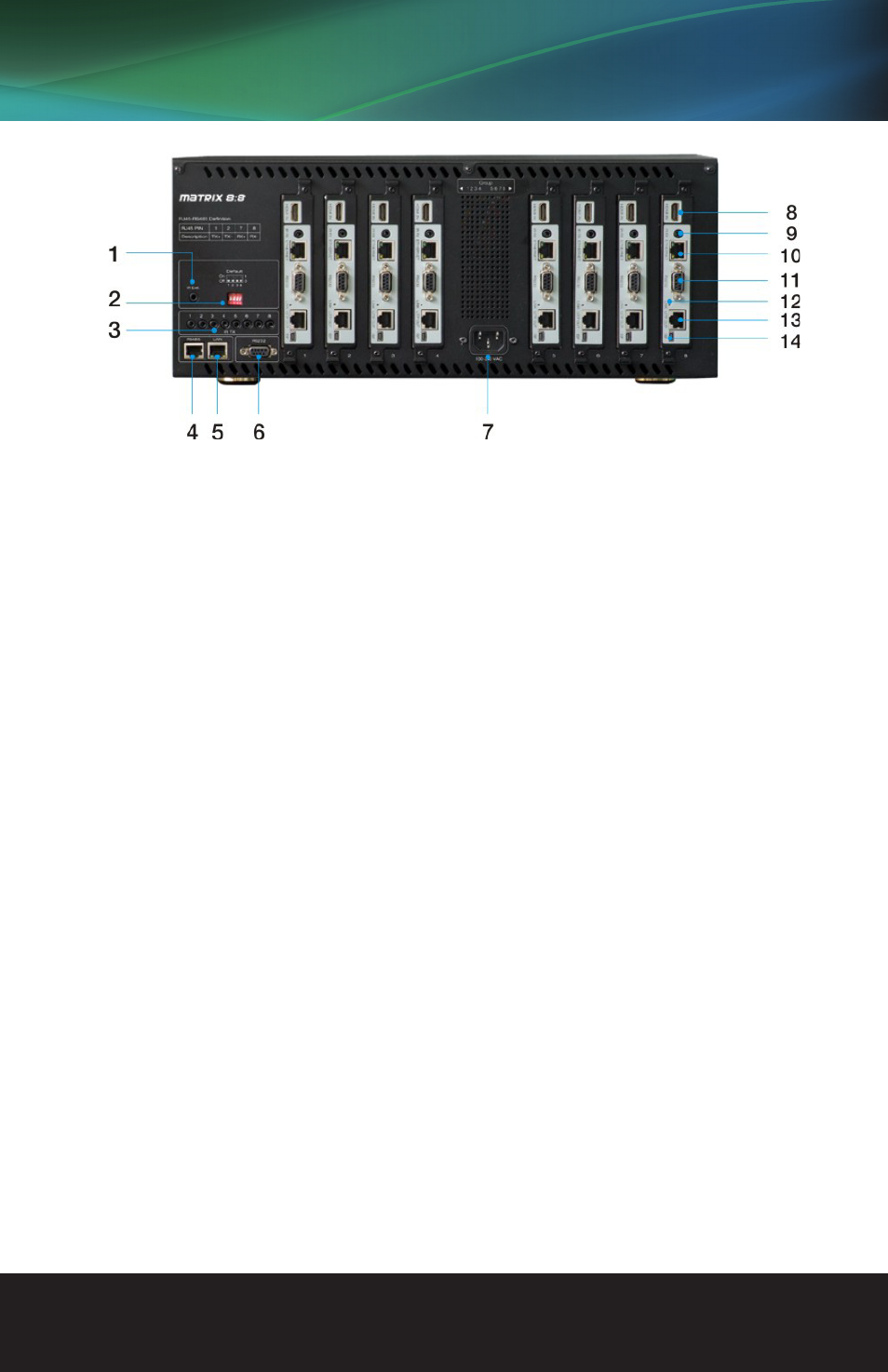

BACK PANEL
1. IR extension.
2. DIP for matrix setting.
3. IR emitter, corresponding to the Input port from
1 to 8
4. RS-485 port.
5. LAN port.
6. RS-232 port.
7. Power input.
8. HDMI IN.
9. IR RX, works with Vanco 280791 Receiver.
10. Ethernet port, works with Vanco 280791
Receiver.
11. RS-232 port, works with Vanco 280791
Receiver.
12. Status of Link, when UTP cable connected, the
led inside lights.
13. UTP OUT, connect to UTP IN.
14. ISP port for update.
NOTE: RS-232 port and LAN port are for matrix
control. The LAN port is connected to the computer
via cross-over UTP and connected to the router or
switcher via direct UTP.
CONNECT AND OPERATE
1. Connect the HDMI input source (such as HD-
DVD/ PS3 /STB etc.) into the Matrix.
2. Connect UTP OUT of the Matrix to the UTP IN of
the Receiver.
3. Connect the HDMI OUT of the Receiver to the
display equipment (such as : HD-LCD, HD-DLP)
4. Connect the Broadband IR receive cable into the
Receiver IR RX port.
5. Connect the IR emitter cables into the Matrix IR
emitter ports
6. Power on the input source you want to show.
(Keep the unused input power off, otherwise it
may interfere with the normal display).
7. Plug the power cable into Matrix.
8. Turn on power switch; the Matrix is ready when
Touch Panel shows the settings screen.
9. Turn on the displays that you want to watch.
10. Use the remote to control the Matrix, or use the
Touch Panel, RS-232, RS-485 and LAN port to
control.
