Outport5 <“48” >“49”
1“40” 2“41” 3“42” 4“43” 5“44” 6“45” 7“46” 8“47”
Outport6 < “58” > “59”
1 “50” 2 “51” 3“52” 4 “53” 5“54” 6“55” 7“56” 8“57”
Outport7 < “68” > “69”
1 “60” 2 “61” 3“62” 4 “63” 5“64” 6“65” 7“66” 8“67”
Outport8 < “78” > “79”
1 “70” 2 “71” 3 “72” 4 “73” 5“74” 6“75” 7“76” 8“77”

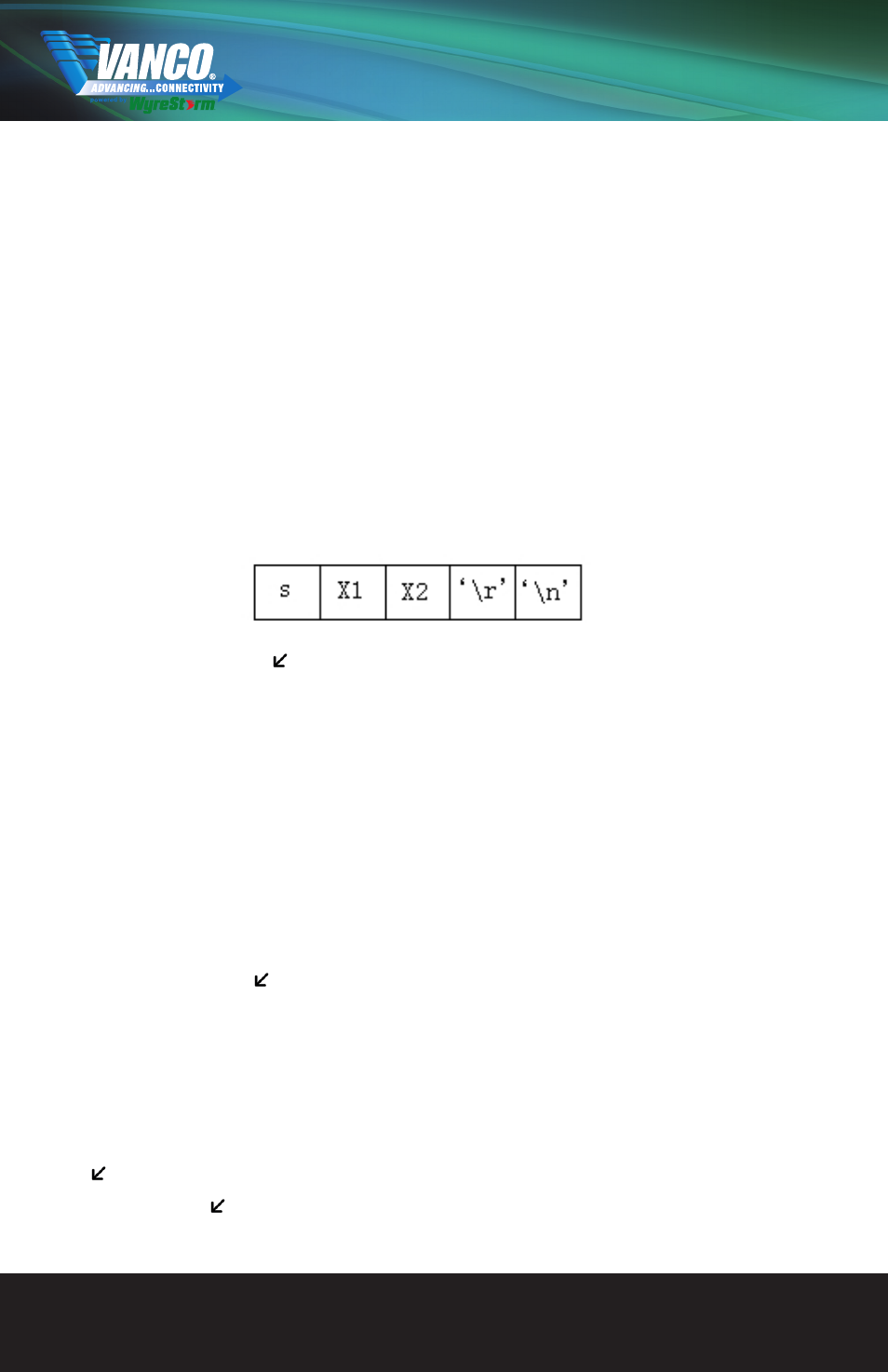

When you send a control command to the MX0808, if succeed, it will feedback current output port status to
show which input port is selected. The return status format is as follows:
For example, if you send “cir 44 ” to MX0808,if succeeds, it will feedback “s55\r\n”, meanings Output5
selects Input5.
6. Read Status Command
The command length is 4 bytes.
bc + ‘_’ + ‘__’
“bc” is the key word, ‘_’ is Space, ‘__’ is carriage return.
When you send the read status command to the Matrix, if it succeeds, it will feedback the status of all
outputs. When you send “Bc” to the Matrix, if it succeeds, it will feedback the current status of the Matrix.
For example, if you send “bc ” to the Matrix, if it succeeds, it will feedback “s11\r\n” ,”s22\r\n” ,”s33\r\n”
,”s44\r\n” ,”s55\r\n” ,”s66\r\n” ,”s77\r\n” ,”s88\r\n” . It means that the output 1 select the input 1, the output
2 selects the input 2, output 3 selects the input 3, output 4 selects the input 4, output 5 selects input 5, the
output 6 selects the input 6, the output 7 selects the input 7, and the output 8 selects the input 8.
7) Web password reset
The command length is 4 bytes.
rpw+ ‘ ’
“rpw” is the key word , ‘ ’ is carriage return.
When you send the Web password reset command to MX0808, if succeed, it will feedback “rpw”, and the web
password will be set as “0000000000”.
