3. Setting up the Scoreboard
 Supply power to the board by connecting the PSU with the power input (see fig. 1). Plug the PSU into the
mains.
 Turn on the scoreboard with the ON/OFF switch. It takes a few moments for the board to initialize.
 Press GAME SELECT once. The timer & score mode LED blinks.
 Press CLEAR. Next, set the desired timer with M+1/M-1 and S+1/S-1, and set the shot clock with S+1/S-1
under the shot clock panel.
 Press the timer START/STOP button to start the timer and the shot clock, and let it run for a few seconds.
Press the timer START/STOP button again.
 Press RESET TIMER and RESET SHOT CLOCK. The display will show the last memorized data.
 Press GAME SELECT to exit the setup mode.
4. Operation
A. TIMER & SCORER (basketball, handball, karate, wrestling)
This game mode displays the remaining game time and the score.
Upper display: game time (max. 99:59)
Lower display: score (max. 199)
Countdown Game Timer
Operation
Key
Display Buzzer
Timer Shot Clock

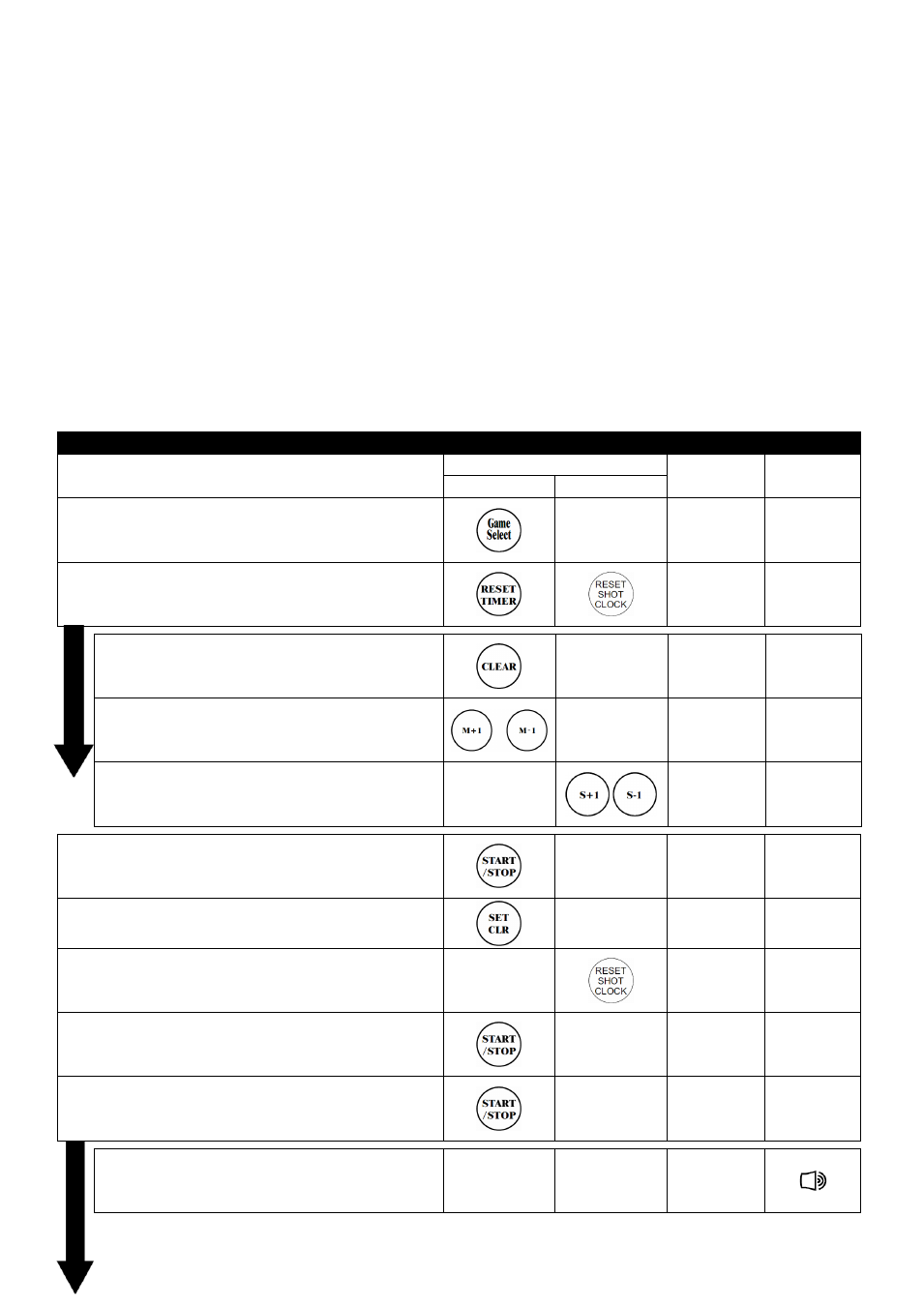

1. Select game
0:00
0 0
2. Recall last memory
20:00
0 0
3. Erase previous settings
0:00
0 0
4. Set game time (e.g. 20 min)
20:00
0 0
5. Set shot clock
20:00
0 0
6. Shot clock time is memorized
19:59
0 0
7. Set period 1234
●●●●
8. Shot hits rim
19:58
0 0
9. Game interrupted
19:50
0 0
10. Restart game & shot clock starts
19:49
0 0
10.1. 30 seconds expire
19:28
0 0
